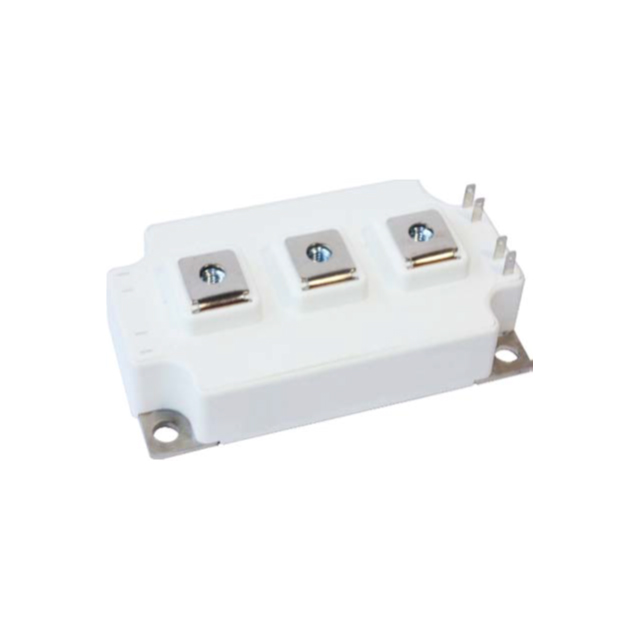

GSID150A120S3B1

Obsolete

SemiQ

IGBT MODULE 1200V 300A 940W D3

Search across all available documentation for this part.

Obsolete

SemiQ

IGBT MODULE 1200V 300A 940W D3

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GSID150A120S3B1	GSID150 Series

Configuration	2 Independent	2 Independent, Three Phase Inverter
Current - Collector (Ic) (Max)	-	285 A
Current - Collector Cutoff (Max) [Max]	1 mA	1 mA
Input	Standard	Standard
Input Capacitance (Cies) @ Vce	14 nF	14 - 21.2 nF
Mounting Type	Chassis Mount	Chassis Mount
NTC Thermistor	False	False, True
Operating Temperature	-	150 °C
Operating Temperature	-	-40 °C
Package / Case	D-3 Module	D-3 Module, Module
Power - Max [Max]	940 W	940 - 1087 W
Supplier Device Package	D3	D3, Module
Vce(on) (Max) @ Vge, Ic	2 V	2 - 2.1 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V	1200 V

IGBT MODULE 1200V 300A 940W D3

Part	Mounting Type	Input	Package / Case	Power - Max [Max]	NTC Thermistor	Input Capacitance (Cies) @ Vce	Configuration	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	Current - Collector Cutoff (Max) [Max]	Vce(on) (Max) @ Vge, Ic	Operating Temperature [Max]	Operating Temperature [Min]	Current - Collector (Ic) (Max) [Max]
SemiQ GSID150A120S3B1	Chassis Mount	Standard	D-3 Module	940 W		14 nF	2 Independent	1200 V	D3	1 mA	2 V
SemiQ GSID150A120S5C1	Chassis Mount	Standard	Module	1087 W		21.2 nF	Three Phase Inverter	1200 V	Module	1 mA	2.1 V	150 °C	-40 °C	285 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGBT Module 2 Independent 1200 V 300 A 940 W Chassis Mount D3

Technical documentation and resources

No documents available
