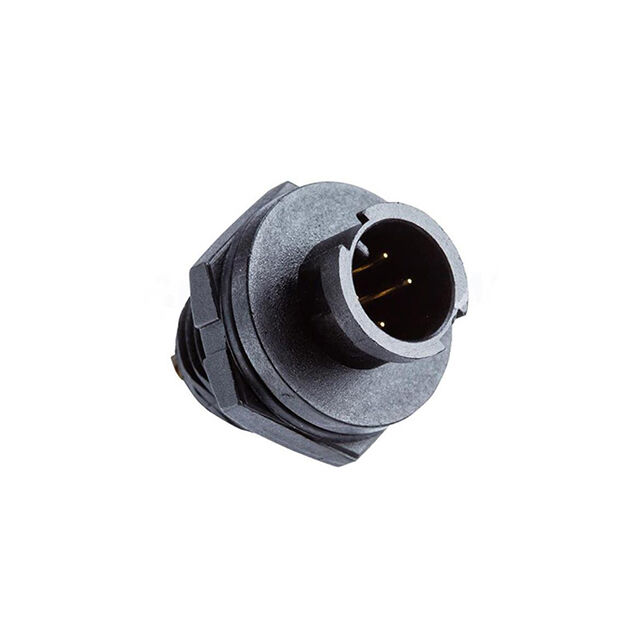

AU-06RMMS-LC7001
ActiveAmphenol LTW
CIRCULAR CONNECTOR, MINI (A) SERIES, PANEL MOUNT PLUG, 6 CONTACTS
Deep-Dive with AI
Search across all available documentation for this part.
AU-06RMMS-LC7001
ActiveAmphenol LTW
CIRCULAR CONNECTOR, MINI (A) SERIES, PANEL MOUNT PLUG, 6 CONTACTS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AU-06RMMS-LC7001 |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 2 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 6 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shell Size - Insert | A |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
AU-06RMMS Series
6 Position Circular Connector Receptacle, Male Pins Solder
