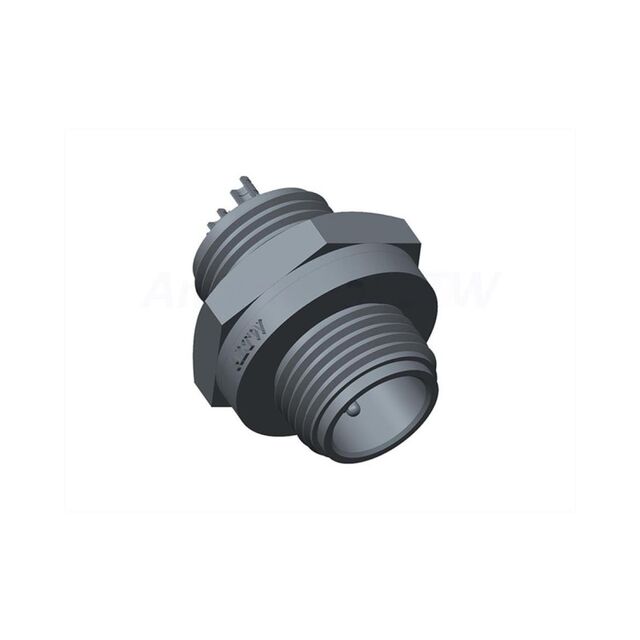

AU-06RMMS-SC7001

Active

Amphenol LTW

CERES, MINI SIZE, 2A, 06 PINS, R

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, MINI SIZE, 2A, 06 PINS, R

Technical Specifications

Parameters and characteristics for this part

Specification	AU-06RMMS-SC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Rear Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	A
Shielding	Unshielded
Termination	Solder
Voltage Rating	250 VDC

Part	Mounting Type	Voltage Rating	Primary Material	Shielding	Shell Size - Insert	Mounting Feature	Termination	Contact Material	Color	Shell Material	Number of Positions	Insert Material	Current Rating (Amps)	Contact Finish - Mating	Ingress Protection	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation
Amphenol LTW AU-06RMMS-SC7001	Panel Mount Through Hole	250 VDC	Plastic	Unshielded	A	Bulkhead - Rear Side Nut	Solder	Copper Alloy	Black	Glass Filled Nylon Polyamide (PA)	6	Polyamide (PA) Nylon Glass Filled	2 A	Gold	IP67 - Dust Tight Waterproof	Male Pins Receptacle	-40 °C	105 ░C	Keyed
Amphenol LTW AU-06RMMS-LC7001	Panel Mount Through Hole	250 VDC	Plastic	Unshielded	A	Bulkhead - Rear Side Nut	Solder	Copper Alloy	Black	Glass Filled Nylon Polyamide (PA)	6	Polyamide (PA) Nylon Glass Filled	2 A	Gold	IP67 - Dust Tight Waterproof	Male Pins Receptacle	-40 °C	105 ░C	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Male Pins Solder
