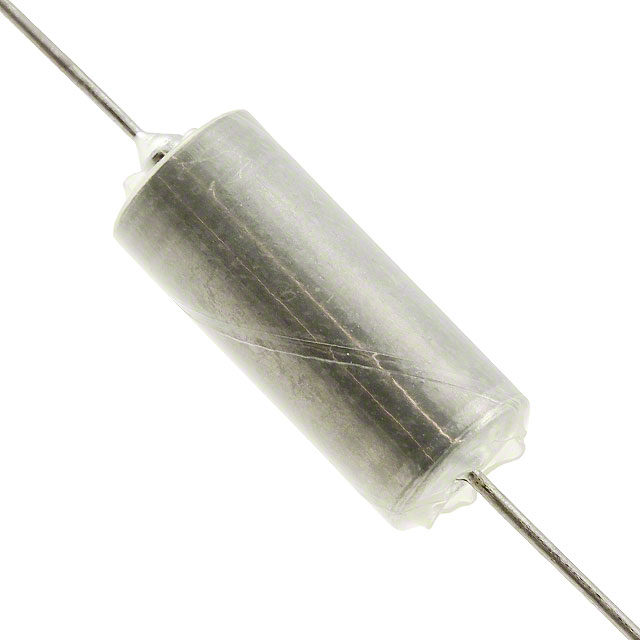

T110D566J020AS

Active

KEMET

56.0UF 20.0V ROHS COMPLIANT: NO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet T110D566J020AS

T110D566J020AS

Active

KEMET

56.0UF 20.0V ROHS COMPLIANT: NO

Deep-Dive with AI

DocumentsDatasheet T110D566J020AS

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T110D566J020AS

Capacitance	56 µF
ESR (Equivalent Series Resistance)	1.2 Ohm
Features	General Purpose
Manufacturer Size Code	D
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Size / Dimension [diameter]	8.92 mm
Size / Dimension [diameter]	0.351 in
Size / Dimension [x]	0.786 "
Size / Dimension [x]	19.96 mm
Tolerance	5 %
Type	Hermetically Sealed
Voltage - Rated	20 V

T110D Series

Part	Capacitance	ESR (Equivalent Series Resistance)	Mounting Type	Grade	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [custom]	Size / Dimension [custom]	Qualification	Features	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Manufacturer Size Code	Voltage - Rated	Tolerance	Type	Size / Dimension [x]	Size / Dimension [x]
KEMET T110D686K020AS	68 µF	900 mOhm	Through Hole	Military	0.351 in	8.92 mm	0.351 "	8.92 mm	MIL-PRF-39003/1	General Purpose	-55 °C	125 °C	Axial	D	20 V	10 %	Hermetically Sealed
KEMET T110D157K015AT	150 µF	600 mOhm	Through Hole		0.351 in	8.92 mm				General Purpose	-55 °C	125 °C	Axial	D	15 V	10 %	Hermetically Sealed	0.786 "	19.96 mm
KEMET T110D107J020AS	100 µF	600 mOhm	Through Hole	Military	0.351 in	8.92 mm	0.351 "	8.92 mm	MIL-PRF-39003/1	General Purpose	-55 °C	125 °C	Axial	D	20 V	5 %	Hermetically Sealed
KEMET T110D226K060AS	22 µF	1 Ohm	Through Hole	Military	0.351 in	8.92 mm	0.351 "	8.92 mm	MIL-PRF-39003/1	General Purpose	-55 °C	125 °C	Axial	D	60 V	10 %	Hermetically Sealed
KEMET T110D476K035AS	47 µF	800 mOhm	Through Hole		0.351 in	8.92 mm				General Purpose	-55 °C	125 °C	Axial	D	35 V	10 %	Hermetically Sealed	0.786 "	19.96 mm
KEMET T110D156M075AS	15 µF	1200 mOhm	Through Hole		0.351 in	8.92 mm				General Purpose	-55 °C	125 °C	Axial		75 V	20 %	Hermetically Sealed	0.786 "	19.96 mm
KEMET T110D227K010AS1946	220 µF	600 mOhm	Through Hole	Military	0.351 in	8.92 mm	0.351 "	8.92 mm	MIL-PRF-39003/1	General Purpose	-55 °C	125 °C	Axial	D	10 V	10 %	Hermetically Sealed
KEMET T110D566J020AS	56 µF	1.2 Ohm	Through Hole		0.351 in	8.92 mm				General Purpose	-55 °C	125 °C	Axial	D	20 V	5 %	Hermetically Sealed	0.786 "	19.96 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	20	$ 28.30
Newark	Each	10	$ 26.90
		25	$ 24.18
		50	$ 22.10
		100	$ 21.62
		250	$ 20.98
