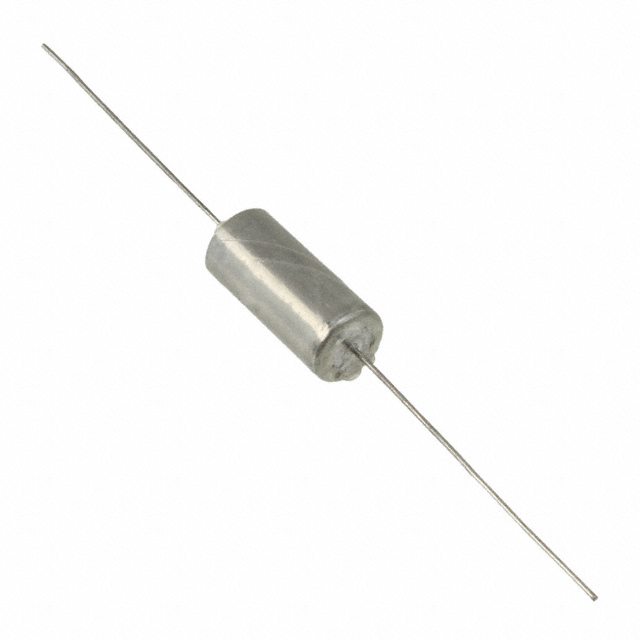

T110D157K015AT - T110 Series

T110D157K015AT

Active
KEMET

150UF 15V 600MΩ@100KHZ ±10% PLUGIN,D8.9XL20MM TANTALUM CAPACITORS ROHS HIGHER VOLTAGE RATINGS AND TIGHTER TOLERANCE PRODUCT INCLUDING ESR MAY BE SUBSTITUTED WITHIN THE SAME SIZE AT KEMET'S OPTION. VOLTAGE SUBSTITUTION WILL BE MARKED WITH THE HIGHER VOLTAGE RATING. SUBSTITUTIONS CAN INCLUDE BETTER THAN SERIES.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsT110D157K015ATDatasheet+1
T110D157K015AT - T110 Series

T110D157K015AT

Active
KEMET

150UF 15V 600MΩ@100KHZ ±10% PLUGIN,D8.9XL20MM TANTALUM CAPACITORS ROHS HIGHER VOLTAGE RATINGS AND TIGHTER TOLERANCE PRODUCT INCLUDING ESR MAY BE SUBSTITUTED WITHIN THE SAME SIZE AT KEMET'S OPTION. VOLTAGE SUBSTITUTION WILL BE MARKED WITH THE HIGHER VOLTAGE RATING. SUBSTITUTIONS CAN INCLUDE BETTER THAN SERIES.

Deep-Dive with AI

DocumentsT110D157K015ATDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationT110D157K015AT
Capacitance150 µF
ESR (Equivalent Series Resistance)600 mOhm
FeaturesGeneral Purpose
Manufacturer Size CodeD
Mounting TypeThrough Hole
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Package / CaseAxial
Size / Dimension [diameter]8.92 mm
Size / Dimension [diameter]0.351 in
Size / Dimension [x]0.786 "
Size / Dimension [x]19.96 mm
Tolerance10 %
TypeHermetically Sealed
Voltage - Rated15 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 24.39
20$ 22.46
40$ 19.90
80$ 17.72
440$ 16.69
NewarkEach 1$ 25.37
5$ 23.81
10$ 22.25
25$ 20.69
50$ 19.55
100$ 18.42

Description

General part information

T110D Series

150 µF Hermetically Sealed Tantalum Capacitors 15 V Axial 600mOhm @ 100kHz
