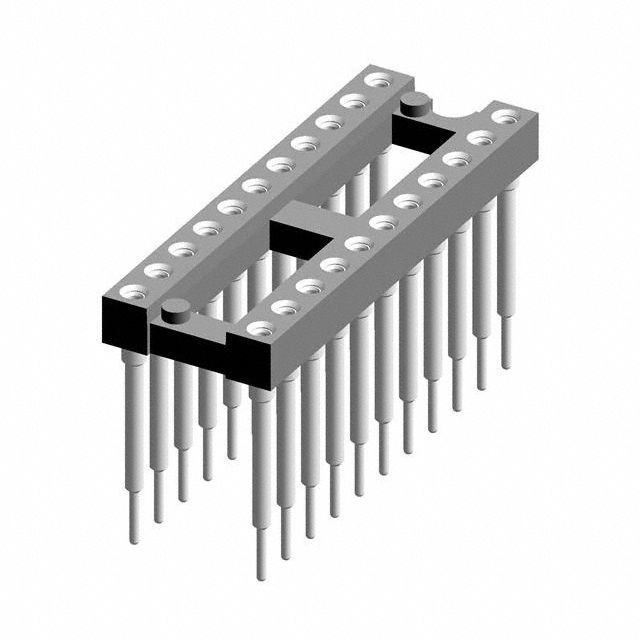

CONN IC DIP SOCKET 22POS GOLD

116-83-322-41-008101

Active

Preci-Dip

CONN IC DIP SOCKET 22POS GOLD

Description Specifications Series Pricing CAD Documents

Description

General part information

116-83 Series

22 (2 x 11) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole

Technical Specifications

Parameters and characteristics for this part

Specification	116-83-322-41-008101

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Ąin
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass
Contact Resistance	10 mOhm
Current Rating	1 A
Features	Elevated, Open Frame
Grid Columns	11
Grid Rows	2
Housing Material	PCT, Polycyclohexylenedimethylene Terephthalate, Glass Filled, Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	22
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.1 in
Pitch - Post	0.1 in
Row Spacing	0.3 in
Termination	Solder
Termination Post Length	0.125 in
Type	DIP, 0.3" (7.62mm) Row Spacing

116-83 Series

...

Part	Mounting Type	Housing Material	Contact Finish - Mating	Row Spacing	Type	Contact Finish - Post	Features	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish Thickness - Mating	Contact Material - Mating	Pitch - Post	Grid Columns	Number of Positions or Pins (Grid)	Grid Rows	Termination	Pitch - Mating	Contact Material - Post	Current Rating	Material Flammability Rating	Termination Post Length	Contact Resistance
Preci-Dip 116-83-328-41-003101	Through Hole	Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester	Gold	0.3 in	0.3" (7.62mm) Row Spacing DIP	Tin	Elevated Open Frame	125 °C	-55 °C	29.5 Ąin	Beryllium Copper	0.1 in	14	28	2	Solder	0.1 in	Brass	1 A	UL94 V-0	0.125 in	10 mOhm
Preci-Dip 116-83-304-41-003101	Through Hole	Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester	Gold	0.3 in	0.3" (7.62mm) Row Spacing DIP	Tin	Elevated Open Frame	125 °C	-55 °C	29.5 Ąin	Beryllium Copper	0.1 in	2	4	2	Solder	0.1 in	Brass	1 A	UL94 V-0	0.125 in	10 mOhm
Preci-Dip 116-83-420-41-006101	Through Hole	Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester	Gold	0.4 in	0.4" (10.16mm) Row Spacing DIP	Tin	Elevated Open Frame	125 °C	-55 °C	29.5 Ąin	Beryllium Copper	0.1 in	10	20	2	Solder	0.1 in	Brass	1 A	UL94 V-0	0.125 in	10 mOhm
Preci-Dip 116-83-308-41-011101	Through Hole	Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester	Gold	0.3 in	0.3" (7.62mm) Row Spacing DIP	Tin	Elevated Open Frame	125 °C	-55 °C	29.5 Ąin	Beryllium Copper	0.1 in	4	8	2	Solder	0.1 in	Brass	1 A	UL94 V-0	0.125 in	10 mOhm
Preci-Dip 116-83-322-41-008101	Through Hole	Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester	Gold	0.3 in	0.3" (7.62mm) Row Spacing DIP	Tin	Elevated Open Frame	125 °C	-55 °C	29.5 Ąin	Beryllium Copper	0.1 in	11	22	2	Solder	0.1 in	Brass	1 A	UL94 V-0	0.125 in	10 mOhm
Preci-Dip 116-83-640-41-006101	Through Hole	Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester	Gold	0.6 in	0.6" (15.24mm) Row Spacing DIP	Tin	Elevated Open Frame	125 °C	-55 °C	29.5 Ąin	Beryllium Copper	0.1 in	20	40	2	Solder	0.1 in	Brass	1 A	UL94 V-0	0.125 in	10 mOhm
Preci-Dip 116-83-642-41-018101	Through Hole	Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester	Gold	0.6 in	0.6" (15.24mm) Row Spacing DIP	Tin	Elevated Open Frame	125 °C	-55 °C	29.5 Ąin	Beryllium Copper	0.1 in	21	42	2	Solder	0.1 in	Brass	1 A	UL94 V-0	0.125 in	10 mOhm
Preci-Dip 116-83-210-41-002101	Through Hole	Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester	Gold	0.2 in	0.2" (5.08mm) Row Spacing DIP	Tin	Elevated Open Frame	125 °C	-55 °C	29.5 Ąin	Beryllium Copper	0.1 in	5	10	2	Solder	0.1 in	Brass	1 A	UL94 V-0	0.125 in	10 mOhm
Preci-Dip 116-83-420-41-007101	Through Hole	Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester	Gold	0.4 in	0.4" (10.16mm) Row Spacing DIP	Tin	Elevated Open Frame	125 °C	-55 °C	29.5 Ąin	Beryllium Copper	0.1 in	10	20	2	Solder	0.1 in	Brass	1 A	UL94 V-0	0.125 in	10 mOhm
Preci-Dip 116-83-632-41-008101	Through Hole	Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester	Gold	0.6 in	0.6" (15.24mm) Row Spacing DIP	Tin	Elevated Open Frame	125 °C	-55 °C	29.5 Ąin	Beryllium Copper	0.1 in	16	32	2	Solder	0.1 in	Brass	1 A	UL94 V-0	0.125 in	10 mOhm
