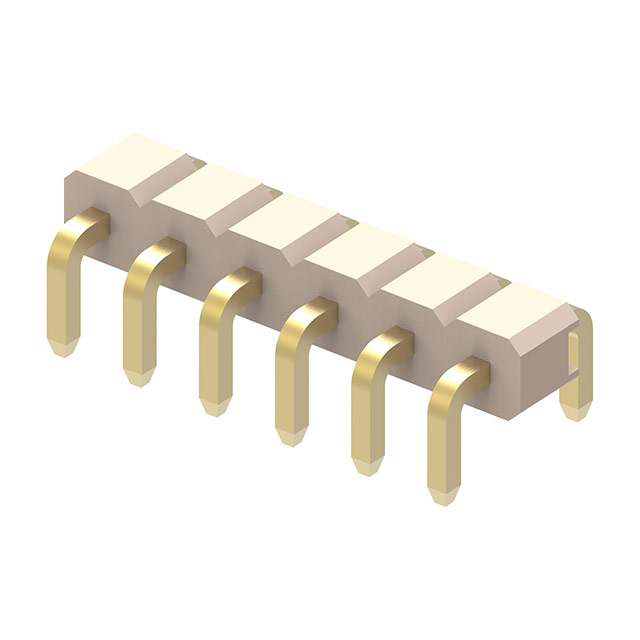

BG304-06-A-0500-L-G

Active

GCT

6W, 2.54MM PTH HDR, U SHAPED, SI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BG304-06-A-0500-L-G

Active

GCT

6W, 2.54MM PTH HDR, U SHAPED, SI

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1000	$ 0.28

Description

General part information

BG304 Series

Connector Header Through Hole 6 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BG304-06-A-0500-L-G	BG304 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Mating	12.07 mm	12.07 mm
Contact Length - Mating	0.475 in	0.475 in
Contact Length - Post [x]	0.081 in	0.081 in
Contact Length - Post [x]	2.06 mm	2.06 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Natural	Natural
Insulation Height [z]	0.098 in	0.098 in
Insulation Height [z]	2.5 mm	2.5 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	6	2 - 6
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Unshrouded	Unshrouded
Termination	Solder	Solder

BG304 Series

4W, 2.54MM PTH HDR, U SHAPED, SI

Part	Current Rating (Amps)	Contact Material	Contact Type	Termination	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Contact Finish - Post	Contact Finish Thickness - Post	Contact Shape	Fastening Type	Material Flammability Rating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Finish - Mating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Connector Type	Number of Rows	Shrouding	Contact Length - Mating	Contact Length - Mating	Number of Positions
GCT BG304-04-A-0500-L-G	3 A	Brass	Male Pin	Solder	0.1 in	2.54 mm	0.081 in	2.06 mm	Natural	Gold	Flash	Square	Push-Pull	UL94 V-0	Flash	All	Gold	Through Hole	-40 °C	105 ░C	0.098 in	2.5 mm	Header	1	Unshrouded	12.07 mm	0.475 in	4
GCT BG304-03-A-0500-L-G	3 A	Brass	Male Pin	Solder	0.1 in	2.54 mm	0.081 in	2.06 mm	Natural	Gold	Flash	Square	Push-Pull	UL94 V-0	Flash	All	Gold	Through Hole	-40 °C	105 ░C	0.098 in	2.5 mm	Header	1	Unshrouded	12.07 mm	0.475 in
GCT BG304-05-A-0500-L-G	3 A	Brass	Male Pin	Solder	0.1 in	2.54 mm	0.081 in	2.06 mm	Natural	Gold	Flash	Square	Push-Pull	UL94 V-0	Flash	All	Gold	Through Hole	-40 °C	105 ░C	0.098 in	2.5 mm	Header	1	Unshrouded	12.07 mm	0.475 in
GCT BG304-02-A-0500-L-G	3 A	Brass	Male Pin	Solder	0.1 in	2.54 mm	0.081 in	2.06 mm	Natural	Gold	Flash	Square	Push-Pull	UL94 V-0	Flash	All	Gold	Through Hole	-40 °C	105 ░C	0.098 in	2.5 mm	Header	1	Unshrouded	12.07 mm	0.475 in	2
GCT BG304-06-A-0500-L-G	3 A	Brass	Male Pin	Solder	0.1 in	2.54 mm	0.081 in	2.06 mm	Natural	Gold	Flash	Square	Push-Pull	UL94 V-0	Flash	All	Gold	Through Hole	-40 °C	105 ░C	0.098 in	2.5 mm	Header	1	Unshrouded	12.07 mm	0.475 in	6
