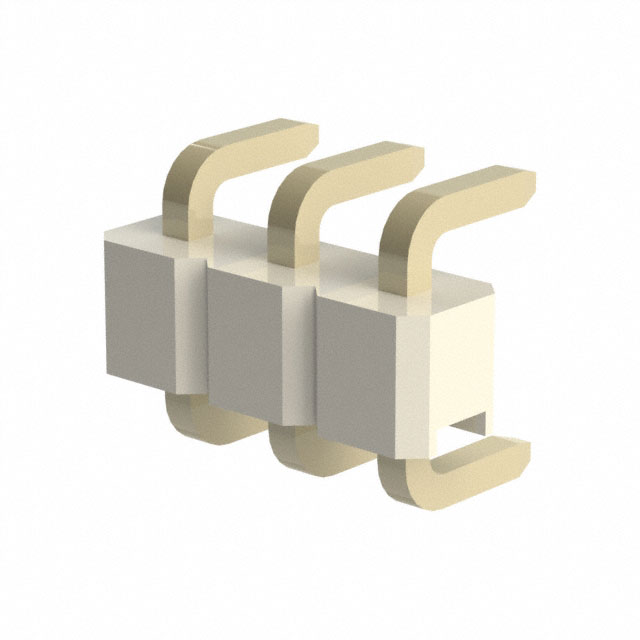

BG304-03-A-0500-L-G

Active

GCT

3W, 2.54MM PTH HDR, U SHAPED, SI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BG304-03-A-0500-L-G

Active

GCT

3W, 2.54MM PTH HDR, U SHAPED, SI

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BG304-03-A-0500-L-G	BG304 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Mating	12.07 mm	12.07 mm
Contact Length - Mating	0.475 in	0.475 in
Contact Length - Post [x]	0.081 in	0.081 in
Contact Length - Post [x]	2.06 mm	2.06 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Natural	Natural
Insulation Height [z]	0.098 in	0.098 in
Insulation Height [z]	2.5 mm	2.5 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	-	2 - 6
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Unshrouded	Unshrouded
Termination	Solder	Solder

BG304 Series

4W, 2.54MM PTH HDR, U SHAPED, SI

Part	Current Rating (Amps)	Contact Material	Contact Type	Termination	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Contact Finish - Post	Contact Finish Thickness - Post	Contact Shape	Fastening Type	Material Flammability Rating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Finish - Mating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Connector Type	Number of Rows	Shrouding	Contact Length - Mating	Contact Length - Mating	Number of Positions
GCT BG304-04-A-0500-L-G	3 A	Brass	Male Pin	Solder	0.1 in	2.54 mm	0.081 in	2.06 mm	Natural	Gold	Flash	Square	Push-Pull	UL94 V-0	Flash	All	Gold	Through Hole	-40 °C	105 ░C	0.098 in	2.5 mm	Header	1	Unshrouded	12.07 mm	0.475 in	4
GCT BG304-03-A-0500-L-G	3 A	Brass	Male Pin	Solder	0.1 in	2.54 mm	0.081 in	2.06 mm	Natural	Gold	Flash	Square	Push-Pull	UL94 V-0	Flash	All	Gold	Through Hole	-40 °C	105 ░C	0.098 in	2.5 mm	Header	1	Unshrouded	12.07 mm	0.475 in
GCT BG304-05-A-0500-L-G	3 A	Brass	Male Pin	Solder	0.1 in	2.54 mm	0.081 in	2.06 mm	Natural	Gold	Flash	Square	Push-Pull	UL94 V-0	Flash	All	Gold	Through Hole	-40 °C	105 ░C	0.098 in	2.5 mm	Header	1	Unshrouded	12.07 mm	0.475 in
GCT BG304-02-A-0500-L-G	3 A	Brass	Male Pin	Solder	0.1 in	2.54 mm	0.081 in	2.06 mm	Natural	Gold	Flash	Square	Push-Pull	UL94 V-0	Flash	All	Gold	Through Hole	-40 °C	105 ░C	0.098 in	2.5 mm	Header	1	Unshrouded	12.07 mm	0.475 in	2
GCT BG304-06-A-0500-L-G	3 A	Brass	Male Pin	Solder	0.1 in	2.54 mm	0.081 in	2.06 mm	Natural	Gold	Flash	Square	Push-Pull	UL94 V-0	Flash	All	Gold	Through Hole	-40 °C	105 ░C	0.098 in	2.5 mm	Header	1	Unshrouded	12.07 mm	0.475 in	6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1000	$ 0.16

Description

General part information

BG304 Series

Connector Header Through Hole 3 position 0.100" (2.54mm)
