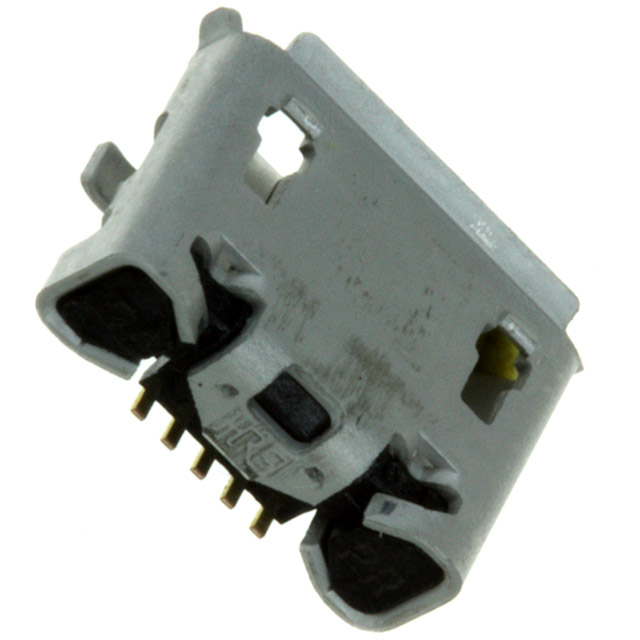

ZX62-B-5PA(33)

Active

Hirose Electric Co Ltd

CONN RCPT USB2.0 MICRO B SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsZX Series Datasheet Datasheet

ZX62-B-5PA(33)

Active

Hirose Electric Co Ltd

CONN RCPT USB2.0 MICRO B SMD R/A

Deep-Dive with AI

DocumentsZX Series Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZX62-B-5PA(33)	ZX62 Series

Connector Type	USB - micro B	USB - micro AB, USB - micro B
Contact Finish	Gold	Gold
Current Rating (Amps)	1 A	1 - 100 A
Features	Pick and Place, Solder Retention	Pick and Place, Solder Retention, Pick and Place Cap
Gender	Receptacle	Receptacle
Insulation Color	Black	Black, Gray
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	10000	10000
Mounting Feature	-	Horizontal, Reverse Mount, Horizontal, Mid Mount
Mounting Type	Surface Mount, Right Angle	Through Hole, Surface Mount, Right Angle, Board Edge, Cutout, Through Hole, Right Angle, Surface Mount
Number of Contacts	5	5
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Shell/Shielding Material	Stainless, Steel	Stainless, Steel
Shielding	Shielded	Shielded
Specifications	USB 2.0	USB 2.0
Termination	Solder	Solder
Voltage - Rated	30 VAC	30 VAC

ZX62 Series

CONN RCP USB2.0 MICRO AB SMD

Part	Mounting Type	Number of Ports	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Contacts	Mounting Feature	Mating Cycles	Shielding	Termination	Voltage - Rated	Material Flammability Rating	Specifications	Connector Type	Current Rating (Amps)	Insulation Color	Gender	Shell/Shielding Material	Features
Hirose Electric Co Ltd ZX62MD1-AB-5P(31)	Surface Mount, Right Angle, Through Hole	1	Gold	-30 ░C	85 °C	5	Horizontal	10000	Shielded	Solder	30 VAC	UL94 V-0	USB 2.0	USB - micro AB	1.8 A	Black	Receptacle
Hirose Electric Co Ltd ZX62D2-AB-5PA8(30)	Surface Mount, Right Angle	1	Gold	-30 ░C	85 °C	5	Horizontal	10000	Shielded	Solder	30 VAC	UL94 V-0	USB 2.0	USB - micro AB	1 A, 1.8 A, 100 mA	Gray	Receptacle
Hirose Electric Co Ltd ZX62D-AB-5P8(30)	Surface Mount, Right Angle, Through Hole	1	Gold	-30 ░C	85 °C	5		10000	Shielded	Solder	30 VAC	UL94 V-0	USB 2.0	USB - micro AB	1 A	Gray	Receptacle	Stainless, Steel	Pick and Place, Solder Retention
Hirose Electric Co Ltd ZX62D1-B-5PA(30)	Surface Mount, Right Angle, Through Hole	1	Gold	-30 ░C	85 °C	5		10000	Shielded	Solder	30 VAC	UL94 V-0	USB 2.0	USB - micro B	1.8 A	Black	Receptacle	Stainless, Steel	Pick and Place Cap, Solder Retention
Hirose Electric Co Ltd ZX62-AB-5PA(31)	Surface Mount, Right Angle	1	Gold	-30 ░C	85 °C	5		10000	Shielded	Solder	30 VAC	UL94 V-0	USB 2.0	USB - micro AB	1 A	Gray	Receptacle	Stainless, Steel	Pick and Place, Solder Retention
Hirose Electric Co Ltd ZX62MD2-B-5PA(30)	Surface Mount, Right Angle, Through Hole	1	Gold	-30 ░C	85 °C	5	Horizontal	10000	Shielded	Solder	30 VAC	UL94 V-0	USB 2.0	USB - micro B	1.8 A	Black	Receptacle
Hirose Electric Co Ltd ZX62R-AB-5P(30)	Surface Mount, Right Angle	1	Gold	-30 ░C	85 °C	5	Horizontal, Reverse Mount	10000	Shielded	Solder	30 VAC	UL94 V-0	USB 2.0	USB - micro AB	1.8 A	Gray	Receptacle	Stainless, Steel	Pick and Place, Solder Retention
Hirose Electric Co Ltd ZX62MD1-B-5P(31)	Board Edge, Cutout, Surface Mount, Through Hole, Right Angle	1	Gold	-30 ░C	85 °C	5	Horizontal, Mid Mount	10000	Shielded	Solder	30 VAC	UL94 V-0	USB 2.0	USB - micro B	1.8 A	Black	Receptacle	Stainless, Steel	Pick and Place, Solder Retention
Hirose Electric Co Ltd ZX62D-B-5PA5	Surface Mount, Right Angle, Through Hole	1	Gold	-30 ░C	85 °C	5		10000	Shielded	Solder	30 VAC	UL94 V-0	USB 2.0	USB - micro B	1.8 A	Black	Receptacle	Stainless, Steel	Pick and Place, Solder Retention
Hirose Electric Co Ltd ZX62-B-5PA(33)	Surface Mount, Right Angle	1	Gold	-30 ░C	85 °C	5		10000	Shielded	Solder	30 VAC	UL94 V-0	USB 2.0	USB - micro B	1 A	Black	Receptacle	Stainless, Steel	Pick and Place, Solder Retention
