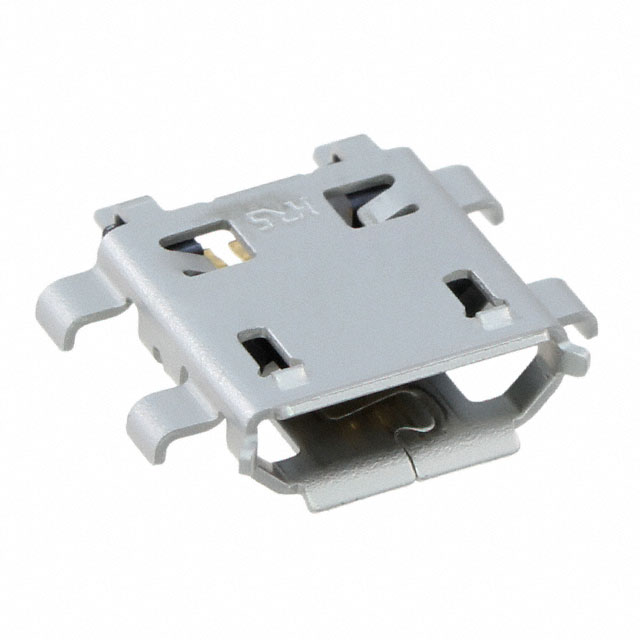

ZX62MD1-B-5P(31)

Active

Hirose Electric Co Ltd

CONN RCPT USB2.0 MICRO B SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ZX Series Datasheet

ZX62MD1-B-5P(31)

Active

Hirose Electric Co Ltd

CONN RCPT USB2.0 MICRO B SMD

Deep-Dive with AI

DocumentsDatasheet ZX Series Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 0.49

Description

General part information

ZX62 Series

USB - micro B USB 2.0 Receptacle Connector 5 Position Board Edge, Cutout; Surface Mount; Through Hole, Right Angle

Documents

Technical documentation and resources

Datasheet

ZX Series Datasheet

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZX62MD1-B-5P(31)	ZX62 Series

Connector Type	USB - micro B	USB - micro AB, USB - micro B
Contact Finish	Gold	Gold
Current Rating (Amps)	1.8 A	1 - 100 A
Features	Pick and Place, Solder Retention	Pick and Place, Solder Retention, Pick and Place Cap
Gender	Receptacle	Receptacle
Insulation Color	Black	Black, Gray
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	10000	10000
Mounting Feature	Horizontal, Mid Mount	Horizontal, Reverse Mount, Horizontal, Mid Mount
Mounting Type	Board Edge, Cutout, Through Hole, Right Angle, Surface Mount	Through Hole, Surface Mount, Right Angle, Board Edge, Cutout, Through Hole, Right Angle, Surface Mount
Number of Contacts	5	5
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Shell/Shielding Material	Stainless, Steel	Stainless, Steel
Shielding	Shielded	Shielded
Specifications	USB 2.0	USB 2.0
Termination	Solder	Solder
Voltage - Rated	30 VAC	30 VAC

ZX62 Series

CONN RCP USB2.0 MICRO AB SMD

Part	Mounting Type	Number of Ports	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Contacts	Mounting Feature	Mating Cycles	Shielding	Termination	Voltage - Rated	Material Flammability Rating	Specifications	Connector Type	Current Rating (Amps)	Insulation Color	Gender	Shell/Shielding Material	Features
Hirose Electric Co Ltd ZX62MD1-AB-5P(31)	Surface Mount, Right Angle, Through Hole	1	Gold	-30 ░C	85 °C	5	Horizontal	10000	Shielded	Solder	30 VAC	UL94 V-0	USB 2.0	USB - micro AB	1.8 A	Black	Receptacle
Hirose Electric Co Ltd ZX62D2-AB-5PA8(30)	Surface Mount, Right Angle	1	Gold	-30 ░C	85 °C	5	Horizontal	10000	Shielded	Solder	30 VAC	UL94 V-0	USB 2.0	USB - micro AB	1 A, 1.8 A, 100 mA	Gray	Receptacle
Hirose Electric Co Ltd ZX62D-AB-5P8(30)	Surface Mount, Right Angle, Through Hole	1	Gold	-30 ░C	85 °C	5		10000	Shielded	Solder	30 VAC	UL94 V-0	USB 2.0	USB - micro AB	1 A	Gray	Receptacle	Stainless, Steel	Pick and Place, Solder Retention
Hirose Electric Co Ltd ZX62D1-B-5PA(30)	Surface Mount, Right Angle, Through Hole	1	Gold	-30 ░C	85 °C	5		10000	Shielded	Solder	30 VAC	UL94 V-0	USB 2.0	USB - micro B	1.8 A	Black	Receptacle	Stainless, Steel	Pick and Place Cap, Solder Retention
Hirose Electric Co Ltd ZX62-AB-5PA(31)	Surface Mount, Right Angle	1	Gold	-30 ░C	85 °C	5		10000	Shielded	Solder	30 VAC	UL94 V-0	USB 2.0	USB - micro AB	1 A	Gray	Receptacle	Stainless, Steel	Pick and Place, Solder Retention
Hirose Electric Co Ltd ZX62MD2-B-5PA(30)	Surface Mount, Right Angle, Through Hole	1	Gold	-30 ░C	85 °C	5	Horizontal	10000	Shielded	Solder	30 VAC	UL94 V-0	USB 2.0	USB - micro B	1.8 A	Black	Receptacle
Hirose Electric Co Ltd ZX62R-AB-5P(30)	Surface Mount, Right Angle	1	Gold	-30 ░C	85 °C	5	Horizontal, Reverse Mount	10000	Shielded	Solder	30 VAC	UL94 V-0	USB 2.0	USB - micro AB	1.8 A	Gray	Receptacle	Stainless, Steel	Pick and Place, Solder Retention
Hirose Electric Co Ltd ZX62MD1-B-5P(31)	Board Edge, Cutout, Surface Mount, Through Hole, Right Angle	1	Gold	-30 ░C	85 °C	5	Horizontal, Mid Mount	10000	Shielded	Solder	30 VAC	UL94 V-0	USB 2.0	USB - micro B	1.8 A	Black	Receptacle	Stainless, Steel	Pick and Place, Solder Retention
Hirose Electric Co Ltd ZX62D-B-5PA5	Surface Mount, Right Angle, Through Hole	1	Gold	-30 ░C	85 °C	5		10000	Shielded	Solder	30 VAC	UL94 V-0	USB 2.0	USB - micro B	1.8 A	Black	Receptacle	Stainless, Steel	Pick and Place, Solder Retention
Hirose Electric Co Ltd ZX62-B-5PA(33)	Surface Mount, Right Angle	1	Gold	-30 ░C	85 °C	5		10000	Shielded	Solder	30 VAC	UL94 V-0	USB 2.0	USB - micro B	1 A	Black	Receptacle	Stainless, Steel	Pick and Place, Solder Retention
