M83-LML3M1N54-0000-000

Active

Harwin Inc.

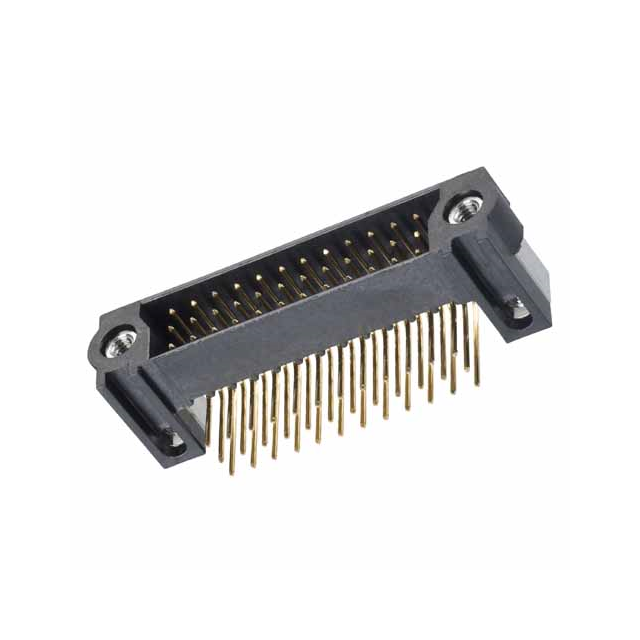

BOARD CONNECTOR, 54 CONTACT(S), 3 ROW(S), MALE, RIGHT ANGLE, 0.079 INCH PITCH, SOLDER TERMINAL, M2X0.4, BLACK INSULATOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-001 M80-0110001 +2

M83-LML3M1N54-0000-000

Active

Harwin Inc.

BOARD CONNECTOR, 54 CONTACT(S), 3 ROW(S), MALE, RIGHT ANGLE, 0.079 INCH PITCH, SOLDER TERMINAL, M2X0.4, BLACK INSULATOR

Deep-Dive with AI

DocumentsM80-001 M80-0110001 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M83-LML3M1N54-0000-000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	29.5 µin
Contact Finish Thickness - Post	0.75 µm
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Features	Mating Flange, Mounting Flange
Insulation Color	Black
Insulation Height	0.303 in
Insulation Height	7.7 mm
Insulation Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	54
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 VAC

M83-LML3M Series

Part	Number of Rows	Termination	Features	Insulation Color	Contact Shape	Insulation Height	Insulation Height	Contact Material	Voltage Rating	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Contact Type	Contact Length - Post	Contact Length - Post	Number of Positions	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish - Mating	Insulation Material	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post
Harwin Inc. M83-LML3M7N54-0000-000	3	Solder	Mating Flange Mounting Flange Mounting Hardware	Black	Circular	0.303 in	7.7 mm	Phosphor Bronze	800 V	2.2 A	29.5 Áin	0.75 Ám	Board to Board Cable	Male Pin	0.157 in	4 mm	54	0.079 in	2 mm	All	Shrouded - 4 Wall	0.079 in	2 mm	Through Hole Right Angle	-55 °C	125 °C	Header	Gold	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0
Harwin Inc. M83-LML3M1N18-0000-000	3	Solder	Mating Flange Mounting Flange	Black	Circular	0.303 in	7.7 mm	Phosphor Bronze	800 V	2.2 A	29.5 Áin	0.75 Ám	Board to Board Cable	Male Pin	0.138 in	3.5 mm	18	0.079 in	2 mm	All	Shrouded - 4 Wall	0.079 in	2 mm	Through Hole Right Angle	-55 °C	125 °C	Header	Gold	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0
Harwin Inc. M83-LML3M7N18-0000-000	3	Solder	Mating Flange Mounting Flange Mounting Hardware	Black	Circular	0.303 in	7.7 mm	Phosphor Bronze	800 V	2.2 A	29.5 Áin	0.75 Ám	Board to Board Cable	Male Pin	0.157 in	4 mm	18	0.079 in	2 mm	All	Shrouded - 4 Wall	0.079 in	2 mm	Through Hole Right Angle	-55 °C	125 °C	Header	Gold	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0
Harwin Inc. M83-LML3M5N96-0000-000	3	Solder	Mating Flange Mounting Flange Mounting Hardware	Black	Circular	0.303 in	7.7 mm	Phosphor Bronze	120 VDC	2.2 A	29.5 Áin	0.75 Ám	Board to Board Cable	Male Pin	0.157 in	4 mm	96	0.079 in	2 mm	All	Shrouded - 4 Wall	0.079 in	2 mm	Through Hole Right Angle	-55 °C	125 °C	Header	Gold	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0
Harwin Inc. M83-LML3M1N54-0000-000	3	Solder	Mating Flange Mounting Flange	Black	Circular	0.303 in	7.7 mm	Phosphor Bronze	800 VAC	2.2 A	29.5 Áin	0.75 Ám	Board to Board Cable	Male Pin	0.138 in	3.5 mm	54	0.079 in	2 mm	All	Shrouded - 4 Wall	0.079 in	2 mm	Through Hole Right Angle	-55 °C	125 °C	Header	Gold	Polyphenylene Sulfide (PPS)	UL94 V-0	29.5 µin	0.75 µm	Gold
Harwin Inc. M83-LML3M5N36-0000-000	3	Solder	Mating Flange Mounting Flange Mounting Hardware	Black	Circular	0.303 in	7.7 mm	Phosphor Bronze	120 VDC	2.2 A	29.5 Áin	0.75 Ám	Board to Board Cable	Male Pin	0.157 in	4 mm	36	0.079 in	2 mm	All	Shrouded - 4 Wall	0.079 in	2 mm	Through Hole Right Angle	-55 °C	125 °C	Header	Gold	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0
Harwin Inc. M83-LML3M5N27-0000-000	3	Solder	Mating Flange Mounting Flange Mounting Hardware	Black	Circular	0.303 in	7.7 mm	Phosphor Bronze	120 VDC	2.2 A	29.5 Áin	0.75 Ám	Board to Board Cable	Male Pin	0.157 in	4 mm	27	0.079 in	2 mm	All	Shrouded - 4 Wall	0.079 in	2 mm	Through Hole Right Angle	-55 °C	125 °C	Header	Gold	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0
Harwin Inc. M83-LML3M5N60-0000-000	3	Solder	Mating Flange Mounting Flange Mounting Hardware	Black	Circular	0.303 in	7.7 mm	Phosphor Bronze	120 VDC	2.2 A	29.5 Áin	0.75 Ám	Board to Board Cable	Male Pin	0.157 in	4 mm	60	0.079 in	2 mm	All	Shrouded - 4 Wall	0.079 in	2 mm	Through Hole Right Angle	-55 °C	125 °C	Header	Gold	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0
Harwin Inc. M83-LML3M1N96-0000-000	3	Solder	Mating Flange Mounting Flange	Black	Circular	0.303 in	7.7 mm	Phosphor Bronze	800 V	2.2 A	29.5 Áin	0.75 Ám	Board to Board Cable	Male Pin	0.138 in	3.5 mm	96	0.079 in	2 mm	All	Shrouded - 4 Wall	0.079 in	2 mm	Through Hole Right Angle	-55 °C	125 °C	Header	Gold	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0
Harwin Inc. M83-LML3M5N54-0000-000	3	Solder	Mating Flange Mounting Flange Mounting Hardware	Black	Circular	0.303 in	7.7 mm	Phosphor Bronze	120 VDC	2.2 A	29.5 Áin	0.75 Ám	Board to Board Cable	Male Pin	0.157 in	4 mm	54	0.079 in	2 mm	All	Shrouded - 4 Wall	0.079 in	2 mm	Through Hole Right Angle	-55 °C	125 °C	Header	Gold	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 26.77
Newark	Each	50	$ 27.97
		100	$ 27.06
		250	$ 25.60
		500	$ 24.87
		1000	$ 24.32

Description

General part information

M83-LML3M Series

Connector Header Through Hole, Right Angle 54 position 0.079" (2.00mm)

Documents

Technical documentation and resources

M80-001

M80-0110001

Datasheet

M80, M83 Series Spec Sheet

Datasheet
