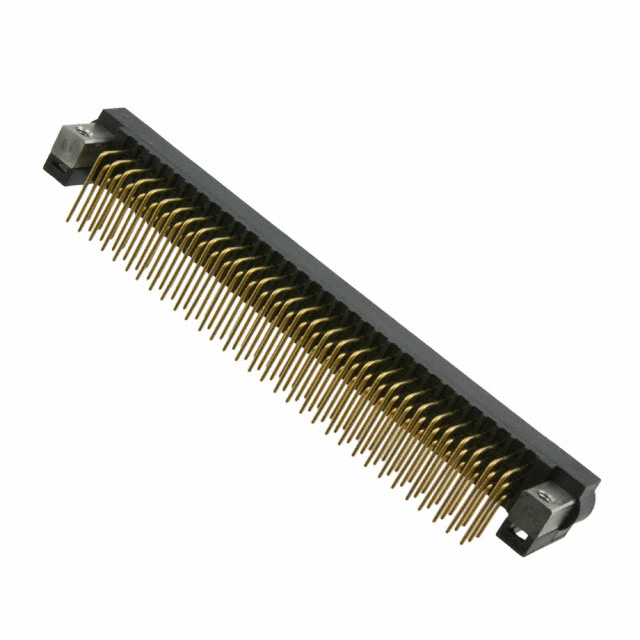

Specification	M83-LML3M1N96-0000-000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	29.5 Ąin
Contact Length - Post	0.138 in
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Per Contact)	2.2 A
Fastening Type	Threaded
Features	Mating Flange, Mounting Flange
Insulation Color	Black
Insulation Height	0.303 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	96
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.079 in
Row Spacing - Mating	0.079 in
Shrouding	Shrouded - 4 Wall
Style	Board, Board or Cable
Termination	Solder
Voltage Rating	800 V

M83-LML3M Series

Part	Contact Shape	Number of Rows	Contact Finish Thickness - Mating	Pitch - Mating	Material Flammability Rating	Contact Material	Contact Finish - Mating	Termination	Features	Contact Length - Post	Number of Positions	Style	Number of Positions Loaded	Insulation Height	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Mounting Type	Connector Type	Insulation Material	Contact Type	Insulation Color	Shrouding	Voltage Rating	Current Rating (Per Contact)	Row Spacing - Mating	Contact Finish - Post	Current Rating	Voltage Rating (Type)	Contact Finish Thickness - Post
Harwin Inc. M83-LML3M7N54-0000-000	Circular	3	29.5 Ąin	0.079 in	UL94 V-0	Phosphor Bronze	Gold	Solder	Mating Flange Mounting Flange Mounting Hardware	0.157 in	54	Board Board or Cable	All	0.303 in	125 °C	-55 °C	Threaded	Right Angle Through Hole	Header	Glass Filled Polyphenylene Sulfide (PPS)	Male Pin	Black	Shrouded - 4 Wall	800 V	2.2 A	0.079 in
Harwin Inc. M83-LML3M1N18-0000-000	Circular	3	29.5 Ąin	0.079 in	UL94 V-0	Phosphor Bronze	Gold	Solder	Mating Flange Mounting Flange	0.138 in	18	Board Board or Cable	All	0.303 in	125 °C	-55 °C	Threaded	Right Angle Through Hole	Header	Glass Filled Polyphenylene Sulfide (PPS)	Male Pin	Black	Shrouded - 4 Wall	800 V	2.2 A	0.079 in
Harwin Inc. M83-LML3M7N18-0000-000	Circular	3	29.5 Ąin	0.079 in	UL94 V-0	Phosphor Bronze	Gold	Solder	Mating Flange Mounting Flange Mounting Hardware	0.157 in	18	Board Board or Cable	All	0.303 in	125 °C	-55 °C	Threaded	Right Angle Through Hole	Header	Glass Filled Polyphenylene Sulfide (PPS)	Male Pin	Black	Shrouded - 4 Wall	800 V	2.2 A	0.079 in
Harwin Inc. M83-LML3M5N96-0000-000	Circular	3	29.5 Ąin	0.079 in	UL94 V-0	Phosphor Bronze	Gold	Solder	Mating Flange Mounting Flange Mounting Hardware	0.157 in	96	Board Board or Cable	All	0.303 in	125 °C	-55 °C	Threaded	Right Angle Through Hole	Header	Glass Filled Polyphenylene Sulfide (PPS)	Male Pin	Black	Shrouded - 4 Wall	120 V	2.2 A	0.079 in
Harwin Inc. M83-LML3M1N54-0000-000	Circular	3	29.5 Ąin	0.079 in	UL94 V-0	Phosphor Bronze	Gold	Solder	Mating Flange Mounting Flange	0.138 in	54	Board Board or Cable	All	0.303 in	125 °C	-55 °C	Threaded	Right Angle Through Hole	Header	Polyphenylene Sulfide (PPS)	Male Pin	Black	Shrouded - 4 Wall	800 V		0.079 in	Gold	2.2 A	DC	29.5 µin
Harwin Inc. M83-LML3M5N36-0000-000	Circular	3	29.5 Ąin	0.079 in	UL94 V-0	Phosphor Bronze	Gold	Solder	Mating Flange Mounting Flange Mounting Hardware	0.157 in	36	Board Board or Cable	All	0.303 in	125 °C	-55 °C	Threaded	Right Angle Through Hole	Header	Glass Filled Polyphenylene Sulfide (PPS)	Male Pin	Black	Shrouded - 4 Wall	120 V	2.2 A	0.079 in
Harwin Inc. M83-LML3M5N27-0000-000	Circular	3	29.5 Ąin	0.079 in	UL94 V-0	Phosphor Bronze	Gold	Solder	Mating Flange Mounting Flange Mounting Hardware	0.157 in	27	Board Board or Cable	All	0.303 in	125 °C	-55 °C	Threaded	Right Angle Through Hole	Header	Glass Filled Polyphenylene Sulfide (PPS)	Male Pin	Black	Shrouded - 4 Wall	120 V	2.2 A	0.079 in
Harwin Inc. M83-LML3M5N60-0000-000	Circular	3	29.5 Ąin	0.079 in	UL94 V-0	Phosphor Bronze	Gold	Solder	Mating Flange Mounting Flange Mounting Hardware	0.157 in	60	Board Board or Cable	All	0.303 in	125 °C	-55 °C	Threaded	Right Angle Through Hole	Header	Glass Filled Polyphenylene Sulfide (PPS)	Male Pin	Black	Shrouded - 4 Wall	120 V	2.2 A	0.079 in
Harwin Inc. M83-LML3M1N96-0000-000	Circular	3	29.5 Ąin	0.079 in	UL94 V-0	Phosphor Bronze	Gold	Solder	Mating Flange Mounting Flange	0.138 in	96	Board Board or Cable	All	0.303 in	125 °C	-55 °C	Threaded	Right Angle Through Hole	Header	Glass Filled Polyphenylene Sulfide (PPS)	Male Pin	Black	Shrouded - 4 Wall	800 V	2.2 A	0.079 in
Harwin Inc. M83-LML3M5N54-0000-000	Circular	3	29.5 Ąin	0.079 in	UL94 V-0	Phosphor Bronze	Gold	Solder	Mating Flange Mounting Flange Mounting Hardware	0.157 in	54	Board Board or Cable	All	0.303 in	125 °C	-55 °C	Threaded	Right Angle Through Hole	Header	Glass Filled Polyphenylene Sulfide (PPS)	Male Pin	Black	Shrouded - 4 Wall	120 V	2.2 A	0.079 in
