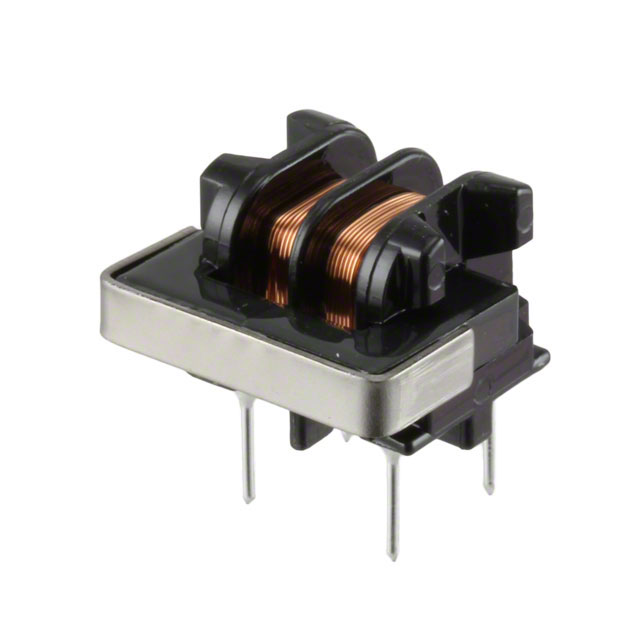

SU9H-05020

Active

KEMET

COMMON MODE FILTER, 2000UH, THD

Search across all available documentation for this part.

Active

KEMET

COMMON MODE FILTER, 2000UH, THD

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) (Max) [Max]	Number of Lines	Height (Max) [Max]	Height (Max)	Filter Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Max) [Max]	Package / Case	Package / Case	Inductance @ Frequency
KEMET SU9H-05020	Through Hole	250 V	125 °C	-25 °C	1 Ohm	2	0.492 in	12.5 mm	Power Line	17 mm	0.61 in	0.669 "	15.5 mm	500 mA	4 Lead	Vertical
KEMET SU9H-07010	Through Hole	250 V	125 °C	-25 °C	600 mOhm	2	0.492 in	12.5 mm	Power Line	17 mm	0.61 in	0.669 "	15.5 mm	700 mA	4 Lead	Vertical	1 mH
KEMET SU9H-01100	Through Hole	250 V	125 °C	-25 °C	8 Ohm	2	0.492 in	12.5 mm	Power Line	17 mm	0.61 in	0.669 "	15.5 mm	100 mA	4 Lead	Vertical	1 kHz 10 mH
KEMET SU9H-R02140	Through Hole	250 V	120 °C	-25 °C	6 Ohm	2	0.492 in	12.5 mm	Power Line	17 mm	0.61 in	0.669 "	15.5 mm	200 mA	4 Lead	Vertical	1 kHz 14 mH

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 500mA DCR 1Ohm
