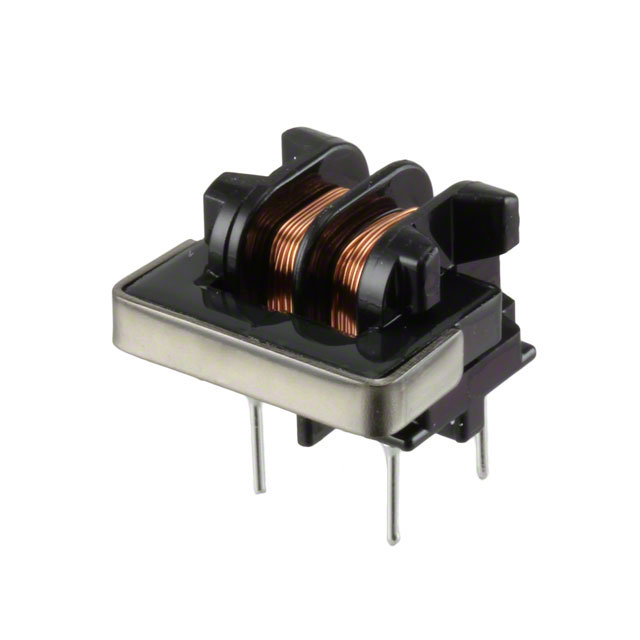

SU9H-07010

Active

KEMET

V ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

V ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) (Max) [Max]	Number of Lines	Height (Max) [Max]	Height (Max)	Filter Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Max) [Max]	Package / Case	Package / Case	Inductance @ Frequency
KEMET SU9H-05020	Through Hole	250 V	125 °C	-25 °C	1 Ohm	2	0.492 in	12.5 mm	Power Line	17 mm	0.61 in	0.669 "	15.5 mm	500 mA	4 Lead	Vertical
KEMET SU9H-07010	Through Hole	250 V	125 °C	-25 °C	600 mOhm	2	0.492 in	12.5 mm	Power Line	17 mm	0.61 in	0.669 "	15.5 mm	700 mA	4 Lead	Vertical	1 mH
KEMET SU9H-01100	Through Hole	250 V	125 °C	-25 °C	8 Ohm	2	0.492 in	12.5 mm	Power Line	17 mm	0.61 in	0.669 "	15.5 mm	100 mA	4 Lead	Vertical	1 kHz 10 mH
KEMET SU9H-R02140	Through Hole	250 V	120 °C	-25 °C	6 Ohm	2	0.492 in	12.5 mm	Power Line	17 mm	0.61 in	0.669 "	15.5 mm	200 mA	4 Lead	Vertical	1 kHz 14 mH

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 700mA DCR 600mOhm
