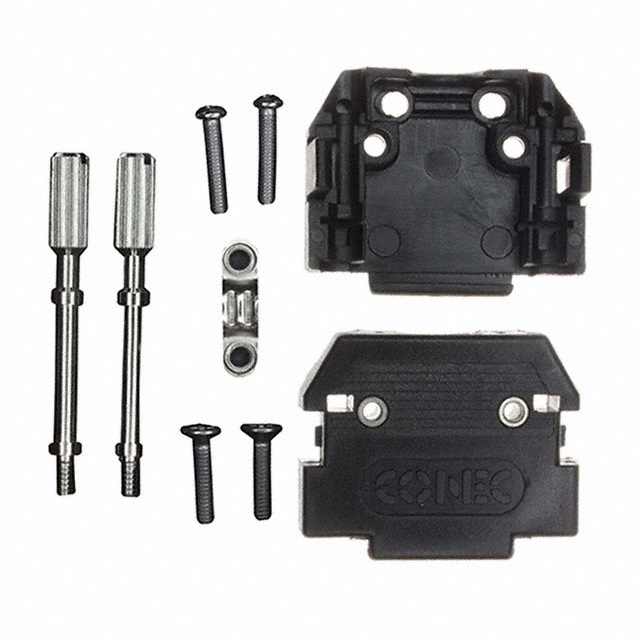

165X10139XE

Active

Amphenol CONEC

D SUB BACKSHELL, 180DEG, DE, NYLON ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol CONEC

D SUB BACKSHELL, 180DEG, DE, NYLON ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	165X10139XE

Accessory Type	Two Piece Backshell
Cable Exit	180 °
Cable Type	Round
Color	Black
Compatible D-Sub Size	HD15pos, 9pos
Compatible Shell Size	E
Features	Mating Screws 4-40
Material	Glass Filled, Polyamide (PA), Nylon
Number of Positions	9
Primary Material	Plastic
Shielding	Unshielded

Part	Compatible Shell Size	Number of Positions	Compatible D-Sub Size	Features	Material	Color	Accessory Type	Cable Exit	Primary Material	Cable Type	Shielding	For Use With/Related Products	Number of Positions [Min]	Number of Positions [Max]
Amphenol CONEC 165X10149X	A	15	15pos HD26pos	Mating Screws 4-40	Glass Filled Nylon Polyamide (PA)	Black	Two Piece Backshell	180 °	Plastic	Round	Unshielded
Amphenol CONEC 165X10169XE	C	37	37pos HD62pos	Mating Screws 4-40	Glass Filled Nylon Polyamide (PA)	Black	Two Piece Backshell	180 °	Plastic	Round	Unshielded
Amphenol CONEC 165X10149XE	A	15	15pos HD26pos	Mating Screws 4-40	Glass Filled Nylon Polyamide (PA)	Black	Two Piece Backshell	180 °	Plastic	Round	Unshielded
Amphenol CONEC 165X10139XE	E	9	9pos HD15pos	Mating Screws 4-40	Glass Filled Nylon Polyamide (PA)	Black	Two Piece Backshell	180 °	Plastic	Round	Unshielded
Amphenol CONEC 165X10139X	E	9	9pos HD15pos	IP20 Mating Screws 4-40	Polyamide (PA66) Nylon 6/6 Glass Filled	Black	Two Piece Backshell	180 °	Plastic	Round	Unshielded
Amphenol CONEC 165X10159X	B		25pos HD44pos	Mating Screws 4-40	Glass Filled Nylon Polyamide (PA)	Black	Two Piece Backshell	180 °	Plastic	Round	Unshielded
Amphenol CONEC 165X10119X							Lock					D-Sub Slide Lock	9	37
Amphenol CONEC 165X10179X	D	50	50pos HD78pos	Mating Screws 4-40	Polyamide (PA) Nylon	Black	Two Piece Backshell	180 °	Plastic	Round	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Two Piece Backshell Connector Black 180° Unshielded
