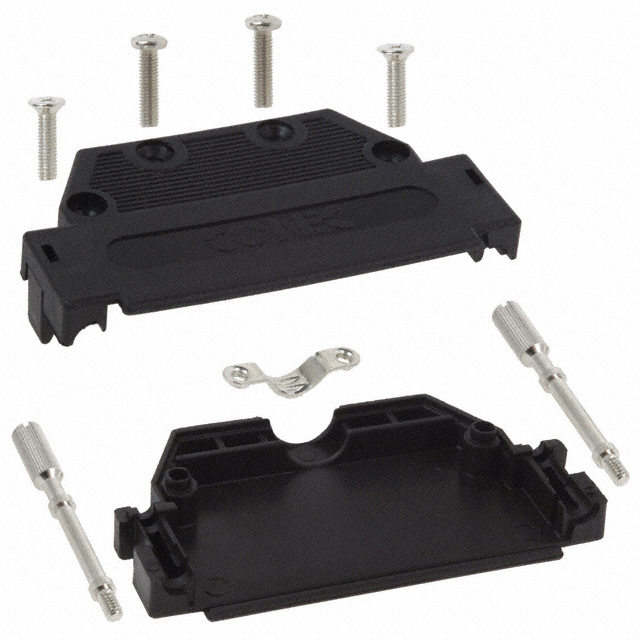

165X10169XE

Active

Amphenol CONEC

CONN BACKSHELL 37POS 180DEG BLK

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN BACKSHELL 37POS 180DEG BLK

Technical Specifications

Parameters and characteristics for this part

Specification	165X10169XE

Accessory Type	Two Piece Backshell
Cable Exit	180 °
Cable Type	Round
Color	Black
Compatible D-Sub Size	37pos, HD62pos
Compatible Shell Size	C
Features	Mating Screws 4-40
Material	Glass Filled, Polyamide (PA), Nylon
Number of Positions	37
Primary Material	Plastic
Shielding	Unshielded

Part	Compatible Shell Size	Number of Positions	Compatible D-Sub Size	Features	Material	Color	Accessory Type	Cable Exit	Primary Material	Cable Type	Shielding	For Use With/Related Products	Number of Positions [Min]	Number of Positions [Max]
Amphenol CONEC 165X10149X	A	15	15pos HD26pos	Mating Screws 4-40	Glass Filled Nylon Polyamide (PA)	Black	Two Piece Backshell	180 °	Plastic	Round	Unshielded
Amphenol CONEC 165X10169XE	C	37	37pos HD62pos	Mating Screws 4-40	Glass Filled Nylon Polyamide (PA)	Black	Two Piece Backshell	180 °	Plastic	Round	Unshielded
Amphenol CONEC 165X10149XE	A	15	15pos HD26pos	Mating Screws 4-40	Glass Filled Nylon Polyamide (PA)	Black	Two Piece Backshell	180 °	Plastic	Round	Unshielded
Amphenol CONEC 165X10139XE	E	9	9pos HD15pos	Mating Screws 4-40	Glass Filled Nylon Polyamide (PA)	Black	Two Piece Backshell	180 °	Plastic	Round	Unshielded
Amphenol CONEC 165X10139X	E	9	9pos HD15pos	IP20 Mating Screws 4-40	Polyamide (PA66) Nylon 6/6 Glass Filled	Black	Two Piece Backshell	180 °	Plastic	Round	Unshielded
Amphenol CONEC 165X10159X	B		25pos HD44pos	Mating Screws 4-40	Glass Filled Nylon Polyamide (PA)	Black	Two Piece Backshell	180 °	Plastic	Round	Unshielded
Amphenol CONEC 165X10119X							Lock					D-Sub Slide Lock	9	37
Amphenol CONEC 165X10179X	D	50	50pos HD78pos	Mating Screws 4-40	Polyamide (PA) Nylon	Black	Two Piece Backshell	180 °	Plastic	Round	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

37 Position Two Piece Backshell Connector Black 180° Unshielded

Technical documentation and resources
