35-525-100-S-A2
ActiveTE Connectivity Raychem Cable Protection

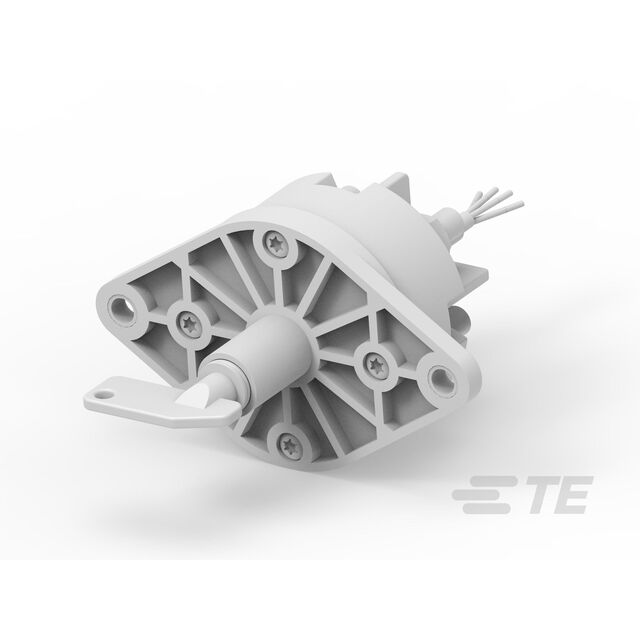

BATTERY DISCONNECTOR 35-525-100-S-A2
Deep-Dive with AI
Search across all available documentation for this part.
35-525-100-S-A2
ActiveTE Connectivity Raychem Cable Protection
BATTERY DISCONNECTOR 35-525-100-S-A2
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 35-525-100-S-A2 |
|---|---|
| Circuit | DPST-NO, SPDT |
| Current Rating (Amps) | 500 A |
| Depth Behind Flange | 73 mm |
| Features | Long Lever |
| Illumination | Non-Illuminated |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Number of Positions | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Switch Function | On-On, On-Off |
| Termination Style | Stud |
| Type | Battery Disconnect |
| Voltage Rating - DC | 32 V |
KISSLING Series 35 Series
| Part | Illumination | Features | Ingress Protection | Voltage Rating - DC | Current Rating (Amps) | Depth Behind Flange | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Number of Positions | Type | Circuit | Accessory Type | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Non-Illuminated | Long Lever | IP67 - Dust Tight Waterproof | 32 V | 500 A | 72.5 mm | Off-On | 85 °C | -40 °C | Stud | 2 | Battery Disconnect | DPST-NO | ||
TE Connectivity Raychem Cable Protection | Non-Illuminated | Long Lever | IP67 - Dust Tight Waterproof | 32 V | 200 A | 46 mm | Off-On | 85 °C | -40 °C | Stud | 2 | Battery Disconnect | SPST-NO | ||
TE Connectivity Raychem Cable Protection | Non-Illuminated | Long Lever | IP67 - Dust Tight Waterproof | 32 V | 500 A | 73 mm | Off-On | 85 °C | -40 °C | Stud | 2 | Battery Disconnect | DPST-NO | ||
TE Connectivity Raychem Cable Protection | Lever | ||||||||||||||
TE Connectivity Raychem Cable Protection | Non-Illuminated | Long Lever | IP67 - Dust Tight Waterproof | 32 V | 500 A | 73 mm | On-Off On-On | 85 °C | -40 °C | Stud | 2 | Battery Disconnect | DPST-NO SPDT | ||
TE Connectivity Raychem Cable Protection | Non-Illuminated | Long Lever | IP67 - Dust Tight Waterproof | 32 V | 400 A | On-Off | 85 °C | -40 °C | Stud | 2 | Battery Disconnect | DPST | 20 V | ||
TE Connectivity Raychem Cable Protection | Non-Illuminated | Long Lever | IP67 - Dust Tight Waterproof | 32 V | 200 A | 46.5 mm | Off-On | 85 °C | -40 °C | Stud | 2 | Battery Disconnect | SPST-NO | ||
TE Connectivity Raychem Cable Protection | Non-Illuminated | Long Lever | IP67 - Dust Tight Waterproof | 32 V | 500 A | On-Off | 85 °C | -40 °C | Stud | 2 | Battery Disconnect | SPST | 20 V | ||
TE Connectivity Raychem Cable Protection | Non-Illuminated | Long Lever | IP67 - Dust Tight Waterproof | 32 V | 500 A | 73 mm | Off-On | 85 °C | -40 °C | Stud | 2 | Battery Disconnect | DPST-NO | ||
TE Connectivity Raychem Cable Protection | Non-Illuminated | Long Lever | IP67 - Dust Tight Waterproof | 32 V | 500 A | Off-On | 85 °C | -40 °C | Stud | 2 | Battery Disconnect | DPST-NO |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 12 | $ 280.77 | |
Description
General part information
KISSLING Series 35 Series
500 A Battery Disconnect Switch, 32 VDC, 2 Pole, Lever, 1 Auxillary Positions, Long Flange, KISSLING Series 35
