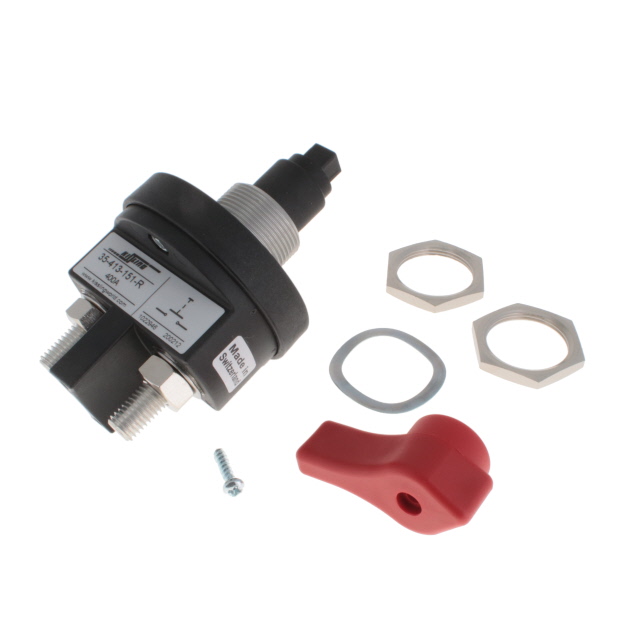

35-413-151-R

Active

TE Connectivity Raychem Cable Protection

SWITCH SELECT 2POS DPST 400A 20V

Deep-Dive with AI

Search across all available documentation for this part.

35-413-151-R

Active

TE Connectivity Raychem Cable Protection

SWITCH SELECT 2POS DPST 400A 20V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	35-413-151-R

Circuit	DPST
Current Rating (Amps)	400 A
Features	Long Lever
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Switch Function	On-Off
Termination Style	Stud
Type	Battery Disconnect
Voltage Rating - AC	20 V
Voltage Rating - DC	32 V

KISSLING Series 35 Series

Part	Illumination	Features	Ingress Protection	Voltage Rating - DC	Current Rating (Amps)	Depth Behind Flange	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Number of Positions	Type	Circuit	Accessory Type	Voltage Rating - AC
TE Connectivity Raychem Cable Protection 35-521-140-R	Non-Illuminated	Long Lever	IP67 - Dust Tight Waterproof	32 V	500 A	72.5 mm	Off-On	85 °C	-40 °C	Stud	2	Battery Disconnect	DPST-NO
TE Connectivity Raychem Cable Protection 35-210-051-R	Non-Illuminated	Long Lever	IP67 - Dust Tight Waterproof	32 V	200 A	46 mm	Off-On	85 °C	-40 °C	Stud	2	Battery Disconnect	SPST-NO
TE Connectivity Raychem Cable Protection 35-524-230-R-900	Non-Illuminated	Long Lever	IP67 - Dust Tight Waterproof	32 V	500 A	73 mm	Off-On	85 °C	-40 °C	Stud	2	Battery Disconnect	DPST-NO
TE Connectivity Raychem Cable Protection 35-200-014														Lever
TE Connectivity Raychem Cable Protection 35-525-100-S-A2	Non-Illuminated	Long Lever	IP67 - Dust Tight Waterproof	32 V	500 A	73 mm	On-Off On-On	85 °C	-40 °C	Stud	2	Battery Disconnect	DPST-NO SPDT
TE Connectivity Raychem Cable Protection 35-413-151-R	Non-Illuminated	Long Lever	IP67 - Dust Tight Waterproof	32 V	400 A		On-Off	85 °C	-40 °C	Stud	2	Battery Disconnect	DPST		20 V
TE Connectivity Raychem Cable Protection 35-210-100-R	Non-Illuminated	Long Lever	IP67 - Dust Tight Waterproof	32 V	200 A	46.5 mm	Off-On	85 °C	-40 °C	Stud	2	Battery Disconnect	SPST-NO
TE Connectivity Raychem Cable Protection 35-514-231-R-901	Non-Illuminated	Long Lever	IP67 - Dust Tight Waterproof	32 V	500 A		On-Off	85 °C	-40 °C	Stud	2	Battery Disconnect	SPST		20 V
TE Connectivity Raychem Cable Protection 35-524-241-R	Non-Illuminated	Long Lever	IP67 - Dust Tight Waterproof	32 V	500 A	73 mm	Off-On	85 °C	-40 °C	Stud	2	Battery Disconnect	DPST-NO
TE Connectivity Raychem Cable Protection 35-524-230-R-903	Non-Illuminated	Long Lever	IP67 - Dust Tight Waterproof	32 V	500 A		Off-On	85 °C	-40 °C	Stud	2	Battery Disconnect	DPST-NO

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 148.74
		5	$ 127.69
		10	$ 119.52
		25	$ 109.45
		50	$ 102.35
		100	$ 99.97

Description

General part information

KISSLING Series 35 Series

Selector Switch 2 Position DPST 400A (AC/DC) 20 V Panel Mount

Documents

Technical documentation and resources

No documents available
