SSL-LXA228SRC

Active

Lumex Opto/Components Inc.

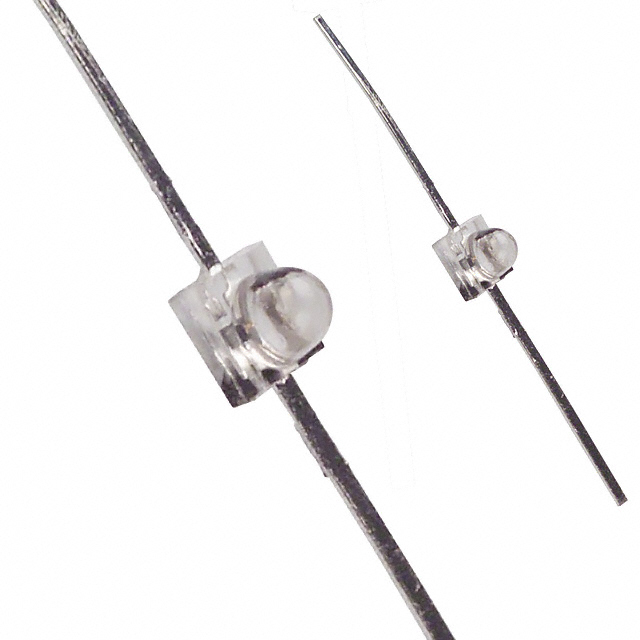

LED RED CLEAR AXIAL T/H AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

SSL-LXA228SRC

Active

Lumex Opto/Components Inc.

LED RED CLEAR AXIAL T/H AXIAL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSL-LXA228SRC	SSL-LXA228 Series

Color	Red	Yellow, Red, Green, Blue, Amber
Configuration	Standard	Standard
Current - Test	20 mA	20 mA
Height (Max)	-	2.83 - 3.13 mm
Height (Max) [Max]	2.8 mm	2.8 - 2.9 mm
Lens Color	Colorless	Colorless, Red, Green, Yellow
Lens Size	-	T-3/4
Lens Size [diameter]	1.9 mm	1.9 - 2 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Clear	Clear, Diffused
Millicandela Rating	600 mcd	4 - 700 mcd
Mounting Type	Through Hole, Axial	Surface Mount, Surface Mount, Bottom Entry, Through Hole, Axial
Package / Case	Axial, Flat Leads	2-SMD, Gull Wing, 2-SMD, Yoke Bend, Axial, Flat Leads, 2-SMD, Z-Bend, Axial
Size / Dimension [x]	2.5 mm	2.5 mm
Size / Dimension [y]	2 mm	2 mm
Supplier Device Package	Axial	Axial, Yoke Lead, Gull Wing, Z-Bend
Viewing Angle	25 °	25 - 50 °
Voltage - Forward (Vf) (Typ)	1.7 V	1.7 - 3.5 V
Wavelength - Peak	660 nm	565 - 660 nm
Wavelength - Peak	-	640 nm

SSL-LXA228 Series

LED YELLOW CLEAR AXIAL SMD

Part	Wavelength - Peak	Height (Max) [Max] [z]	Lens Color	Package / Case	Mounting Type	Lens Style	Lens Size [diameter]	Viewing Angle	Voltage - Forward (Vf) (Typ)	Configuration	Size / Dimension [y]	Size / Dimension [x]	Color	Current - Test	Supplier Device Package	Lens Transparency	Millicandela Rating	Height (Max) [Max]
Lumex Opto/Components Inc. SSL-LXA228SYC-TR11	590 nm	3 mm	Colorless	2-SMD, Gull Wing	Surface Mount	Round with Domed Top	1.9 mm	25 °	2 V	Standard	2 mm	2.5 mm	Yellow	20 mA	Axial	Clear	300 mcd
Lumex Opto/Components Inc. SSL-LXA228LID-TR21	635 nm		Red	2-SMD, Yoke Bend	Surface Mount, Bottom Entry	Round with Domed Top	1.9 mm	50 °	2 V	Standard	2 mm	2.5 mm	Red	20 mA	Yoke Lead	Diffused	12 mcd	2.9 mm
Lumex Opto/Components Inc. SSL-LXA228IC-TR21	635 nm		Colorless	2-SMD, Yoke Bend	Surface Mount, Bottom Entry	Round with Domed Top	1.9 mm	25 °	2 V	Standard	2 mm	2.5 mm	Red	20 mA	Axial	Clear	60 mcd	2.9 mm
Lumex Opto/Components Inc. SSL-LXA228SUGCTR11		3 mm	Colorless	2-SMD, Gull Wing	Surface Mount	Round with Domed Top	1.9 mm	25 °	2.2 V	Standard	2 mm	2.5 mm	Green	20 mA	Axial	Clear	200 mcd
Lumex Opto/Components Inc. SSL-LXA228IC	635 nm		Colorless	Axial, Flat Leads	Axial, Through Hole	Round with Domed Top	1.9 mm	25 °	2 V	Standard	2 mm	2.5 mm	Red	20 mA	Axial	Clear	30 mcd	2.8 mm
Lumex Opto/Components Inc. SSL-LXA228GC-TR11	565 nm	3 mm	Colorless	2-SMD, Gull Wing	Surface Mount	Round with Domed Top	1.9 mm	25 °	2.2 V	Standard	2 mm	2.5 mm	Green	20 mA	Gull Wing	Clear	30 mcd
Lumex Opto/Components Inc. SSL-LXA228SRC	660 nm		Colorless	Axial, Flat Leads	Axial, Through Hole	Round with Domed Top	1.9 mm	25 °	1.7 V	Standard	2 mm	2.5 mm	Red	20 mA	Axial	Clear	600 mcd	2.8 mm
Lumex Opto/Components Inc. SSL-LXA228SOC-TR11	620 nm	3 mm	Colorless	2-SMD, Gull Wing	Surface Mount	Round with Domed Top	1.9 mm	25 °	2 V	Standard	2 mm	2.5 mm		20 mA	Axial	Clear	700 mcd
Lumex Opto/Components Inc. SSL-LXA228SRC-TR31	660 nm		Colorless	2-SMD, Z-Bend	Surface Mount, Bottom Entry	Round with Domed Top	1.9 mm	25 °	2 V	Standard	2 mm	2.5 mm	Red	20 mA	Axial	Clear	350 mcd	2.9 mm
Lumex Opto/Components Inc. SSL-LXA228SRD	660 nm		Red	Axial, Flat Leads	Axial, Through Hole	Round with Domed Top	1.9 mm	50 °	1.7 V	Standard	2 mm	2.5 mm	Red	20 mA	Axial	Diffused	150 mcd	2.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.79

Description

General part information

SSL-LXA228 Series

Red LED Indication - Discrete 1.7V Axial, Flat Leads
