SSL-LXA228LID-TR21

Active

Lumex Opto/Components Inc.

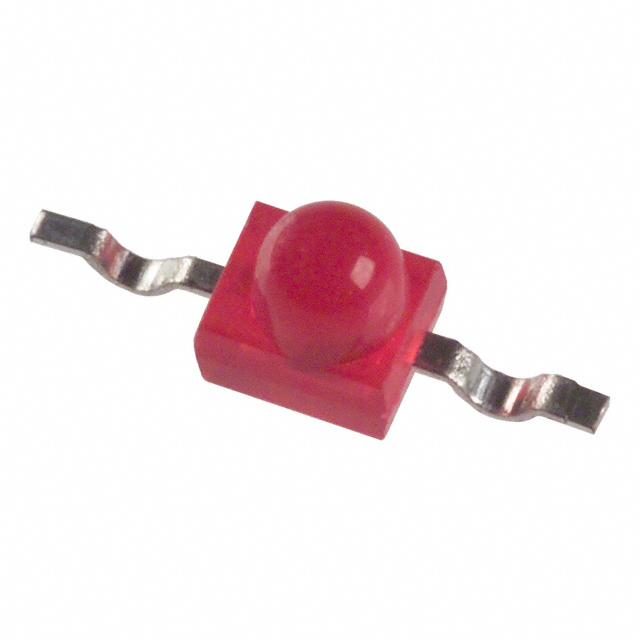

LED RED DIFF YOKE LEAD SMD BOT

Deep-Dive with AI

Search across all available documentation for this part.

SSL-LXA228LID-TR21

Active

Lumex Opto/Components Inc.

LED RED DIFF YOKE LEAD SMD BOT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SSL-LXA228 Series

Red LED Indication - Discrete 2V 2-SMD, Yoke Bend

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSL-LXA228LID-TR21	SSL-LXA228 Series

Color	Red	Yellow, Red, Green, Blue, Amber
Configuration	Standard	Standard
Current - Test	20 mA	20 mA
Height (Max)	-	2.83 - 3.13 mm
Height (Max) [Max]	2.9 mm	2.8 - 2.9 mm
Lens Color	Red	Colorless, Red, Green, Yellow
Lens Size	-	T-3/4
Lens Size [diameter]	1.9 mm	1.9 - 2 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Diffused	Clear, Diffused
Millicandela Rating	12 mcd	4 - 700 mcd
Mounting Type	Surface Mount, Bottom Entry	Surface Mount, Surface Mount, Bottom Entry, Through Hole, Axial
Package / Case	2-SMD, Yoke Bend	2-SMD, Gull Wing, 2-SMD, Yoke Bend, Axial, Flat Leads, 2-SMD, Z-Bend, Axial
Size / Dimension [x]	2.5 mm	2.5 mm
Size / Dimension [y]	2 mm	2 mm
Supplier Device Package	Yoke Lead	Axial, Yoke Lead, Gull Wing, Z-Bend
Viewing Angle	50 °	25 - 50 °
Voltage - Forward (Vf) (Typ)	2 V	1.7 - 3.5 V
Wavelength - Peak	635 nm	565 - 660 nm
Wavelength - Peak	-	640 nm

SSL-LXA228 Series

LED YELLOW CLEAR AXIAL SMD

Part	Wavelength - Peak	Height (Max) [Max] [z]	Lens Color	Package / Case	Mounting Type	Lens Style	Lens Size [diameter]	Viewing Angle	Voltage - Forward (Vf) (Typ)	Configuration	Size / Dimension [y]	Size / Dimension [x]	Color	Current - Test	Supplier Device Package	Lens Transparency	Millicandela Rating	Height (Max) [Max]
Lumex Opto/Components Inc. SSL-LXA228SYC-TR11	590 nm	3 mm	Colorless	2-SMD, Gull Wing	Surface Mount	Round with Domed Top	1.9 mm	25 °	2 V	Standard	2 mm	2.5 mm	Yellow	20 mA	Axial	Clear	300 mcd
Lumex Opto/Components Inc. SSL-LXA228LID-TR21	635 nm		Red	2-SMD, Yoke Bend	Surface Mount, Bottom Entry	Round with Domed Top	1.9 mm	50 °	2 V	Standard	2 mm	2.5 mm	Red	20 mA	Yoke Lead	Diffused	12 mcd	2.9 mm
Lumex Opto/Components Inc. SSL-LXA228IC-TR21	635 nm		Colorless	2-SMD, Yoke Bend	Surface Mount, Bottom Entry	Round with Domed Top	1.9 mm	25 °	2 V	Standard	2 mm	2.5 mm	Red	20 mA	Axial	Clear	60 mcd	2.9 mm
Lumex Opto/Components Inc. SSL-LXA228SUGCTR11		3 mm	Colorless	2-SMD, Gull Wing	Surface Mount	Round with Domed Top	1.9 mm	25 °	2.2 V	Standard	2 mm	2.5 mm	Green	20 mA	Axial	Clear	200 mcd
Lumex Opto/Components Inc. SSL-LXA228IC	635 nm		Colorless	Axial, Flat Leads	Axial, Through Hole	Round with Domed Top	1.9 mm	25 °	2 V	Standard	2 mm	2.5 mm	Red	20 mA	Axial	Clear	30 mcd	2.8 mm
Lumex Opto/Components Inc. SSL-LXA228GC-TR11	565 nm	3 mm	Colorless	2-SMD, Gull Wing	Surface Mount	Round with Domed Top	1.9 mm	25 °	2.2 V	Standard	2 mm	2.5 mm	Green	20 mA	Gull Wing	Clear	30 mcd
Lumex Opto/Components Inc. SSL-LXA228SRC	660 nm		Colorless	Axial, Flat Leads	Axial, Through Hole	Round with Domed Top	1.9 mm	25 °	1.7 V	Standard	2 mm	2.5 mm	Red	20 mA	Axial	Clear	600 mcd	2.8 mm
Lumex Opto/Components Inc. SSL-LXA228SOC-TR11	620 nm	3 mm	Colorless	2-SMD, Gull Wing	Surface Mount	Round with Domed Top	1.9 mm	25 °	2 V	Standard	2 mm	2.5 mm		20 mA	Axial	Clear	700 mcd
Lumex Opto/Components Inc. SSL-LXA228SRC-TR31	660 nm		Colorless	2-SMD, Z-Bend	Surface Mount, Bottom Entry	Round with Domed Top	1.9 mm	25 °	2 V	Standard	2 mm	2.5 mm	Red	20 mA	Axial	Clear	350 mcd	2.9 mm
Lumex Opto/Components Inc. SSL-LXA228SRD	660 nm		Red	Axial, Flat Leads	Axial, Through Hole	Round with Domed Top	1.9 mm	50 °	1.7 V	Standard	2 mm	2.5 mm	Red	20 mA	Axial	Diffused	150 mcd	2.8 mm
