R161010000

Active

Radiall USA, Inc.

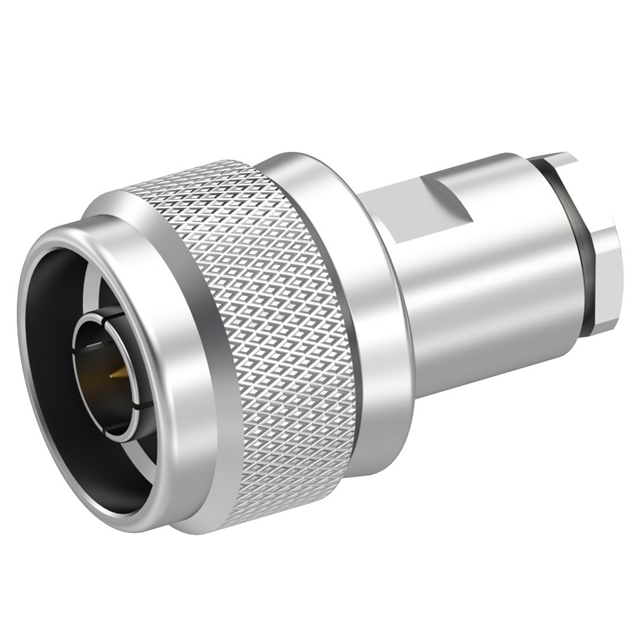

N M STR PF5/50 C50

Search across all available documentation for this part.

Active

Radiall USA, Inc.

N M STR PF5/50 C50

Technical Specifications

Parameters and characteristics for this part

Specification	R161010000

Body Material	Brass
Cable Group	400, 223, 141, RG-58, 142
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Includes	1 Gasket, 2 Washer, 1 Braid Clamp, 1 Connector, 1 Sleeve, 1 Clamp Nut, 1 Contact
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp
Voltage Rating	850 V

Part	Center Contact Plating	Dielectric Material	Body Finish	Housing Color	Cable Group	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Connector Type	Voltage Rating	Contact Termination	Insertion Loss	Center Contact Material	Impedance	Connector Style	Frequency - Max [Max]	Body Material	Shield Termination	Mating Cycles	Ingress Protection	Mounting Type	Includes
Radiall USA, Inc. R161018000	Gold	Polytetrafluoroethylene (PTFE)	White Bronze	Silver	144 165 213 214 216 225 393 RG-11	155 °C	-55 °C	1	Male Pin Plug	850 V	Solder	0.15 dB	Brass	50 Ohms	N Type	11 GHz	Brass	Clamp	500	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)
Radiall USA, Inc. R161010000	Gold	Polytetrafluoroethylene (PTFE)			141 142 223 400 RG-58	155 °C	-55 °C	1	Male Pin Plug	850 V	Solder		Brass	50 Ohms	N Type	11 GHz	Brass	Clamp	500		Free Hanging (In-Line)	1 Braid Clamp 1 Clamp Nut 1 Connector 1 Contact 1 Gasket 1 Sleeve 2 Washer
Radiall USA, Inc. R161012000	Gold	Polytetrafluoroethylene (PTFE)	White Bronze	Silver	62 71 RG-59	155 °C	-55 °C	1	Male Pin Plug	850 V	Solder	0.15 dB	Brass	50 Ohms	N Type	11 GHz	Brass	Clamp	500	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)
Radiall USA, Inc. R161018000W	Gold	Polytetrafluoroethylene (PTFE)	White Bronze	Silver	144 165 213 214 216 225 393 RG-11	155 °C	-55 °C	1	Male Pin Plug	850 V	Solder	0.15 dB	Brass	50 Ohms	N Type	11 GHz	Brass	Clamp	500	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
