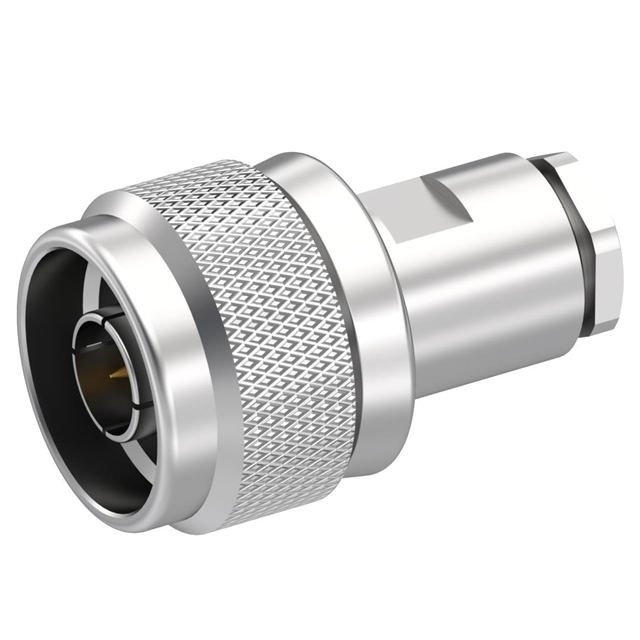

R161018000

Active

Radiall USA, Inc.

N / STRAIGHT PLUG CLAMP TYPE CAB

Search across all available documentation for this part.

Active

Radiall USA, Inc.

N / STRAIGHT PLUG CLAMP TYPE CAB

Technical Specifications

Parameters and characteristics for this part

Specification	R161018000

Body Finish	White Bronze
Body Material	Brass
Cable Group	144, 225, 214, 393, 165, 213, RG-11, 216
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp
Voltage Rating	850 V

Part	Center Contact Plating	Dielectric Material	Body Finish	Housing Color	Cable Group	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Connector Type	Voltage Rating	Contact Termination	Insertion Loss	Center Contact Material	Impedance	Connector Style	Frequency - Max [Max]	Body Material	Shield Termination	Mating Cycles	Ingress Protection	Mounting Type	Includes
Radiall USA, Inc. R161018000	Gold	Polytetrafluoroethylene (PTFE)	White Bronze	Silver	144 165 213 214 216 225 393 RG-11	155 °C	-55 °C	1	Male Pin Plug	850 V	Solder	0.15 dB	Brass	50 Ohms	N Type	11 GHz	Brass	Clamp	500	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)
Radiall USA, Inc. R161010000	Gold	Polytetrafluoroethylene (PTFE)			141 142 223 400 RG-58	155 °C	-55 °C	1	Male Pin Plug	850 V	Solder		Brass	50 Ohms	N Type	11 GHz	Brass	Clamp	500		Free Hanging (In-Line)	1 Braid Clamp 1 Clamp Nut 1 Connector 1 Contact 1 Gasket 1 Sleeve 2 Washer
Radiall USA, Inc. R161012000	Gold	Polytetrafluoroethylene (PTFE)	White Bronze	Silver	62 71 RG-59	155 °C	-55 °C	1	Male Pin Plug	850 V	Solder	0.15 dB	Brass	50 Ohms	N Type	11 GHz	Brass	Clamp	500	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)
Radiall USA, Inc. R161018000W	Gold	Polytetrafluoroethylene (PTFE)	White Bronze	Silver	144 165 213 214 216 225 393 RG-11	155 °C	-55 °C	1	Male Pin Plug	850 V	Solder	0.15 dB	Brass	50 Ohms	N Type	11 GHz	Brass	Clamp	500	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 26.16

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
