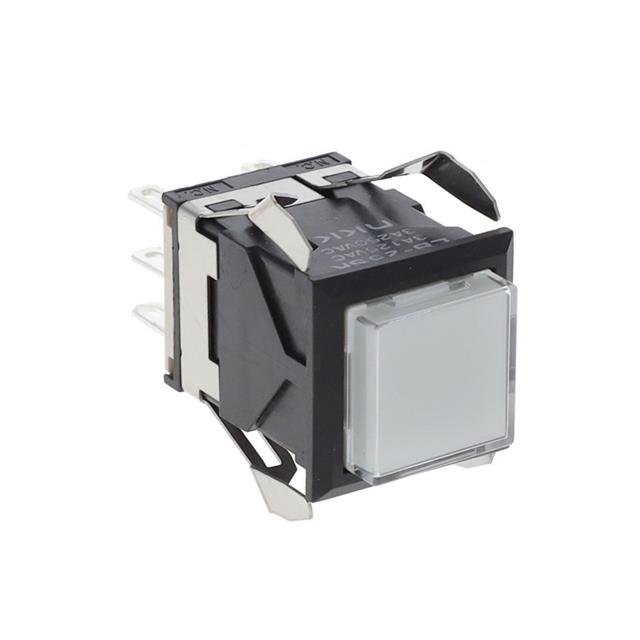

LB25SKW01-5F12-JB
ActiveNKK Switches
STANDARD SIZE PANEL SEAL PUSHBUTTON
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LB25SKW01-5F12-JB
ActiveNKK Switches
STANDARD SIZE PANEL SEAL PUSHBUTTON
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LB25SKW01-5F12-JB |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Square |
| Circuit | DPDT |
| Color - Actuator/Cap | Clear |
| Current Rating (Amps) | 3 A |
| Electrical Life | 100000 Cycles |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 12 VDC |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 16.2 mm |
| Panel Cutout Dimensions [y] | 16.2 mm |
| Switch Function | On-Mom |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
LB25SKW Series
| Part | Actuator Marking | Voltage Rating - AC | Mounting Type | Current Rating (Amps) | Voltage Rating - DC | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Circuit | Actuator Type | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Mechanical Life | Type | Termination Style | Termination Style | Termination Style | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | No Marking | 125 V | Panel Mount Snap-In | 3 A | 30 V | 16.2 mm | 16.2 mm | DPDT | Plunger for Cap | 100000 Cycles | 70 °C | -25 °C | On-Mom | 1000000 Cycles | Standard | 0.11 in | Quick Connect Solder | 2.8 mm | |||
NKK Switches | No Marking | 125 V | Panel Mount Snap-In | 3 A | 30 V | 16.2 mm | 16.2 mm | DPDT | Button Square | 100000 Cycles | 70 °C | -25 °C | On-Mom | 1000000 Cycles | Standard | 0.11 in | Quick Connect Solder | 2.8 mm | Green | ||
NKK Switches | No Marking | 125 V | Panel Mount Snap-In | 3 A | 30 V | 16.2 mm | 16.2 mm | DPDT | Button Square | 100000 Cycles | 50 °C | -25 °C | On-Mom | 1000000 Cycles | Illuminated Standard | 0.11 in | Quick Connect Solder | 2.8 mm | Black | LED Red | 1.9 VDC |
NKK Switches | No Marking | 125 V | Panel Mount Snap-In | 3 A | 30 V | 16.2 mm | 16.2 mm | DPDT | Button Square | 100000 Cycles | 50 °C | -25 °C | On-Mom | 1000000 Cycles | Illuminated Standard | 0.11 in | Quick Connect Solder | 2.8 mm | Clear | Amber LED | 24 V |
NKK Switches | No Marking | 125 V | Panel Mount Snap-In | 3 A | 30 V | 16.2 mm | 16.2 mm | DPDT | Button Square | 100000 Cycles | 50 °C | -25 °C | On-Mom | 1000000 Cycles | Illuminated Standard | 0.11 in | Quick Connect Solder | 2.8 mm | Clear | Green LED | 2.1 VDC |
NKK Switches | No Marking | 125 V | Panel Mount Snap-In | 3 A | 30 V | 16.2 mm | 16.2 mm | DPDT | Button Square | 100000 Cycles | 50 °C | -25 °C | On-Mom | 1000000 Cycles | Illuminated Standard | 0.11 in | Quick Connect Solder | 2.8 mm | Clear | Amber LED | 5 VDC |
NKK Switches | No Marking | 125 V | Panel Mount Snap-In | 3 A | 30 V | 16.2 mm | 16.2 mm | DPDT | Button Square | 100000 Cycles | 50 °C | -25 °C | On-Mom | 1000000 Cycles | Illuminated Standard | 0.11 in | Quick Connect Solder | 2.8 mm | Clear (Red Filter/Diffuser) | LED Red | 24 V |
NKK Switches | No Marking | 125 V | Panel Mount Snap-In | 3 A | 30 V | 16.2 mm | 16.2 mm | DPDT | Button Square | 100000 Cycles | 50 °C | -25 °C | On-Mom | 1000000 Cycles | Illuminated Standard | 0.11 in | Quick Connect Solder | 2.8 mm | Clear | Green LED | 12 VDC |
NKK Switches | No Marking | 125 V | Panel Mount Snap-In | 3 A | 30 V | 16.2 mm | 16.2 mm | DPDT | Button Square | 100000 Cycles | 50 °C | -25 °C | On-Mom | 1000000 Cycles | Illuminated Standard | 0.11 in | Quick Connect Solder | 2.8 mm | Red | LED Red | 1.9 VDC |
NKK Switches | No Marking | 125 V | Panel Mount Snap-In | 3 A | 30 V | 16.2 mm | 16.2 mm | DPDT | Button Square | 100000 Cycles | 50 °C | -25 °C | On-Mom | 1000000 Cycles | Illuminated Standard | 0.11 in | Quick Connect Solder | 2.8 mm | Clear | Green LED | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LB25SKW Series
Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Snap-In
