LB25SKW01

Active

NKK Switches

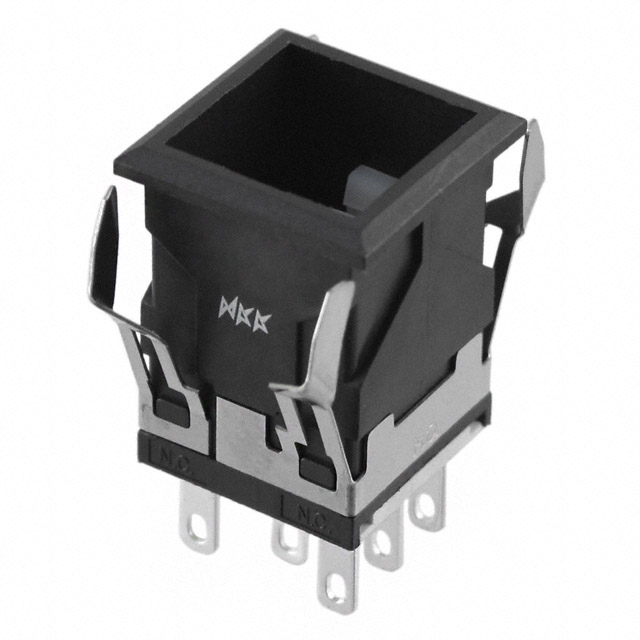

PUSHBUTTON SWITCH, LB SERIES, DPDT, ON-(ON), PLUNGER FOR CAP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet +2

LB25SKW01

Active

NKK Switches

PUSHBUTTON SWITCH, LB SERIES, DPDT, ON-(ON), PLUNGER FOR CAP

Deep-Dive with AI

DocumentsDatasheet Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LB25SKW01

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	DPDT
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	16.2 mm
Panel Cutout Dimensions [y]	16.2 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

LB25SKW Series

Part	Actuator Marking	Voltage Rating - AC	Mounting Type	Current Rating (Amps)	Voltage Rating - DC	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Circuit	Actuator Type	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Mechanical Life	Type	Termination Style	Termination Style	Termination Style	Color - Actuator/Cap	Illumination Type, Color	Illumination Voltage (Nominal)
NKK Switches LB25SKW01	No Marking	125 V	Panel Mount Snap-In	3 A	30 V	16.2 mm	16.2 mm	DPDT	Plunger for Cap	100000 Cycles	70 °C	-25 °C	On-Mom	1000000 Cycles	Standard	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches LB25SKW01-F	No Marking	125 V	Panel Mount Snap-In	3 A	30 V	16.2 mm	16.2 mm	DPDT	Button Square	100000 Cycles	70 °C	-25 °C	On-Mom	1000000 Cycles	Standard	0.11 in	Quick Connect Solder	2.8 mm	Green
NKK Switches LB25SKW01-1C-A	No Marking	125 V	Panel Mount Snap-In	3 A	30 V	16.2 mm	16.2 mm	DPDT	Button Square	100000 Cycles	50 °C	-25 °C	On-Mom	1000000 Cycles	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	Black	LED Red	1.9 VDC
NKK Switches LB25SKW01-5D24-JB	No Marking	125 V	Panel Mount Snap-In	3 A	30 V	16.2 mm	16.2 mm	DPDT	Button Square	100000 Cycles	50 °C	-25 °C	On-Mom	1000000 Cycles	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	Clear	Amber LED	24 V
NKK Switches LB25SKW01-5F-JB	No Marking	125 V	Panel Mount Snap-In	3 A	30 V	16.2 mm	16.2 mm	DPDT	Button Square	100000 Cycles	50 °C	-25 °C	On-Mom	1000000 Cycles	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	Clear	Green LED	2.1 VDC
NKK Switches LB25SKW01-5D05-JB	No Marking	125 V	Panel Mount Snap-In	3 A	30 V	16.2 mm	16.2 mm	DPDT	Button Square	100000 Cycles	50 °C	-25 °C	On-Mom	1000000 Cycles	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	Clear	Amber LED	5 VDC
NKK Switches LB25SKW01-5C24-JC	No Marking	125 V	Panel Mount Snap-In	3 A	30 V	16.2 mm	16.2 mm	DPDT	Button Square	100000 Cycles	50 °C	-25 °C	On-Mom	1000000 Cycles	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	Clear (Red Filter/Diffuser)	LED Red	24 V
NKK Switches LB25SKW01-5F12-JB	No Marking	125 V	Panel Mount Snap-In	3 A	30 V	16.2 mm	16.2 mm	DPDT	Button Square	100000 Cycles	50 °C	-25 °C	On-Mom	1000000 Cycles	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	Clear	Green LED	12 VDC
NKK Switches LB25SKW01-1C-C	No Marking	125 V	Panel Mount Snap-In	3 A	30 V	16.2 mm	16.2 mm	DPDT	Button Square	100000 Cycles	50 °C	-25 °C	On-Mom	1000000 Cycles	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	Red	LED Red	1.9 VDC
NKK Switches LB25SKW01-5F12-JF	No Marking	125 V	Panel Mount Snap-In	3 A	30 V	16.2 mm	16.2 mm	DPDT	Button Square	100000 Cycles	50 °C	-25 °C	On-Mom	1000000 Cycles	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	Clear	Green LED	12 VDC
