FD4D012A9E

Active

Belden Inc.

CBL FIBER OPTIC

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC

Technical Specifications

Parameters and characteristics for this part

Specification	FD4D012A9E

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	50 µm
Features	12
Features	Armored
Jacket (Insulation) Diameter [diameter]	0.48 in
Jacket (Insulation) Diameter [diameter]	12.19 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Violet
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Ratings	OFCP
Style	Multiple Fibers
Tensile Strength	20.4 kg
Type	Multimode

Part	Features	Features	Type	Cladding Diameter [diameter]	Ratings	Core Diameter [diameter]	Tensile Strength	Jacket (Insulation) Material	Style	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Belden Inc. FD4D012F9	12	Armored	Multimode	125 µm	OFCR	50 µm	20.4 kg	Poly-Vinyl Chloride (PVC)	Multiple Fibers	-40 °C	70 °C	Black	13.46 mm	0.53 in
Belden Inc. FD4D012A9E	12	Armored	Multimode	125 µm	OFCP	50 µm	20.4 kg	Poly-Vinyl Chloride (PVC)	Multiple Fibers	-40 °C	70 °C	Violet	12.19 mm	0.48 in
Belden Inc. FD4D012L9	12	Rip Cord	Multimode	125 µm	OFNR	50 µm	20.4 kg		Multiple Fibers	-40 °C	70 °C	Black
Belden Inc. FD4D012L9A	12	Rip Cord	Multimode	125 µm	OFNR	50 µm	20.4 kg		Multiple Fibers	-40 °C	70 °C	Aqua

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 5.52

General part information

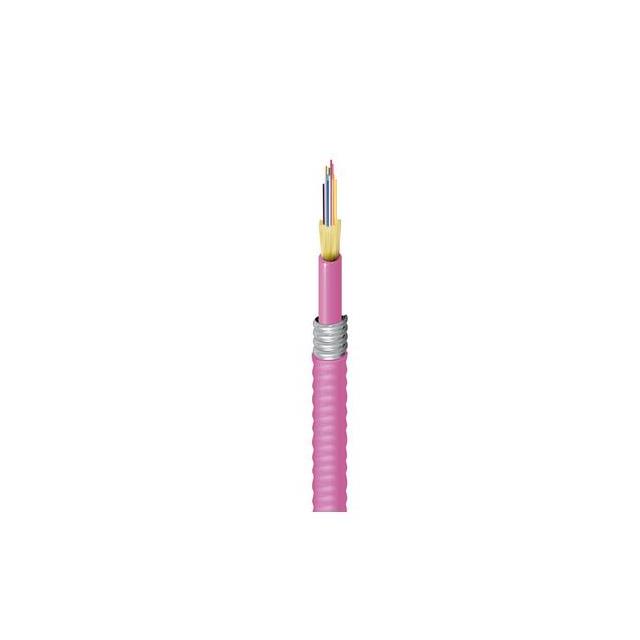

Fiber Optic Cable Violet Multimode 125µm
