FD4D012L9A

Active

Belden Inc.

CBL FIBER OPTIC

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC

Technical Specifications

Parameters and characteristics for this part

Part	Features	Features	Type	Cladding Diameter [diameter]	Ratings	Core Diameter [diameter]	Tensile Strength	Jacket (Insulation) Material	Style	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Belden Inc. FD4D012F9	12	Armored	Multimode	125 µm	OFCR	50 µm	20.4 kg	Poly-Vinyl Chloride (PVC)	Multiple Fibers	-40 °C	70 °C	Black	13.46 mm	0.53 in
Belden Inc. FD4D012A9E	12	Armored	Multimode	125 µm	OFCP	50 µm	20.4 kg	Poly-Vinyl Chloride (PVC)	Multiple Fibers	-40 °C	70 °C	Violet	12.19 mm	0.48 in
Belden Inc. FD4D012L9	12	Rip Cord	Multimode	125 µm	OFNR	50 µm	20.4 kg		Multiple Fibers	-40 °C	70 °C	Black
Belden Inc. FD4D012L9A	12	Rip Cord	Multimode	125 µm	OFNR	50 µm	20.4 kg		Multiple Fibers	-40 °C	70 °C	Aqua

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 5.36

General part information

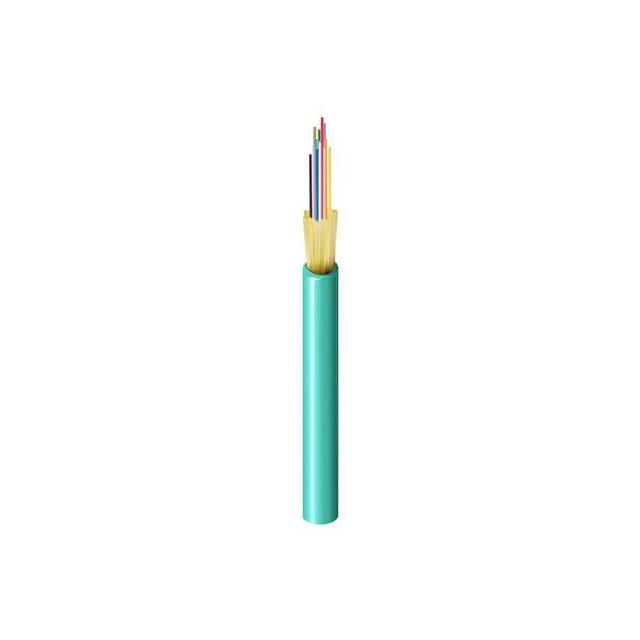

Fiber Optic Cable Aqua Multimode 125µm

Technical documentation and resources
