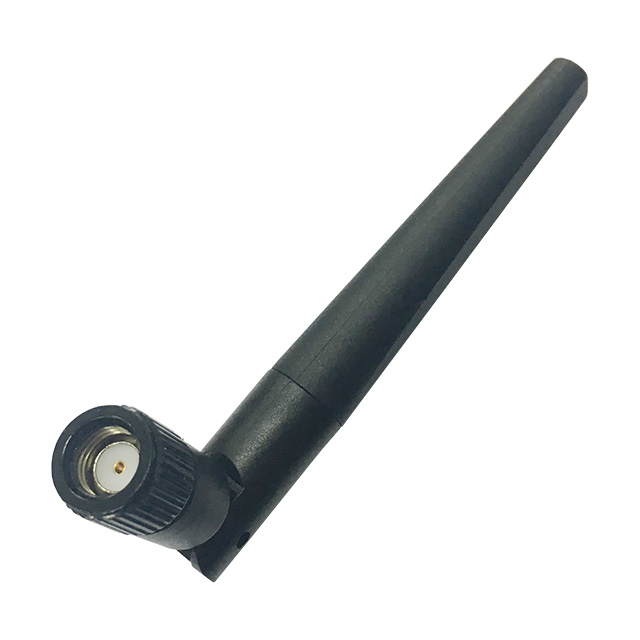

PRO-EX-333

Active

Abracon LLC

RF ANT 2.4GHZ WHIP TILT RP-SMA

Search across all available documentation for this part.

Active

Abracon LLC

RF ANT 2.4GHZ WHIP TILT RP-SMA

Technical Specifications

Parameters and characteristics commom to parts in this series

RF ANT 2.4GHZ WHIP TILT SMA MALE

Part	Height (Max) [Max]	Height (Max) [Max]	Mounting Type	Frequency Range [Max]	Frequency Range [Min]	Antenna Type	VSWR	Gain	Number of Bands	Applications	Frequency (Center/Band)	Termination	RF Family/Standard	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Features	Features	Height (Max)	Height (Max)	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Return Loss
Abracon LLC PRO-EX-332	3.268 "in"	83 mm	Connector Mount	2.48 GHz	2.4 GHz	Tilt, Whip	2	3 dBi	1
Abracon LLC PRO-EX-286	4.213 in, 107 mm		Connector Mount	2.485 GHz, 5.85 GHz	2.4 GHz, 5.15 GHz	Tilt, Whip	2	3 dBi	2	WLAN	2.4 GHz, 5.5 GHz	RP-SMA Male	WiFi	4 GHz	2 GHz	3 GHz
Abracon LLC PRO-EX-327				2.485 GHz	2.4 GHz	Whip, Straight	2	3 dBi	1	ISM		IPEX MHF1, U.FL (UMCC)	General ISM				Cable	100 mm	70 mm	2.756 in
Abracon LLC PRO-EX-388			Connector Mount	1.99 GHz, 2.17 GHz, 960 MHz	1.71 GHz, 2.11 GHz, 824 MHz				6	GSM, UMTS	1.85 GHz, 2.1 GHz, 892 MHz		Cellular								57.3 mm	2.256 "	-3 dB
Abracon LLC PRO-EX-347	1.102 in	28 mm	Connector Mount	2.48 GHz	2.4 GHz	Whip, Straight	3	3 dBi	1
Abracon LLC PRO-EX-333	3.268 "in"	83 mm	Connector Mount	2.48 GHz	2.4 GHz	Tilt, Whip	2	3 dBi	1			RP-SMA Male
Abracon LLC PRO-EX-285	4.213 in, 107 mm		Connector Mount	2.48 GHz, 5.85 GHz	2.4 GHz, 5.15 GHz	Tilt, Whip	2	3 dBi	2	ISM, WLAN	2.4 GHz, 5.5 GHz			4 GHz	2 GHz	3 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA Whip, Tilt RP-SMA Male Connector Mount
