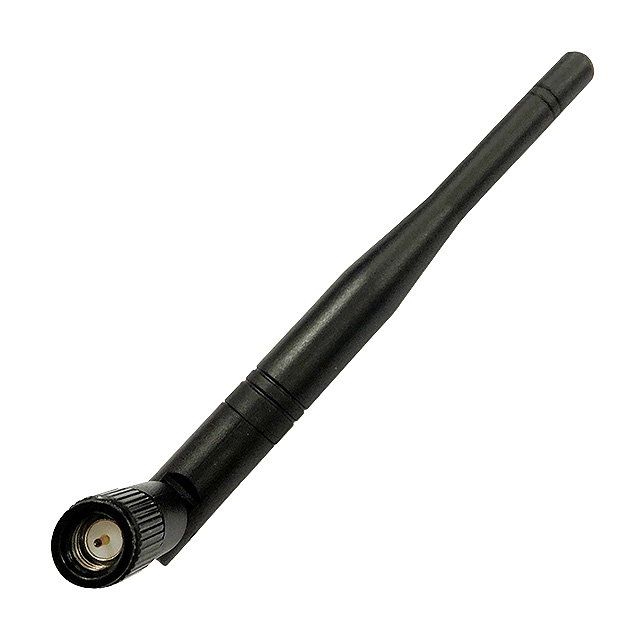

PRO-EX-285

Active

Abracon LLC

RF ANT 2.4GHZ/5.5GHZ WHIP TILT

Search across all available documentation for this part.

Active

Abracon LLC

RF ANT 2.4GHZ/5.5GHZ WHIP TILT

Technical Specifications

Parameters and characteristics commom to parts in this series

RF ANT 2.4GHZ WHIP TILT SMA MALE

Part	Height (Max) [Max]	Height (Max) [Max]	Mounting Type	Frequency Range [Max]	Frequency Range [Min]	Antenna Type	VSWR	Gain	Number of Bands	Applications	Frequency (Center/Band)	Termination	RF Family/Standard	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Features	Features	Height (Max)	Height (Max)	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Return Loss
Abracon LLC PRO-EX-332	3.268 "in"	83 mm	Connector Mount	2.48 GHz	2.4 GHz	Tilt, Whip	2	3 dBi	1
Abracon LLC PRO-EX-286	4.213 in, 107 mm		Connector Mount	2.485 GHz, 5.85 GHz	2.4 GHz, 5.15 GHz	Tilt, Whip	2	3 dBi	2	WLAN	2.4 GHz, 5.5 GHz	RP-SMA Male	WiFi	4 GHz	2 GHz	3 GHz
Abracon LLC PRO-EX-327				2.485 GHz	2.4 GHz	Whip, Straight	2	3 dBi	1	ISM		IPEX MHF1, U.FL (UMCC)	General ISM				Cable	100 mm	70 mm	2.756 in
Abracon LLC PRO-EX-388			Connector Mount	1.99 GHz, 2.17 GHz, 960 MHz	1.71 GHz, 2.11 GHz, 824 MHz				6	GSM, UMTS	1.85 GHz, 2.1 GHz, 892 MHz		Cellular								57.3 mm	2.256 "	-3 dB
Abracon LLC PRO-EX-347	1.102 in	28 mm	Connector Mount	2.48 GHz	2.4 GHz	Whip, Straight	3	3 dBi	1
Abracon LLC PRO-EX-333	3.268 "in"	83 mm	Connector Mount	2.48 GHz	2.4 GHz	Tilt, Whip	2	3 dBi	1			RP-SMA Male
Abracon LLC PRO-EX-285	4.213 in, 107 mm		Connector Mount	2.48 GHz, 5.85 GHz	2.4 GHz, 5.15 GHz	Tilt, Whip	2	3 dBi	2	ISM, WLAN	2.4 GHz, 5.5 GHz			4 GHz	2 GHz	3 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA ISM, WLAN Whip, Tilt SMA Male Connector Mount

Technical documentation and resources

No documents available
