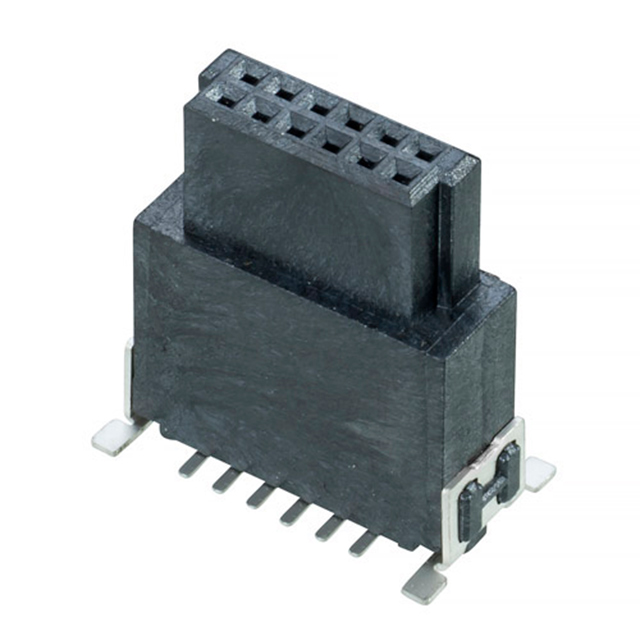

M55-6021242R
ActiveHarwin Inc.
CONN, RCPT, 12POS, 2ROW, 1.27MM ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M55-6021242R
ActiveHarwin Inc.
CONN, RCPT, 12POS, 2ROW, 1.27MM ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M55-6021242R |
|---|---|
| Applications | Industrial, General Purpose, Automotive |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 1 µin |
| Contact Finish Thickness - Mating | 0.025 µm |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Material | Phosphor Bronze |
| Contact Shape | Rectangular |
| Contact Type | Female Socket |
| Current Rating (Amps) | 1.2 A |
| Fastening Type | Latch Holder |
| Features | Pick and Place, Board Guide, Solder Retention |
| Insulation Color | Black |
| Insulation Height | 0.537 in |
| Insulation Height | 13.64 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mated Stacking Heights | 15.4 mm, 16.9 mm, 18.5 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Termination | Solder |
| Voltage Rating | 100 VAC |
M55-602 Series
| Part | Contact Finish - Mating | Applications | Current Rating (Amps) | Connector Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Contact Finish - Post | Mated Stacking Heights | Number of Positions | Contact Type | Insulation Material | Material Flammability Rating | Features | Insulation Height | Insulation Height | Contact Shape | Mounting Type | Number of Rows | Insulation Color | Number of Positions Loaded | Fastening Type | Termination | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Row Spacing - Mating | Row Spacing - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Gold | Automotive General Purpose Industrial | 1.2 A | Receptacle | 2.54 µm | 100 µin | Phosphor Bronze | Tin | 15.4 mm 16.9 mm 18.5 mm | 26 | Female Socket | Liquid Crystal Polymer (LCP) | UL94 V-0 | Board Guide Pick and Place Solder Retention | 0.537 in | 13.64 mm | Rectangular | Surface Mount | 2 | Black | All | Latch Holder | Solder | 0.05 in | 1.27 mm | -55 °C | 125 °C | 100 VAC | 1 µin | 0.025 µm | 0.05 in | 1.27 mm |
Harwin Inc. | Gold | Automotive General Purpose Industrial | 1.2 A | Receptacle | 2.54 µm | 100 µin | Phosphor Bronze | Tin | 15.4 mm 16.9 mm 18.5 mm | 20 | Female Socket | Liquid Crystal Polymer (LCP) | UL94 V-0 | Board Guide Pick and Place Solder Retention | 0.537 in | 13.64 mm | Rectangular | Surface Mount | 2 | Black | All | Latch Holder | Solder | 0.05 in | 1.27 mm | -55 °C | 125 °C | 100 VAC | 1 µin | 0.025 µm | 0.05 in | 1.27 mm |
Harwin Inc. | Gold | Automotive General Purpose Industrial | 1.2 A | Receptacle | 2.54 µm | 100 µin | Phosphor Bronze | Tin | 15.4 mm 16.9 mm 18.5 mm | 12 | Female Socket | Liquid Crystal Polymer (LCP) | UL94 V-0 | Board Guide Pick and Place Solder Retention | 0.537 in | 13.64 mm | Rectangular | Surface Mount | 2 | Black | All | Latch Holder | Solder | 0.05 in | 1.27 mm | -55 °C | 125 °C | 100 VAC | 1 µin | 0.025 µm | 0.05 in | 1.27 mm |
Harwin Inc. | Gold | Automotive General Purpose Industrial | 1.2 A | Receptacle | 2.54 µm | 100 µin | Phosphor Bronze | Tin | 15.4 mm 16.9 mm 18.5 mm | 80 | Female Socket | Liquid Crystal Polymer (LCP) | UL94 V-0 | Board Guide Pick and Place Solder Retention | 0.537 in | 13.64 mm | Rectangular | Surface Mount | 2 | Black | All | Latch Holder | Solder | 0.05 in | 1.27 mm | -55 °C | 125 °C | 100 VAC | 1 µin | 0.025 µm | 0.05 in | 1.27 mm |
