M55-6028042R

Active

Harwin Inc.

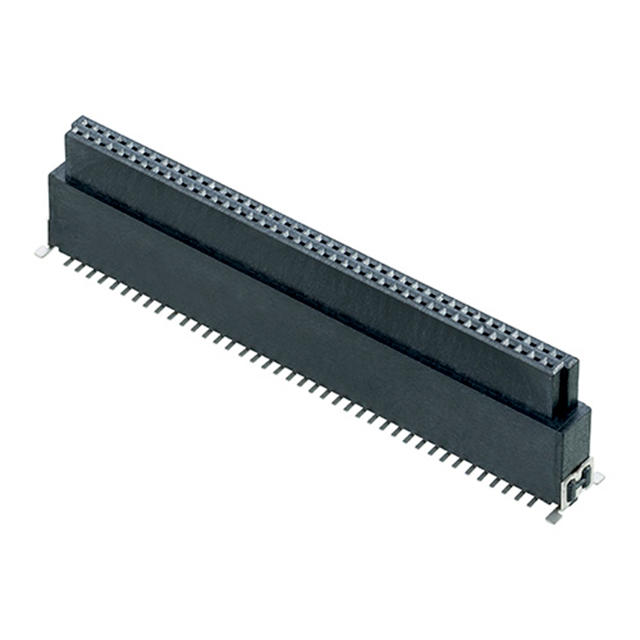

PCB RECEPTACLE, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 80 CONTACTS, SURFACE MOUNT, KONTROL M55 SERIES

M55-6028042R

Active

Harwin Inc.

PCB RECEPTACLE, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 80 CONTACTS, SURFACE MOUNT, KONTROL M55 SERIES

Description Specifications Series Pricing CAD Documents

Description

General part information

M55-602 Series

80 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold

Technical Specifications

Parameters and characteristics for this part

Specification	M55-6028042R

Applications	Industrial, General Purpose, Automotive
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µin
Contact Finish Thickness - Post	100 Ąin
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Female Socket
Current Rating	1.2 A
Fastening Type	Latch Holder
Features	Solder Retention, Pick and Place, Board Guide
Insulation Color	Black
Insulation Height	0.537 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Height Options	18.5mm, 15.4mm, 16.9mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.05 in
Row Spacing - Mating	0.05 in
Style	Board
Termination	Solder
Voltage Rating	100 VAC

M55-602 Series

Part	Mated Stacking Height Options	Contact Finish - Mating	Row Spacing - Mating	Contact Finish - Post	Pitch - Mating	Current Rating	Voltage Rating	Insulation Color	Insulation Height	Mounting Type	Fastening Type	Connector Type	Termination	Contact Type	Number of Positions Loaded	Material Flammability Rating	Style	Number of Positions	Number of Rows	Features	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish Thickness - Mating	Contact Shape	Insulation Material	Contact Material	Contact Finish Thickness - Post	Applications
Harwin Inc. M55-6022642R	15.4mm 16.9mm 18.5mm	Gold	0.05 in	Tin	0.05 in	1.2 A	100 VAC	Black	0.537 in	Surface Mount	Latch Holder	Receptacle	Solder	Female Socket	All	UL94 V-0	Board	26	2	Board Guide Pick and Place Solder Retention	125 °C	-55 °C	1 µin	Rectangular	Liquid Crystal Polymer (LCP)	Phosphor Bronze	100 Ąin	Automotive General Purpose Industrial
Harwin Inc. M55-6022042R	15.4mm 16.9mm 18.5mm	Gold	0.05 in	Tin	0.05 in	1.2 A	100 VAC	Black	0.537 in	Surface Mount	Latch Holder	Receptacle	Solder	Female Socket	All	UL94 V-0	Board	20	2	Board Guide Pick and Place Solder Retention	125 °C	-55 °C	1 µin	Rectangular	Liquid Crystal Polymer (LCP)	Phosphor Bronze	100 Ąin	Automotive General Purpose Industrial
Harwin Inc. M55-6021242R	15.4mm 16.9mm 18.5mm	Gold	0.05 in	Tin	0.05 in	1.2 A	100 VAC	Black	0.537 in	Surface Mount	Latch Holder	Receptacle	Solder	Female Socket	All	UL94 V-0	Board	12	2	Board Guide Pick and Place Solder Retention	125 °C	-55 °C	1 µin	Rectangular	Liquid Crystal Polymer (LCP)	Phosphor Bronze	100 Ąin	Automotive General Purpose Industrial
Harwin Inc. M55-6028042R	15.4mm 16.9mm 18.5mm	Gold	0.05 in	Tin	0.05 in	1.2 A	100 VAC	Black	0.537 in	Surface Mount	Latch Holder	Receptacle	Solder	Female Socket	All	UL94 V-0	Board	80	2	Board Guide Pick and Place Solder Retention	125 °C	-55 °C	1 µin	Rectangular	Liquid Crystal Polymer (LCP)	Phosphor Bronze	100 Ąin	Automotive General Purpose Industrial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

M55-6028042R | Datasheet

Datasheet
