M50-3200345

Active

Harwin Inc.

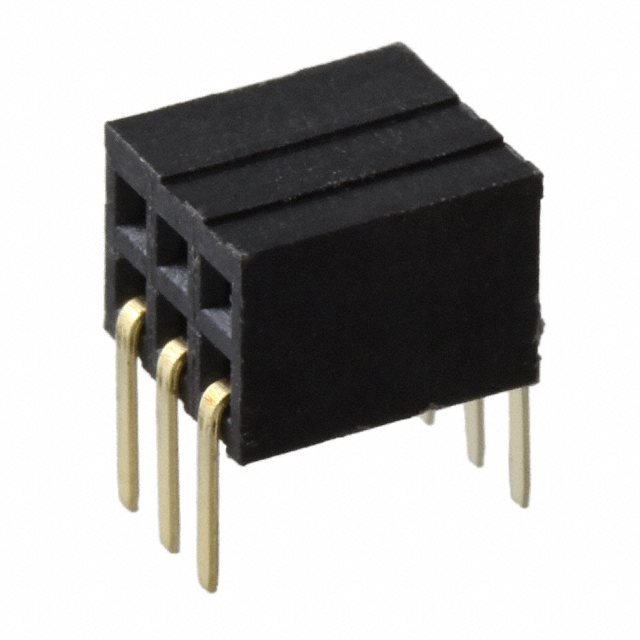

3+3 POS. FEMALE DIL HORIZONTAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M50-3000345 +2

M50-3200345

Active

Harwin Inc.

3+3 POS. FEMALE DIL HORIZONTAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet M50-3000345 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M50-3200345

Applications	General Purpose, Medical, Telecommunications
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Post	0.094 in
Contact Length - Post	2.4 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.46 mm
Insulation Height	0.136 in
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Style	Board to Board, Cable
Termination	Solder

M50-320 Series

Part	Insulation Color	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Contact Material	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Style	Insulation Height	Insulation Height	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Contact Type	Connector Type	Number of Positions	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Fastening Type	Insulation Material	Number of Positions
Harwin Inc. M50-3202045	Black	UL94 V-0	0.05 in	1.27 mm	0.094 in	2.4 mm	Phosphor Bronze	2	10 çin	0.25 çm	Solder	Through Hole Right Angle	10 çin	0.25 çm	All	Board to Board Cable	3.46 mm	0.136 in	Gold	0.05 in	1.27 mm	Square	Female Socket	Receptacle	40	Gold	-40 °C	105 ░C	General Purpose Medical Telecommunications	Push-Pull	Nylon 9T Polyamide (PA9T)
Harwin Inc. M50-3200845	Black	UL94 V-0	0.05 in	1.27 mm	0.094 in	2.4 mm	Phosphor Bronze	2	10 çin	0.25 çm	Solder	Through Hole Right Angle	10 çin	0.25 çm	All	Board to Board Cable	3.46 mm	0.136 in	Gold	0.05 in	1.27 mm	Square	Female Socket	Receptacle		Gold	-40 °C	105 ░C	General Purpose Medical Telecommunications	Push-Pull	Nylon 9T Polyamide (PA9T)	16
Harwin Inc. M50-3200445	Black	UL94 V-0	0.05 in	1.27 mm	0.094 in	2.4 mm	Phosphor Bronze	2	10 çin	0.25 çm	Solder	Through Hole Right Angle	10 çin	0.25 çm	All	Board to Board Cable	3.46 mm	0.136 in	Gold	0.05 in	1.27 mm	Square	Female Socket	Receptacle	8	Gold	-40 °C	105 ░C	General Purpose Medical Telecommunications	Push-Pull	Nylon 9T Polyamide (PA9T)
Harwin Inc. M50-3200345	Black	UL94 V-0	0.05 in	1.27 mm	0.094 in	2.4 mm	Phosphor Bronze	2	10 çin	0.25 çm	Solder	Through Hole Right Angle	10 çin	0.25 çm	All	Board to Board Cable	3.46 mm	0.136 in	Gold	0.05 in	1.27 mm	Square	Female Socket	Receptacle	6	Gold	-40 °C	105 ░C	General Purpose Medical Telecommunications	Push-Pull	Nylon 9T Polyamide (PA9T)
Harwin Inc. M50-3200645	Black	UL94 V-0	0.05 in	1.27 mm	0.094 in	2.4 mm	Phosphor Bronze	2	10 çin	0.25 çm	Solder	Through Hole Right Angle	10 çin	0.25 çm	All	Board to Board Cable	3.46 mm	0.136 in	Gold	0.05 in	1.27 mm	Square	Female Socket	Receptacle	12	Gold	-40 °C	105 ░C	General Purpose Medical Telecommunications	Push-Pull	Nylon 9T Polyamide (PA9T)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.32
		10	$ 1.15
		137	$ 1.03
		548	$ 0.86
Newark	Each	500	$ 1.27
		1000	$ 1.17
		2500	$ 1.06

Description

General part information

M50-320 Series

6 Position Receptacle Connector 0.050" (1.27mm) Through Hole, Right Angle Gold

Documents

Technical documentation and resources

Datasheet

M50-3000345

M50-3530842

M50,M52 Series Spec Sheet

Datasheet
