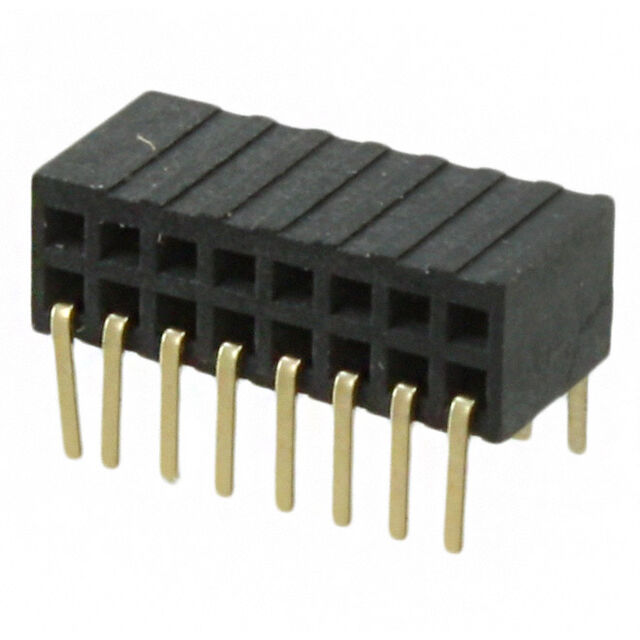

M50-3200845 - M50-3200845

M50-3200845

Active
Harwin Inc.

CONN, RCPT, 16POS, 2ROW, 1.27MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM50,M52 Series Spec SheetM50-3530842+2
M50-3200845 - M50-3200845

M50-3200845

Active
Harwin Inc.

CONN, RCPT, 16POS, 2ROW, 1.27MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM50,M52 Series Spec SheetM50-3530842+2

Technical Specifications

Parameters and characteristics for this part

SpecificationM50-3200845
ApplicationsGeneral Purpose, Medical, Telecommunications
Connector TypeReceptacle
Contact Finish - MatingGold
Contact Finish - PostGold
Contact Finish Thickness - Mating10 çin
Contact Finish Thickness - Mating0.25 çm
Contact Finish Thickness - Post10 çin
Contact Finish Thickness - Post0.25 çm
Contact Length - Post0.094 in
Contact Length - Post2.4 mm
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeFemale Socket
Fastening TypePush-Pull
Insulation ColorBlack
Insulation Height3.46 mm
Insulation Height0.136 in
Insulation MaterialPolyamide (PA9T), Nylon 9T
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions16
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Pitch - Mating0.05 in
Pitch - Mating1.27 mm
Row Spacing - Mating0.05 in
Row Spacing - Mating1.27 mm
StyleBoard to Board, Cable
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 4.02
10$ 3.07
100$ 2.38
500$ 2.00
1000$ 1.87
5000$ 1.61
NewarkEach 1$ 3.07
10$ 2.77
50$ 2.46
100$ 2.16
250$ 2.03
500$ 1.89
1000$ 1.76
2500$ 1.66

Description

General part information

M50-320 Series

16 Position Receptacle Connector 0.050" (1.27mm) Through Hole, Right Angle Gold
