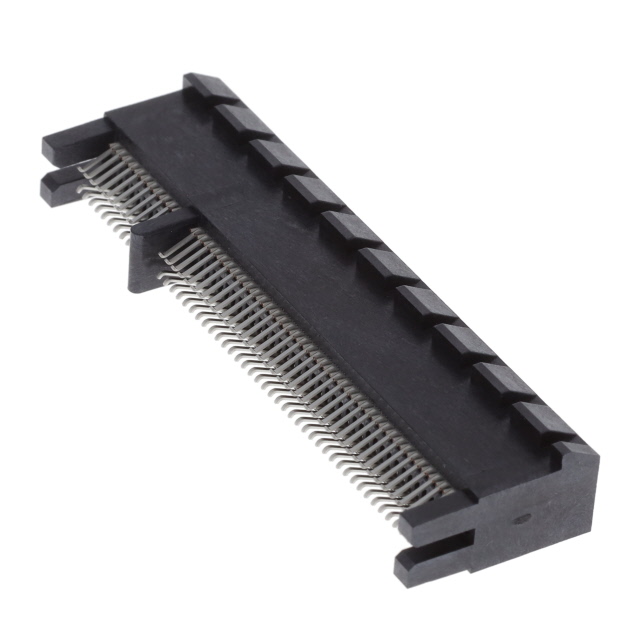

PCIE-098-02-F-D-EMS2-BG

Active

Samtec Inc.

CONN PCI EXP FMALE 98POS 0.039

Search across all available documentation for this part.

Active

Samtec Inc.

CONN PCI EXP FMALE 98POS 0.039

Technical Specifications

Parameters and characteristics for this part

Part	Gender	Read Out	Card Thickness	Card Thickness	Contact Finish	Features	Contact Material	Number of Rows	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Number of Positions	Card Type	Termination	Color	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness
Samtec Inc. PCIE-098-02-S-D-EMS2	Female	Dual	0.062 in	1.57 mm	Gold	Locking Ramp	Phosphor Bronze	2	Board Edge Straddle Mount	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	98	PCI Express™	Solder	Black	0.039 in	1 mm	0.76 Ám	30 Áin
Samtec Inc. PCIE-098-02-F-D-RA	Female	Dual	0.062 in	1.57 mm	Gold	Board Guide	Phosphor Bronze	2	Through Hole Right Angle	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	98	PCI Express™	Solder Staggered	Black	0.039 in	1 mm	0.076 Ám	3 Áin
Samtec Inc. PCIE-098-02-F-D-EMS3	Female	Dual	0.062 in	1.57 mm	Gold	Locking Ramp	Phosphor Bronze	2	Board Edge Straddle Mount	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	98	PCI Express™	Solder	Black	0.039 in	1 mm	0.076 Ám	3 Áin
Samtec Inc. PCIE-098-02-F-D-TH	Female	Dual	0.062 in	1.57 mm	Gold	Board Guide	Phosphor Bronze	2	Through Hole	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	98	PCI Express™	Solder Staggered	Black	0.039 in	1 mm	0.076 Ám	3 Áin
Samtec Inc. PCIE-098-02-F-D-EMS2-BG	Female	Dual	0.062 in	1.57 mm	Gold	Board Guide	Phosphor Bronze	2	Board Edge Straddle Mount	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	98	PCI Express™	Solder	Black	0.039 in	1 mm	0.076 Ám	3 Áin
