Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ESDA17P50-1U1M | ESDA17 Series |
|---|---|---|
| Applications | - | General Purpose |
| Capacitance @ Frequency | - | 190 pF |
| Current - Peak Pulse (10/1000µs) | - | 25 - 46 A |
| Mounting Type | - | Surface Mount |
| null | - | |
| Operating Temperature | - | -55 - -40 °C |
| Operating Temperature | - | 125 - 150 °C |
| Package / Case | - | SOT-23-6, 2-UDFN, SOD-882 |
| Power - Peak Pulse | - | 300 - 600 W |
| Power Line Protection | - | False |
| Supplier Device Package | - | SOT-23-6, SOD-882T |
| Supplier Device Package | - | 1610 |
| Type | - | Zener |
| Unidirectional Channels | - | 1 - 4 |
| Voltage - Breakdown (Min) | - | 15.6 - 17 V |
| Voltage - Clamping (Max) @ Ipp | - | 26.5 V |
| Voltage - Clamping (Max) @ Ipp | - | 23 V |
| Voltage - Reverse Standoff (Typ) | - | 14 - 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.36 | |
| 10 | $ 0.28 | |||
| 100 | $ 0.17 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.10 | |||
| 2000 | $ 0.10 | |||
| Digi-Reel® | 1 | $ 0.36 | ||
| 10 | $ 0.28 | |||
| 100 | $ 0.17 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.10 | |||
| 2000 | $ 0.10 | |||
| Tape & Reel (TR) | 8000 | $ 0.09 | ||
| 16000 | $ 0.08 | |||
| 24000 | $ 0.08 | |||
| 56000 | $ 0.08 | |||
ESDA17 Series
46 A - 8/20 us, 15 V TVS in QFN-2L
| Part | Package / Case | Type | Power Line Protection | Applications | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) [Min] | Power - Peak Pulse | Operating Temperature [Min] | Operating Temperature [Max] | Unidirectional Channels [custom] | Supplier Device Package | Mounting Type | Voltage - Clamping (Max) @ Ipp [Max] | Supplier Device Package | Current - Peak Pulse (10/1000µs) | Capacitance @ Frequency | Voltage - Clamping (Max) @ Ipp |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics ESDA17P50-1U1M | |||||||||||||||||
STMicroelectronics ESDA17SC6 | SOT-23-6 | Zener | General Purpose | 14 V | 17 V | 300 W | -40 °C | 125 °C | 4 | SOT-23-6 | Surface Mount | ||||||
STMicroelectronics ESDA17P20-1F2 | |||||||||||||||||
STMicroelectronics ESDA17P50-1U1M | |||||||||||||||||
STMicroelectronics ESDA17P20-1F2 | |||||||||||||||||
STMicroelectronics ESDA17P20-1F2 | |||||||||||||||||
STMicroelectronics ESDA17P50-1U1M | 2-UDFN | Zener | General Purpose | 15 V | 15.6 V | -55 °C | 150 °C | 1 | Surface Mount | 26.5 V | 1610 | 46 A | |||||
STMicroelectronics ESDA17P20-1F2 | SOD-882 | Zener | General Purpose | 15 V | 15.6 V | 600 W | -55 °C | 150 °C | 1 | SOD-882T | Surface Mount | 25 A | 190 pF | 23 V |
Description
General part information
ESDA17 Series
ESDAxxPxxx-1U1M transient voltage suppressor (TVS) series are designed for use in harsh environments to protect sensitive electronics from damage or latch-up due to electrical overstress (EOS), lightning surge and ESD without aging effect and performance drifts.

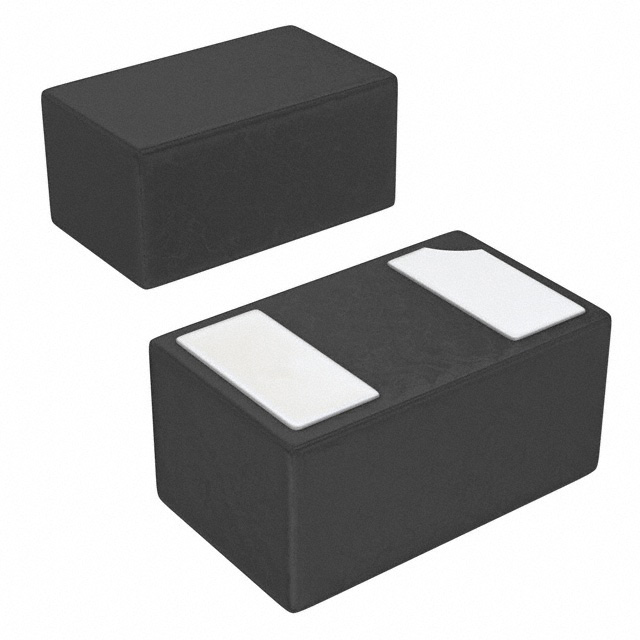

The series features desirable characteristics for board level protection including fast response time, excellent clamping voltage capability compared to standard TVS devices, and high surge current capability with low derating across the temperature range. In addition, this series is available in a small 1.6 mm × 1.0 mm footprint, ideal for space constrained applications.
The ESDAxxPxxx-1U1M series can be evaluated thanks to the STEVAL-OET005 evaluation board.
