Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ESDA17P20-1F2 | ESDA17 Series |
|---|---|---|
| Applications | - | General Purpose |
| Capacitance @ Frequency | - | 190 pF |
| Current - Peak Pulse (10/1000µs) | - | 25 - 46 A |
| Mounting Type | - | Surface Mount |
| null | - | |
| Operating Temperature | - | -55 - -40 °C |
| Operating Temperature | - | 125 - 150 °C |
| Package / Case | - | SOT-23-6, 2-UDFN, SOD-882 |
| Power - Peak Pulse | - | 300 - 600 W |
| Power Line Protection | - | False |
| Supplier Device Package | - | SOT-23-6, SOD-882T |
| Supplier Device Package | - | 1610 |
| Type | - | Zener |
| Unidirectional Channels | - | 1 - 4 |
| Voltage - Breakdown (Min) | - | 15.6 - 17 V |
| Voltage - Clamping (Max) @ Ipp | - | 26.5 V |
| Voltage - Clamping (Max) @ Ipp | - | 23 V |
| Voltage - Reverse Standoff (Typ) | - | 14 - 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.07 | |||
| 25 | $ 0.06 | |||
| 50 | $ 0.06 | |||
| 100 | $ 0.06 | |||
| 250 | $ 0.05 | |||
| 500 | $ 0.04 | |||
| 1000 | $ 0.04 | |||
| Digi-Reel® | 1 | $ 0.10 | ||
| 10 | $ 0.07 | |||
| 25 | $ 0.06 | |||
| 50 | $ 0.06 | |||
| 100 | $ 0.06 | |||
| 250 | $ 0.05 | |||
| 500 | $ 0.04 | |||
| 1000 | $ 0.04 | |||
| Tape & Reel (TR) | 10000 | $ 0.04 | ||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.12 | |
| 10 | $ 0.08 | |||
| 25 | $ 0.08 | |||
| 50 | $ 0.07 | |||
| 100 | $ 0.07 | |||
| 250 | $ 0.07 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.06 | |||
ESDA17 Series

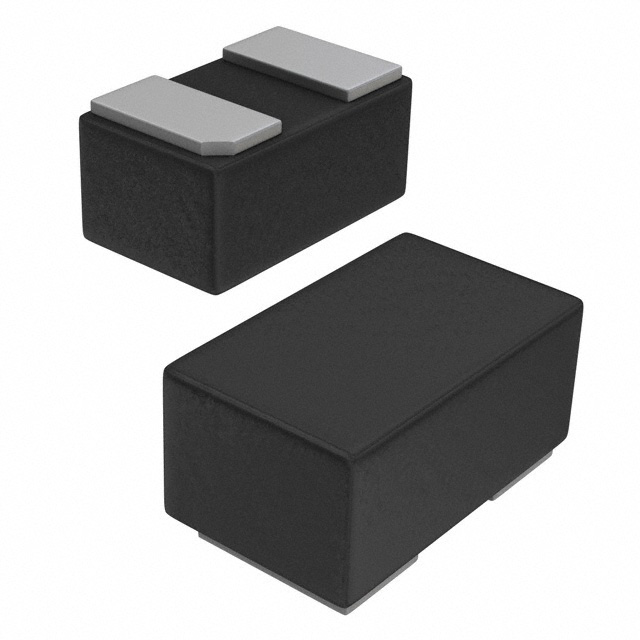

46 A - 8/20 us, 15 V TVS in QFN-2L
