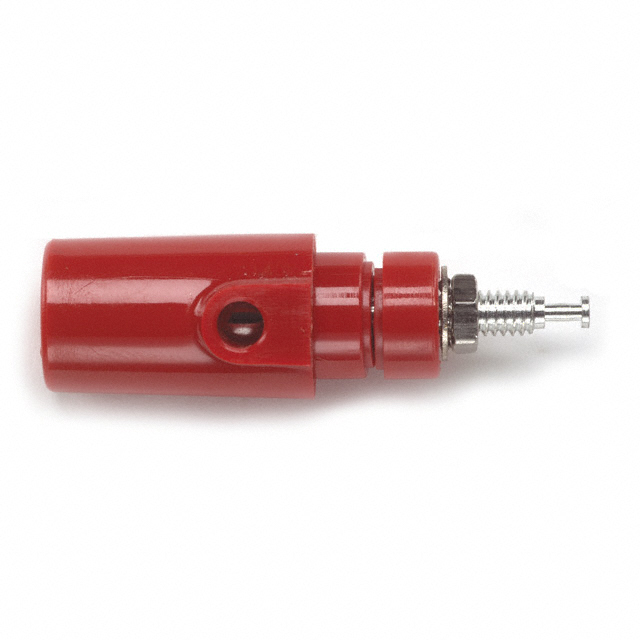

BINDING POST, 4770 SERIES, 15 A, 60 VDC, TIN PLATED CONTACTS, PANEL MOUNT, RED
4770-2
ObsoletePomona Electronics
BINDING POST, 4770 SERIES, 15 A, 60 VDC, TIN PLATED CONTACTS, PANEL MOUNT, RED
Description
General part information
4770 Series
4770-2 is a red color spring-loaded binding post accepts wires or plugs up to 2.16 (.085) dia with insulation up to 4.06 (.160) dia.
Technical Specifications
Parameters and characteristics for this part
| Specification | 4770-2 |
|---|---|
| Color | Red |
| Current Rating | 15 A |
| Head Size (OD) | 0.53 in |
| Head Style | Spring Loaded, Smooth |
| Material - Body | Brass |
| Material - Insulation | PC, Polycarbonate |
| Nut Material | Brass |
| Panel Thickness (Max) | 0.375 in |
| Panel Thickness (Min) | 0.063 in |
| Plating - Body | Tin |
| Termination | Threaded and Turret |
| Type | Standard |
| Voltage Rating | 30VAC, 60VDC |
| Voltage Rating (AC) | 30 VAC |
| Voltage Rating (DC) | 60 VDC |
