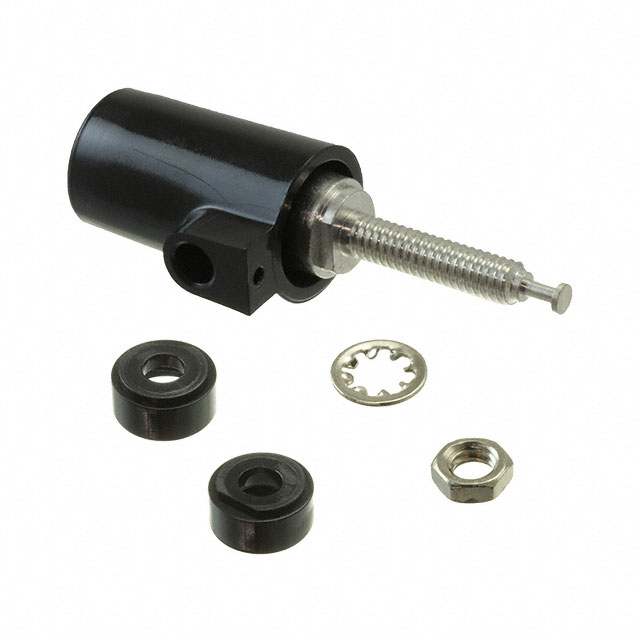

4770-0
ActivePomona Electronics
CONN BIND POST SPRING-LOAD BLACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4770-0
ActivePomona Electronics
CONN BIND POST SPRING-LOAD BLACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4770-0 |
|---|---|
| Color | Black |
| Current Rating (Amps) | 15 A |
| Head Size [diameter] | 0.53 in |
| Head Size [diameter] | 13.46 mm |
| Head Style | Smooth, Spring Loaded |
| Material - Body | Brass |
| Material - Insulation | Polycarbonate |
| Material - Insulation | PC |
| Nut Material | Brass |
| Panel Thickness [Max] | 0.375 " |
| Panel Thickness [Max] | 9.53 mm |
| Panel Thickness [Min] | 0.063 in |
| Panel Thickness [Min] | 1.6 mm |
| Plating - Body | Tin |
| Termination | Turret, Threaded |
| Type | Standard |
| Voltage Rating | 30 VAC, 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.79 | |
| 25 | $ 27.54 | |||
| 50 | $ 26.09 | |||
| 100 | $ 24.93 | |||
Description
General part information
4770 Series
Binding Post Connector Standard Smooth, Spring Loaded Black Tin
