4-1393561-2

Active

TE Connectivity AMP Connectors

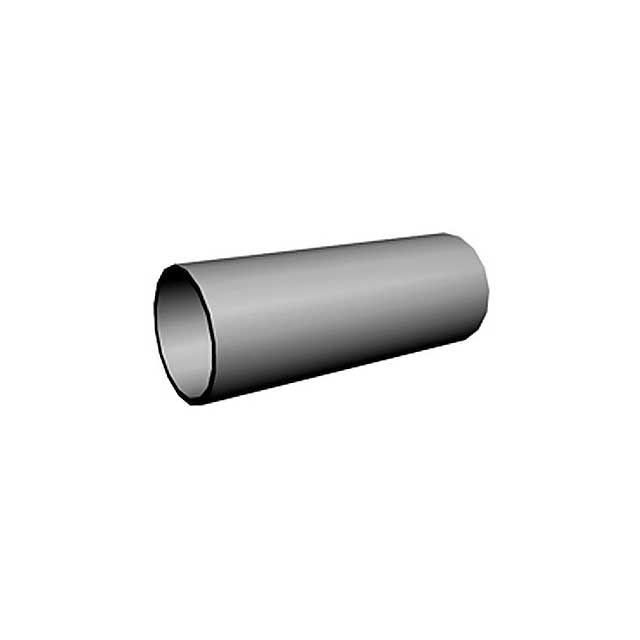

HARDWARE CONTACT TUBE 50 POS

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

HARDWARE CONTACT TUBE 50 POS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10000	$ 0.83

General part information

Connector Contact Tube For D-Sub Plastic Housing

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	4-1393561-2	1393561 Series

Accessory Type	Contact Tube	Contact Tube
For Use With/Related Products	D-Sub Plastic Housing	D-Sub Plastic Housing, AMPLIMITE Series
Length - Below Head	-	21.9 mm
Length - Below Head	-	0.862 "
Length - Threaded Portion Below Head	-	0.169 "
Length - Threaded Portion Below Head	-	4.3 mm
Number of Positions	50	25 - 50
Number of Positions	-	15 - 25
Number of Positions	-	37 - 50
Number of Positions	-	9
Number of Positions	-	37
Thread Size	-	4-40

HARDWARE CONTACT TUBE 50 POS

Part	For Use With/Related Products	Accessory Type	Number of Positions	Number of Positions [Min] [custom]	Number of Positions [Max] [custom]	Length - Below Head [x]	Length - Below Head [x]	Length - Threaded Portion Below Head [x]	Length - Threaded Portion Below Head [x]	Thread Size	Number of Positions [Min]	Number of Positions [Max]
TE Connectivity AMP Connectors 4-1393561-2	D-Sub Plastic Housing	Contact Tube	50
TE Connectivity AMP Connectors 4-1393561-0	D-Sub Plastic Housing	Contact Tube		25	50
TE Connectivity AMP Connectors 3-1393561-6	D-Sub Plastic Housing	Contact Tube		15	37
TE Connectivity AMP Connectors 1-1393561-9	AMPLIMITE Series					21.9 mm	0.862 "	0.169 "	4.3 mm	4-40
TE Connectivity AMP Connectors 3-1393561-5	D-Sub Plastic Housing	Contact Tube									9	37
TE Connectivity AMP Connectors 3-1393561-9	D-Sub Plastic Housing	Contact Tube	25, 37
TE Connectivity AMP Connectors 2-1393561-9	AMPLIMITE Series					21.9 mm	0.862 "	0.169 "	4.3 mm	4-40
TE Connectivity AMP Connectors 3-1393561-4	D-Sub Plastic Housing	Contact Tube									9	37
