2-1393561-9

Active

TE Connectivity AMP Connectors

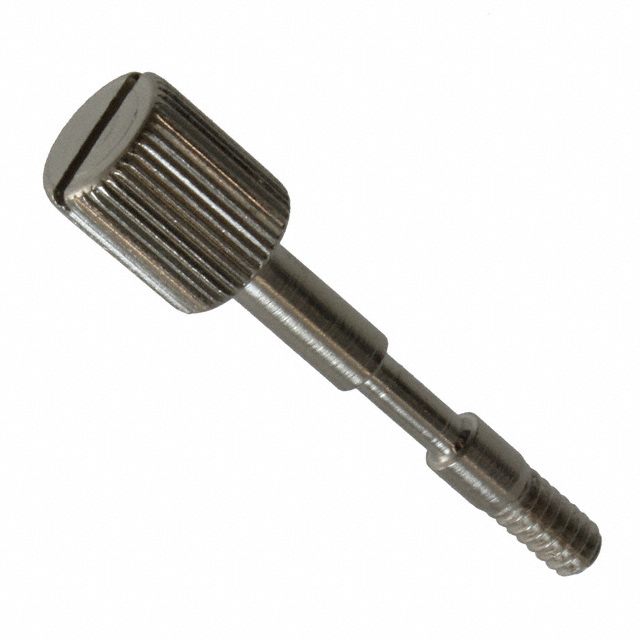

CONN D-SUB THUMB SCREW 4-40

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN D-SUB THUMB SCREW 4-40

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-1393561-9	1393561 Series

Accessory Type	-	Contact Tube
For Use With/Related Products	AMPLIMITE Series	D-Sub Plastic Housing, AMPLIMITE Series
Length - Below Head [x]	21.9 mm	21.9 mm
Length - Below Head [x]	0.862 "	0.862 "
Length - Threaded Portion Below Head [x]	0.169 "	0.169 "
Length - Threaded Portion Below Head [x]	4.3 mm	4.3 mm
Number of Positions	-	25 - 50
Number of Positions	-	15 - 25
Number of Positions	-	37 - 50
Number of Positions	-	9
Number of Positions	-	37
Thread Size	4-40	4-40

HARDWARE CONTACT TUBE 50 POS

Part	For Use With/Related Products	Accessory Type	Number of Positions	Number of Positions [Min] [custom]	Number of Positions [Max] [custom]	Length - Below Head [x]	Length - Below Head [x]	Length - Threaded Portion Below Head [x]	Length - Threaded Portion Below Head [x]	Thread Size	Number of Positions [Min]	Number of Positions [Max]
TE Connectivity AMP Connectors 4-1393561-2	D-Sub Plastic Housing	Contact Tube	50
TE Connectivity AMP Connectors 4-1393561-0	D-Sub Plastic Housing	Contact Tube		25	50
TE Connectivity AMP Connectors 3-1393561-6	D-Sub Plastic Housing	Contact Tube		15	37
TE Connectivity AMP Connectors 1-1393561-9	AMPLIMITE Series					21.9 mm	0.862 "	0.169 "	4.3 mm	4-40
TE Connectivity AMP Connectors 3-1393561-5	D-Sub Plastic Housing	Contact Tube									9	37
TE Connectivity AMP Connectors 3-1393561-9	D-Sub Plastic Housing	Contact Tube	25, 37
TE Connectivity AMP Connectors 2-1393561-9	AMPLIMITE Series					21.9 mm	0.862 "	0.169 "	4.3 mm	4-40
TE Connectivity AMP Connectors 3-1393561-4	D-Sub Plastic Housing	Contact Tube									9	37

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jackscrew, Thumb Screw For AMPLIMITE Series
