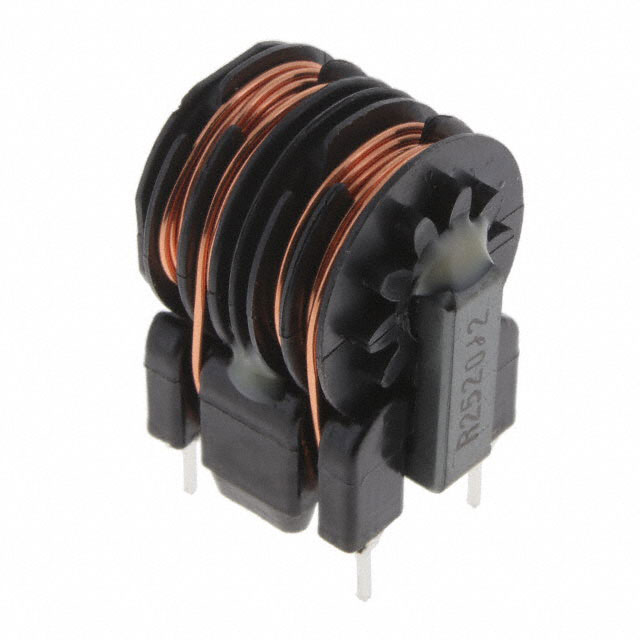

SS21V-R250023

Active

KEMET

COMMON MODE FILTER, 2.3MH, 2.5A ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSS21V-R250023 Spec Datasheet +3

SS21V-R250023

Active

KEMET

COMMON MODE FILTER, 2.3MH, 2.5A ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsSS21V-R250023 Spec Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS21V-R250023

Current Rating (Max) [Max]	2.5 A
DC Resistance (DCR) (Max) [Max]	100 mOhm
Filter Type	Power Line
Height (Max) [Max] [z]	24.5 mm
Height (Max) [Max] [z]	0.965 in
Inductance @ Frequency	2.3 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-25 °C
Package / Case	4 Lead
Package / Case	Vertical
Size / Dimension [x]	0.811 in
Size / Dimension [x]	20.6 mm
Size / Dimension [y]	16.8 mm
Size / Dimension [y]	0.661 in
Voltage Rating - AC	250 V

SS21V Series

Part	Current Rating (Max) [Max]	Inductance @ Frequency	Mounting Type	Filter Type	Voltage Rating - AC	Package / Case	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) (Max) [Max]	Number of Lines	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Size / Dimension	Height (Max) [Max]	Height (Max) [Max]
KEMET SS21V-R250023	2.5 A	2.3 mH	Through Hole	Power Line	250 V	4 Lead	Vertical	16.8 mm	0.811 in	20.6 mm	0.661 in	120 °C	-25 °C	100 mOhm	2	24.5 mm	0.965 in
KEMET SS21V-180029	1.8 A	2.9 mH	Through Hole	Power Line	250 V	4 Lead	Vertical	16.8 mm	0.811 in	20.6 mm	0.661 in	120 °C	-25 °C	200 mOhm	2	24.5 mm	0.965 in
KEMET SS21V-030930	300 mA	93 mH	Through Hole	Power Line	250 V	4 Lead	Vertical					120 °C	-25 °C	5.9 Ohm	2	24.5 mm	0.965 in	0.807 in 16.5 mm 16.51 mm 20.5 mm
KEMET SS21V-060220	600 mA	22 mH	Through Hole	Power Line	250 V	4 Lead	Vertical					120 °C	-25 °C	1.5 Ohm	2	24.5 mm	0.965 in	0.807 in 16.5 mm 16.51 mm 20.5 mm
KEMET SS21V-R100146	1 A	14.6 mH	Through Hole	Power Line	250 V	4 Lead	Vertical					120 °C	-25 °C	600 mOhm	2	24.5 mm	0.965 in	0.807 in 16.5 mm 16.51 mm 20.5 mm
KEMET SS21V-R150057	1.5 A	5.7 mH	Through Hole	Power Line	250 V	4 Lead	Vertical					120 °C	-25 °C	300 mOhm	2	24.5 mm	0.965 in	0.807 in 16.5 mm 16.51 mm 20.5 mm
KEMET SS21V-300008	3 A	800 µH	Through Hole	Power Line	250 V	4 Lead	Vertical	16.8 mm	0.811 in	20.6 mm	0.661 in	120 °C	-25 °C	70 mOhm	2	24.5 mm	0.965 in
KEMET SS21V-R110100	1.1 A	1 kHz 10 mH	Through Hole	Power Line	250 V	4 Lead	Vertical					120 °C	-25 °C	450 mOhm	2	24.5 mm	0.965 in	0.807 in 16.5 mm 16.51 mm 20.5 mm
KEMET SS21V-200024	2 A	1 kHz 2.4 mH	Through Hole	Power Line	250 V	4 Lead	Vertical					120 °C	-25 °C	150 mOhm	2	24.5 mm	0.965 in	0.807 in 16.5 mm 16.51 mm 20.5 mm
KEMET SS21V-R400005			Through Hole	Power Line	250 V	4 Lead	Vertical					120 °C	-25 °C		2			0.807 in 16.5 mm 16.51 mm 20.5 mm	1.004 in	25.5 mm
