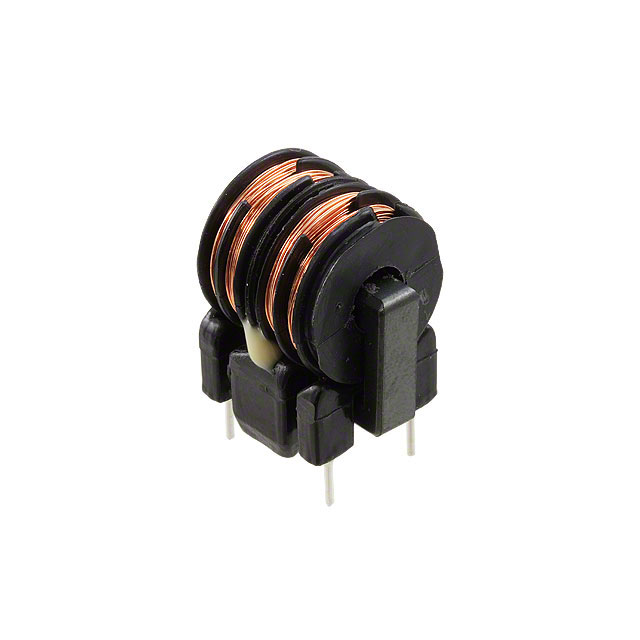

SS21V-R400005

KEMET

V ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS21V-R400005

Filter Type	Power Line
Height (Max) [Max]	1.004 in
Height (Max) [Max]	25.5 mm
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-25 °C
Package / Case	4 Lead
Package / Case	Vertical
Size / Dimension	16.5 mm, 0.807 in, 16.51 mm, 20.5 mm
Voltage Rating - AC	250 V

SS21V Series

Part	Current Rating (Max) [Max]	Inductance @ Frequency	Mounting Type	Filter Type	Voltage Rating - AC	Package / Case	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) (Max) [Max]	Number of Lines	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Size / Dimension	Height (Max) [Max]	Height (Max) [Max]
KEMET SS21V-R250023	2.5 A	2.3 mH	Through Hole	Power Line	250 V	4 Lead	Vertical	16.8 mm	0.811 in	20.6 mm	0.661 in	120 °C	-25 °C	100 mOhm	2	24.5 mm	0.965 in
KEMET SS21V-180029	1.8 A	2.9 mH	Through Hole	Power Line	250 V	4 Lead	Vertical	16.8 mm	0.811 in	20.6 mm	0.661 in	120 °C	-25 °C	200 mOhm	2	24.5 mm	0.965 in
KEMET SS21V-030930	300 mA	93 mH	Through Hole	Power Line	250 V	4 Lead	Vertical					120 °C	-25 °C	5.9 Ohm	2	24.5 mm	0.965 in	0.807 in 16.5 mm 16.51 mm 20.5 mm
KEMET SS21V-060220	600 mA	22 mH	Through Hole	Power Line	250 V	4 Lead	Vertical					120 °C	-25 °C	1.5 Ohm	2	24.5 mm	0.965 in	0.807 in 16.5 mm 16.51 mm 20.5 mm
KEMET SS21V-R100146	1 A	14.6 mH	Through Hole	Power Line	250 V	4 Lead	Vertical					120 °C	-25 °C	600 mOhm	2	24.5 mm	0.965 in	0.807 in 16.5 mm 16.51 mm 20.5 mm
KEMET SS21V-R150057	1.5 A	5.7 mH	Through Hole	Power Line	250 V	4 Lead	Vertical					120 °C	-25 °C	300 mOhm	2	24.5 mm	0.965 in	0.807 in 16.5 mm 16.51 mm 20.5 mm
KEMET SS21V-300008	3 A	800 µH	Through Hole	Power Line	250 V	4 Lead	Vertical	16.8 mm	0.811 in	20.6 mm	0.661 in	120 °C	-25 °C	70 mOhm	2	24.5 mm	0.965 in
KEMET SS21V-R110100	1.1 A	1 kHz 10 mH	Through Hole	Power Line	250 V	4 Lead	Vertical					120 °C	-25 °C	450 mOhm	2	24.5 mm	0.965 in	0.807 in 16.5 mm 16.51 mm 20.5 mm
KEMET SS21V-200024	2 A	1 kHz 2.4 mH	Through Hole	Power Line	250 V	4 Lead	Vertical					120 °C	-25 °C	150 mOhm	2	24.5 mm	0.965 in	0.807 in 16.5 mm 16.51 mm 20.5 mm
KEMET SS21V-R400005			Through Hole	Power Line	250 V	4 Lead	Vertical					120 °C	-25 °C		2			0.807 in 16.5 mm 16.51 mm 20.5 mm	1.004 in	25.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	600	$ 1.39
Newark	Each	500	$ 1.36
		1000	$ 1.19
		2500	$ 1.06

Description

General part information

SS21V Series

2 Line Common Mode Choke Through Hole DCR
