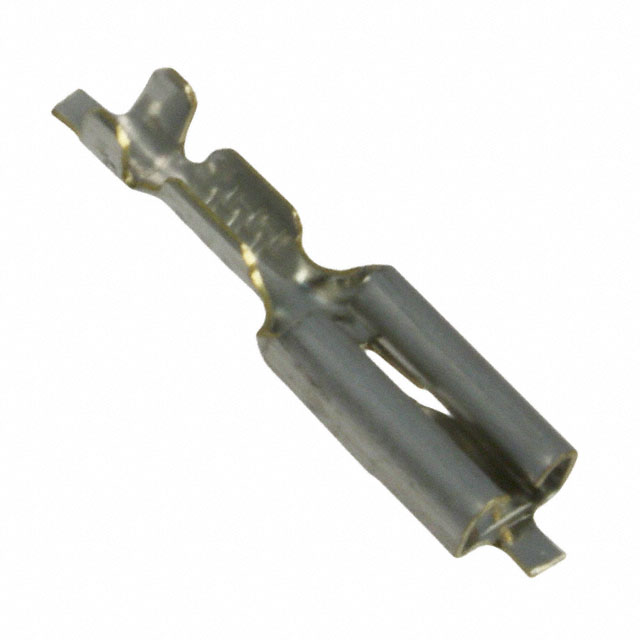

160922-2
ActiveTE Connectivity Raychem Cable Protection
FF 110 REC 0.2-0.5MM2 TPBR
Deep-Dive with AI
Search across all available documentation for this part.
160922-2
ActiveTE Connectivity Raychem Cable Protection
FF 110 REC 0.2-0.5MM2 TPBR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 160922-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter [Max] | 1.6 mm |
| Insulation Diameter [Max] | 0.063 in |
| Insulation Diameter [Min] | 1 mm |
| Insulation Diameter [Min] | 0.039 in |
| Length - Overall [x] | 0.551 " |
| Length - Overall [x] | 14 mm |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 0.248 in |
| Tab Length | 6.3 mm |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 2.79 mm |
| Tab Width | 0.11 " |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.14 | |
| 10 | $ 0.12 | |||
| 25 | $ 0.11 | |||
| 50 | $ 0.10 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.08 | |||
| 2500 | $ 0.08 | |||
| Tape & Reel (TR) | 10000 | $ 0.06 | ||
| 30000 | $ 0.05 | |||
| 50000 | $ 0.05 | |||
Description
General part information
FASTIN-FASTON 110 Series
Terminals 250 INTER LOCK 2P P
