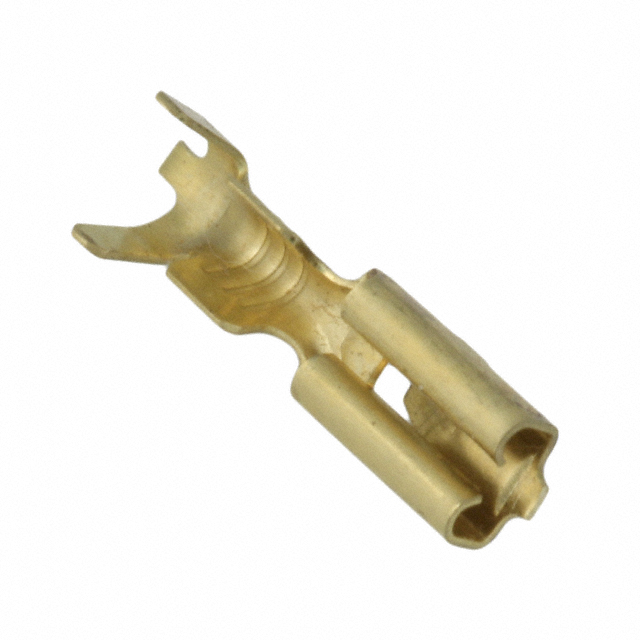

62572-1
ActiveTE Connectivity Raychem Cable Protection
FF 110 REC 20-16AWG BR
Deep-Dive with AI
Search across all available documentation for this part.
62572-1
ActiveTE Connectivity Raychem Cable Protection
FF 110 REC 20-16AWG BR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 62572-1 |
|---|---|
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter [Max] [diameter] | 3.05 mm |
| Insulation Diameter [Max] [diameter] | 0.12 in |
| Insulation Diameter [Min] [diameter] | 0.08 in |
| Insulation Diameter [Min] [diameter] | 2.03 mm |
| Length - Overall [x] | 13.97 mm |
| Length - Overall [x] | 0.55 " |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 6.35 mm |
| Tab Length | 0.25 in |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 2.79 mm |
| Tab Width | 0.11 " |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 16 AWG |
FASTIN-FASTON 110 Series
Terminals 250 INTER LOCK 2P P
| Part | Color | Stacking Direction | Number of Positions | Terminal Type | Mounting Type | Material | Gender | Style | Termination | Insulation Diameter [Max] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Min] | Contact Finish | Insulation | Tab Length | Tab Length | Tab Width | Tab Width | Length - Overall [x] | Length - Overall [x] | Contact Material | Tab Thickness | Tab Thickness | Wire Gauge [Min] | Wire Gauge [Max] | For Use With/Related Products | For Use With/Related Products | For Use With/Related Products | Terminal Size | Terminal Size | Note | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Type | Contact Termination | Pin or Socket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Black | Side to Side | 2 | Disconnect Quick Connect | Free Hanging (In-Line) | Polyester | Female Receptacle | Housing | |||||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Standard | Free Hanging (In-Line) | Female | Crimp | 0.08 " | 2.03 mm | 0.05 " | 1.27 mm | Tin | Non-Insulated | 6.35 mm | 0.25 in | 2.79 mm | 0.11 " | 15.88 mm | 0.625 in | Brass | 0.032 in | 0.81 mm | 20 AWG | 24 AWG | ||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Natural | 1 | Disconnect Quick Connect | Free Hanging (In-Line) | Polyamide (PA) Nylon | Male Tab | Housing | Quick Connects | 0.11 in | 2.79 mm | 0.11 in | 2.79 mm | Contacts Not Included | ||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Standard | Free Hanging (In-Line) | Female | Crimp | Tin | Non-Insulated | 6.3 mm | 0.248 in | 2.79 mm | 0.11 " | 14 mm | 0.551 " | Brass | 0.032 in | 0.81 mm | 17 AWG | 20 AWG | 3.3 mm | 0.13 in | ||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Black | Side to Side | 4 | Disconnect Quick Connect | Free Hanging (In-Line) | Polyamide (PA) Nylon | Female Receptacle | Housing | Quick Connects | 0.11 in | 2.79 mm | 0.11 in | 2.79 mm | Contacts Not Included | |||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Natural | Perpendicular | 2 | Disconnect Quick Connect | Free Hanging (In-Line) | Polyamide (PA66) Nylon 6/6 | Male Tab | Housing | Quick Connects | 0.11 in | 2.79 mm | 0.11 in | 2.79 mm | Contacts Not Included | |||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Black | Top to Bottom and Side to Side | 4 | Disconnect Quick Connect | Free Hanging (In-Line) | Polyamide (PA66) Nylon 6/6 | Male Tab | Housing | Quick Connects | 0.11 in | 2.79 mm | 0.11 in | 2.79 mm | Contacts Not Included | |||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Standard | Free Hanging (In-Line) | Female | Crimp | Non-Insulated | 6.35 mm | 0.25 in | 2.79 mm | 0.11 " | 13.97 mm | 0.55 " | Brass | 0.032 in | 0.81 mm | 16 AWG | 20 AWG | 0.08 in | 3.05 mm | 0.12 in | 2.03 mm | |||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Tin | Power | Crimp | Tab | |||||||||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Standard | Free Hanging (In-Line) | Female | Crimp | 0.063 in | 1.6 mm | 0.039 in | 1 mm | Tin | Non-Insulated | 6.3 mm | 0.248 in | 2.79 mm | 0.11 " | 14 mm | 0.551 " | Brass | 0.032 in | 0.81 mm | 20 AWG | 24 AWG |
