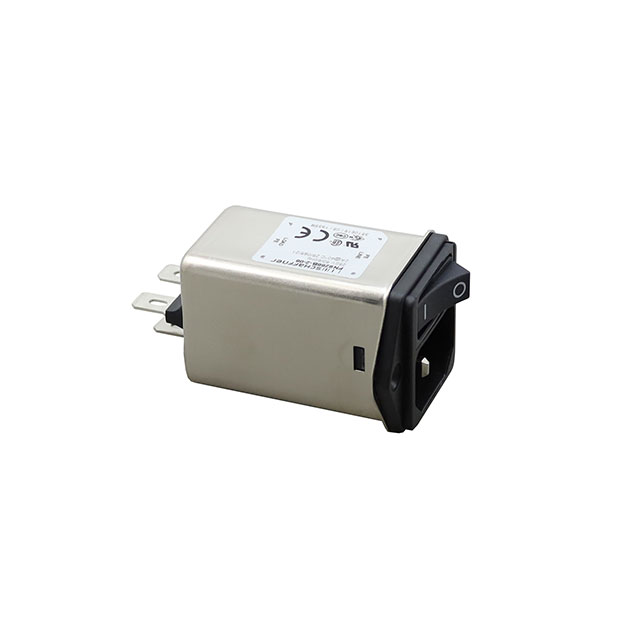

FN9266B-2-06

Active

TE Connectivity Raychem Cable Protection

AC POWER ENTRY MODULES 2A 20MH 250VAC MEDICAL

Deep-Dive with AI

DocumentsDatasheet Datasheet +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN9266B-2-06

Accomodates a Fuse	False
Approval Agency	UL, ENEC, CQC, CSA, CE
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Filter	2 A
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	29 mm
Panel Cutout Dimensions [y]	33 mm
Switch Features	Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect

FN9266 Series

AC Power Entry Modules 10A 1.15mH 250VAC Medical

Part	Termination	Termination	Termination	Current Rating - Filter	Mounting Type	Connector Type	Ingress Protection	Connector Style	Approval Agency	Switch Features	Material Flammability Rating	Filter Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Features	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]
TE Connectivity Raychem Cable Protection FN9266-1-06	0.25 in	6.3 mm	Quick Connect	1 A	Flange Panel Mount	Receptacle Male Blades - Module	IP40	IEC 320-C14	CE CQC CSA ENEC UL	Switch On-Off	UL94 V-0	Filtered (EMI RFI) - Commercial	33 mm	29 mm
TE Connectivity Raychem Cable Protection FN9266SA-10-06	0.25 in	6.3 mm	Quick Connect	10 A	Panel Mount Snap-In	Receptacle Male Blades - Module	IP40	IEC 320-C14	CE CQC CSA ENEC UL	Switch On-Off	UL94 V-0	Filtered (EMI RFI) - Commercial	33 mm	29.5 mm	Safety Version	1.5 mm	0.6 mm	0.024 in	0.059 in
TE Connectivity Raychem Cable Protection FN9266SA-6-06	0.25 in	6.3 mm	Quick Connect	6 A	Panel Mount Snap-In	Receptacle Male Blades - Module	IP40	IEC 320-C14	CE CQC CSA ENEC UL	Switch On-Off	UL94 V-0	Filtered (EMI RFI) - Commercial	33 mm	29.5 mm	Safety Version	1.5 mm	0.6 mm	0.024 in	0.059 in
TE Connectivity Raychem Cable Protection FN9266A-10-06	0.25 in	6.3 mm	Quick Connect	10 A	Flange Panel Mount	Receptacle Male Blades - Module	IP40	IEC 320-C14	CE CQC CSA ENEC UL	Switch On-Off	UL94 V-0	Filtered (EMI RFI) - Commercial	33 mm	29 mm	Safety Version
TE Connectivity Raychem Cable Protection FN9266S-2-06	0.25 in	6.3 mm	Quick Connect	2 A	Panel Mount Snap-In	Receptacle Male Blades - Module	IP40	IEC 320-C14	CE CQC CSA ENEC UL	Switch On-Off	UL94 V-0	Filtered (EMI RFI) - Commercial	33 mm	29.5 mm		1.5 mm	0.6 mm	0.024 in	0.059 in
TE Connectivity Raychem Cable Protection FN9266SA-2-06	0.25 in	6.3 mm	Quick Connect	2 A	Panel Mount Snap-In	Receptacle Male Blades - Module	IP40	IEC 320-C14	CE CQC CSA ENEC UL	Switch On-Off	UL94 V-0	Filtered (EMI RFI) - Commercial	33 mm	29.5 mm	Safety Version	1.5 mm	0.6 mm	0.024 in	0.059 in
TE Connectivity Raychem Cable Protection FN9266A-1-06	0.25 in	6.3 mm	Quick Connect	1 A	Flange Panel Mount	Receptacle Male Blades - Module	IP40	IEC 320-C14	CE CQC CSA ENEC UL	Switch On-Off	UL94 V-0	Filtered (EMI RFI) - Commercial	33 mm	29 mm	Safety Version
TE Connectivity Raychem Cable Protection FN9266S-10-06	0.25 in	6.3 mm	Quick Connect	10 A	Panel Mount Snap-In	Receptacle Male Blades - Module	IP40	IEC 320-C14	CE CQC CSA ENEC UL	Switch On-Off	UL94 V-0	Filtered (EMI RFI) - Commercial	33 mm	29.5 mm		1.5 mm	0.6 mm	0.024 in	0.059 in
TE Connectivity Raychem Cable Protection FN9266SB-2-06	0.25 in	6.3 mm	Quick Connect	2 A	Panel Mount Snap-In	Receptacle Male Blades - Module	IP40	IEC 320-C14	CE CQC CSA ENEC UL	Switch On-Off	UL94 V-0	Filtered (EMI RFI) - Commercial Medical	33 mm	29.5 mm		1.5 mm	0.6 mm	0.024 in	0.059 in
TE Connectivity Raychem Cable Protection FN9266SB-1-06	0.25 in	6.3 mm	Quick Connect	1 A	Panel Mount Snap-In	Receptacle Male Blades - Module	IP40	IEC 320-C14	CE CQC CSA ENEC UL	Switch On-Off	UL94 V-0	Filtered (EMI RFI) - Commercial Medical	33 mm	29.5 mm		1.5 mm	0.6 mm	0.024 in	0.059 in
