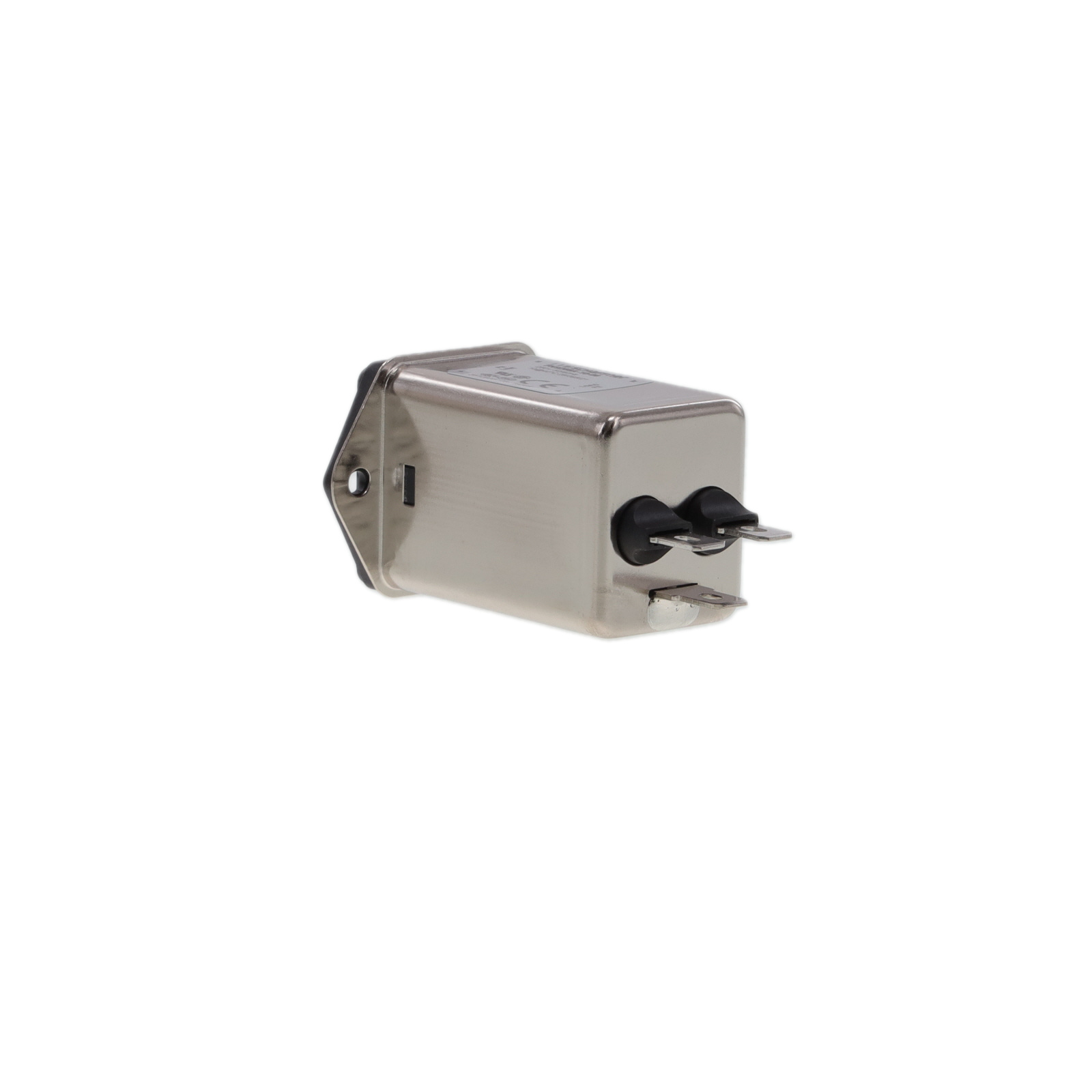

FN9266A-10-06

Active

TE Connectivity Raychem Cable Protection

AC POWER ENTRY MODULES 10A 1.15MH 250VAC SAFETY VERSION

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

FN9266A-10-06

Active

TE Connectivity Raychem Cable Protection

AC POWER ENTRY MODULES 10A 1.15MH 250VAC SAFETY VERSION

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN9266A-10-06

Accomodates a Fuse	False
Approval Agency	UL, ENEC, CQC, CSA, CE
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Filter	10 A
Features	Safety Version
Filter Type	Filtered (EMI, RFI) - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	29 mm
Panel Cutout Dimensions [y]	33 mm
Switch Features	Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect

FN9266 Series

AC Power Entry Modules 10A 1.15mH 250VAC Medical

Part	Termination	Termination	Termination	Current Rating - Filter	Mounting Type	Connector Type	Ingress Protection	Connector Style	Approval Agency	Switch Features	Material Flammability Rating	Filter Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Features	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]
TE Connectivity Raychem Cable Protection FN9266-1-06	0.25 in	6.3 mm	Quick Connect	1 A	Flange Panel Mount	Receptacle Male Blades - Module	IP40	IEC 320-C14	CE CQC CSA ENEC UL	Switch On-Off	UL94 V-0	Filtered (EMI RFI) - Commercial	33 mm	29 mm
TE Connectivity Raychem Cable Protection FN9266SA-10-06	0.25 in	6.3 mm	Quick Connect	10 A	Panel Mount Snap-In	Receptacle Male Blades - Module	IP40	IEC 320-C14	CE CQC CSA ENEC UL	Switch On-Off	UL94 V-0	Filtered (EMI RFI) - Commercial	33 mm	29.5 mm	Safety Version	1.5 mm	0.6 mm	0.024 in	0.059 in
TE Connectivity Raychem Cable Protection FN9266SA-6-06	0.25 in	6.3 mm	Quick Connect	6 A	Panel Mount Snap-In	Receptacle Male Blades - Module	IP40	IEC 320-C14	CE CQC CSA ENEC UL	Switch On-Off	UL94 V-0	Filtered (EMI RFI) - Commercial	33 mm	29.5 mm	Safety Version	1.5 mm	0.6 mm	0.024 in	0.059 in
TE Connectivity Raychem Cable Protection FN9266A-10-06	0.25 in	6.3 mm	Quick Connect	10 A	Flange Panel Mount	Receptacle Male Blades - Module	IP40	IEC 320-C14	CE CQC CSA ENEC UL	Switch On-Off	UL94 V-0	Filtered (EMI RFI) - Commercial	33 mm	29 mm	Safety Version
TE Connectivity Raychem Cable Protection FN9266S-2-06	0.25 in	6.3 mm	Quick Connect	2 A	Panel Mount Snap-In	Receptacle Male Blades - Module	IP40	IEC 320-C14	CE CQC CSA ENEC UL	Switch On-Off	UL94 V-0	Filtered (EMI RFI) - Commercial	33 mm	29.5 mm		1.5 mm	0.6 mm	0.024 in	0.059 in
TE Connectivity Raychem Cable Protection FN9266SA-2-06	0.25 in	6.3 mm	Quick Connect	2 A	Panel Mount Snap-In	Receptacle Male Blades - Module	IP40	IEC 320-C14	CE CQC CSA ENEC UL	Switch On-Off	UL94 V-0	Filtered (EMI RFI) - Commercial	33 mm	29.5 mm	Safety Version	1.5 mm	0.6 mm	0.024 in	0.059 in
TE Connectivity Raychem Cable Protection FN9266A-1-06	0.25 in	6.3 mm	Quick Connect	1 A	Flange Panel Mount	Receptacle Male Blades - Module	IP40	IEC 320-C14	CE CQC CSA ENEC UL	Switch On-Off	UL94 V-0	Filtered (EMI RFI) - Commercial	33 mm	29 mm	Safety Version
TE Connectivity Raychem Cable Protection FN9266S-10-06	0.25 in	6.3 mm	Quick Connect	10 A	Panel Mount Snap-In	Receptacle Male Blades - Module	IP40	IEC 320-C14	CE CQC CSA ENEC UL	Switch On-Off	UL94 V-0	Filtered (EMI RFI) - Commercial	33 mm	29.5 mm		1.5 mm	0.6 mm	0.024 in	0.059 in
TE Connectivity Raychem Cable Protection FN9266SB-2-06	0.25 in	6.3 mm	Quick Connect	2 A	Panel Mount Snap-In	Receptacle Male Blades - Module	IP40	IEC 320-C14	CE CQC CSA ENEC UL	Switch On-Off	UL94 V-0	Filtered (EMI RFI) - Commercial Medical	33 mm	29.5 mm		1.5 mm	0.6 mm	0.024 in	0.059 in
TE Connectivity Raychem Cable Protection FN9266SB-1-06	0.25 in	6.3 mm	Quick Connect	1 A	Panel Mount Snap-In	Receptacle Male Blades - Module	IP40	IEC 320-C14	CE CQC CSA ENEC UL	Switch On-Off	UL94 V-0	Filtered (EMI RFI) - Commercial Medical	33 mm	29.5 mm		1.5 mm	0.6 mm	0.024 in	0.059 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 21.92
		10	$ 19.19
		25	$ 18.36
		60	$ 17.77
		120	$ 17.18
		240	$ 16.23
		480	$ 15.76
Sager	N/A	1	$ 17.00
		21	$ 16.07
		43	$ 15.64
		85	$ 15.23
		439	$ 14.23

Description

General part information

FN9266 Series

AC Power Entry Modules 10A 1.15mH 250VAC Medical
