Technical Specifications
Parameters and characteristics for this part

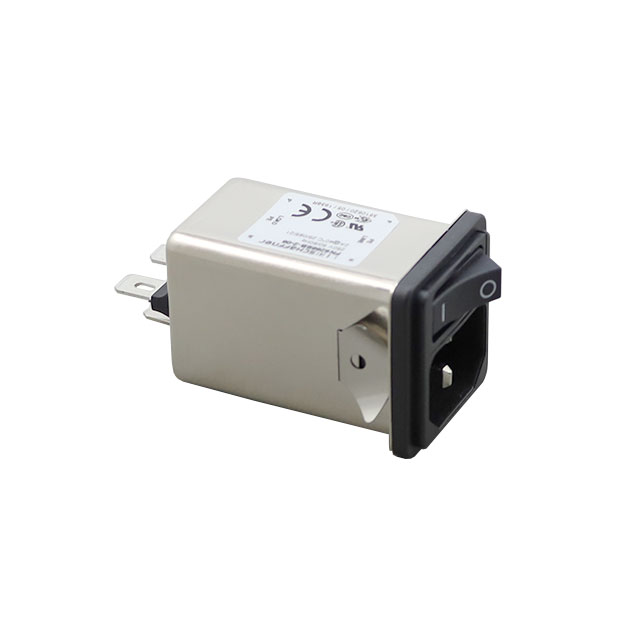

| Specification | FN9266SB-2-06 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | UL, ENEC, CQC, CSA, CE |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Filter | 2 A |
| Filter Type | Filtered (EMI, RFI) - Commercial, Medical |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 29.5 mm |
| Panel Cutout Dimensions [y] | 33 mm |
| Panel Thickness [Max] | 1.5 mm |
| Panel Thickness [Max] | 0.059 in |
| Panel Thickness [Min] | 0.6 mm |
| Panel Thickness [Min] | 0.024 in |
| Switch Features | Switch On-Off |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
FN9266 Series
AC Power Entry Modules 10A 1.15mH 250VAC Medical
| Part | Termination | Termination | Termination | Current Rating - Filter | Mounting Type | Connector Type | Ingress Protection | Connector Style | Approval Agency | Switch Features | Material Flammability Rating | Filter Type | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Accomodates a Fuse | Features | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Min] | Panel Thickness [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 0.25 in | 6.3 mm | Quick Connect | 1 A | Flange Panel Mount | Receptacle Male Blades - Module | IP40 | IEC 320-C14 | CE CQC CSA ENEC UL | Switch On-Off | UL94 V-0 | Filtered (EMI RFI) - Commercial | 33 mm | 29 mm | ||||||
TE Connectivity Raychem Cable Protection | 0.25 in | 6.3 mm | Quick Connect | 10 A | Panel Mount Snap-In | Receptacle Male Blades - Module | IP40 | IEC 320-C14 | CE CQC CSA ENEC UL | Switch On-Off | UL94 V-0 | Filtered (EMI RFI) - Commercial | 33 mm | 29.5 mm | Safety Version | 1.5 mm | 0.6 mm | 0.024 in | 0.059 in | |
TE Connectivity Raychem Cable Protection | 0.25 in | 6.3 mm | Quick Connect | 6 A | Panel Mount Snap-In | Receptacle Male Blades - Module | IP40 | IEC 320-C14 | CE CQC CSA ENEC UL | Switch On-Off | UL94 V-0 | Filtered (EMI RFI) - Commercial | 33 mm | 29.5 mm | Safety Version | 1.5 mm | 0.6 mm | 0.024 in | 0.059 in | |
TE Connectivity Raychem Cable Protection | 0.25 in | 6.3 mm | Quick Connect | 10 A | Flange Panel Mount | Receptacle Male Blades - Module | IP40 | IEC 320-C14 | CE CQC CSA ENEC UL | Switch On-Off | UL94 V-0 | Filtered (EMI RFI) - Commercial | 33 mm | 29 mm | Safety Version | |||||
TE Connectivity Raychem Cable Protection | 0.25 in | 6.3 mm | Quick Connect | 2 A | Panel Mount Snap-In | Receptacle Male Blades - Module | IP40 | IEC 320-C14 | CE CQC CSA ENEC UL | Switch On-Off | UL94 V-0 | Filtered (EMI RFI) - Commercial | 33 mm | 29.5 mm | 1.5 mm | 0.6 mm | 0.024 in | 0.059 in | ||
TE Connectivity Raychem Cable Protection | 0.25 in | 6.3 mm | Quick Connect | 2 A | Panel Mount Snap-In | Receptacle Male Blades - Module | IP40 | IEC 320-C14 | CE CQC CSA ENEC UL | Switch On-Off | UL94 V-0 | Filtered (EMI RFI) - Commercial | 33 mm | 29.5 mm | Safety Version | 1.5 mm | 0.6 mm | 0.024 in | 0.059 in | |
TE Connectivity Raychem Cable Protection | 0.25 in | 6.3 mm | Quick Connect | 1 A | Flange Panel Mount | Receptacle Male Blades - Module | IP40 | IEC 320-C14 | CE CQC CSA ENEC UL | Switch On-Off | UL94 V-0 | Filtered (EMI RFI) - Commercial | 33 mm | 29 mm | Safety Version | |||||
TE Connectivity Raychem Cable Protection | 0.25 in | 6.3 mm | Quick Connect | 10 A | Panel Mount Snap-In | Receptacle Male Blades - Module | IP40 | IEC 320-C14 | CE CQC CSA ENEC UL | Switch On-Off | UL94 V-0 | Filtered (EMI RFI) - Commercial | 33 mm | 29.5 mm | 1.5 mm | 0.6 mm | 0.024 in | 0.059 in | ||
TE Connectivity Raychem Cable Protection | 0.25 in | 6.3 mm | Quick Connect | 2 A | Panel Mount Snap-In | Receptacle Male Blades - Module | IP40 | IEC 320-C14 | CE CQC CSA ENEC UL | Switch On-Off | UL94 V-0 | Filtered (EMI RFI) - Commercial Medical | 33 mm | 29.5 mm | 1.5 mm | 0.6 mm | 0.024 in | 0.059 in | ||
TE Connectivity Raychem Cable Protection | 0.25 in | 6.3 mm | Quick Connect | 1 A | Panel Mount Snap-In | Receptacle Male Blades - Module | IP40 | IEC 320-C14 | CE CQC CSA ENEC UL | Switch On-Off | UL94 V-0 | Filtered (EMI RFI) - Commercial Medical | 33 mm | 29.5 mm | 1.5 mm | 0.6 mm | 0.024 in | 0.059 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
FN9266 Series
AC Power Entry Modules 10A 1.15mH 250VAC Medical
