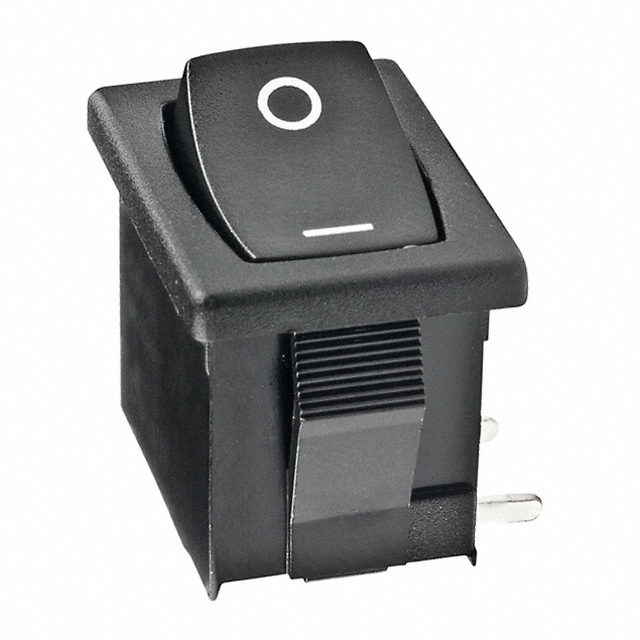

CWSA11AAN1H - CWSA11AAN1H

CWSA11AAN1H

Active
NKK Switches

ROCKER SWITCH, ON-NONE-OFF, SPST, NON ILLUMINATED, THROUGH HOLE, BLACK, CW SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN
CWSA11AAN1H - CWSA11AAN1H

CWSA11AAN1H

Active
NKK Switches

ROCKER SWITCH, ON-NONE-OFF, SPST, NON ILLUMINATED, THROUGH HOLE, BLACK, CW SERIES

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN

Technical Specifications

Parameters and characteristics for this part

SpecificationCWSA11AAN1H
Actuator MarkingO I
Actuator TypeConcave (Curved)
Approval AgencycULus
CircuitSPST
Color - Actuator/CapBlack
Current Rating (Amps)6 A
Electrical Life10000 Cycles
Mechanical Life30000 Steps
Mounting TypeSnap-In, Right Angle, Panel Mount
Operating Temperature [Max] [custom]158 °F
Operating Temperature [Min] [custom]-10 °C
Panel Cutout DimensionsRectangular
Panel Cutout Dimensions [x]19.2 mm
Panel Cutout Dimensions [y]12.9 mm
Switch FunctionOn-Off
Termination StylePC Pin
Voltage Rating - AC250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 3.22
10$ 2.89
25$ 2.74
40$ 2.61
80$ 2.49
230$ 2.38
440$ 2.18
945$ 2.07
NewarkEach 1$ 3.63
10$ 3.19
25$ 3.10
50$ 3.01
100$ 2.91

Description

General part information

CWSA11AA Series

Rocker Switch SPST 6A (AC) 250 V Panel Mount, Snap-In, Right Angle
