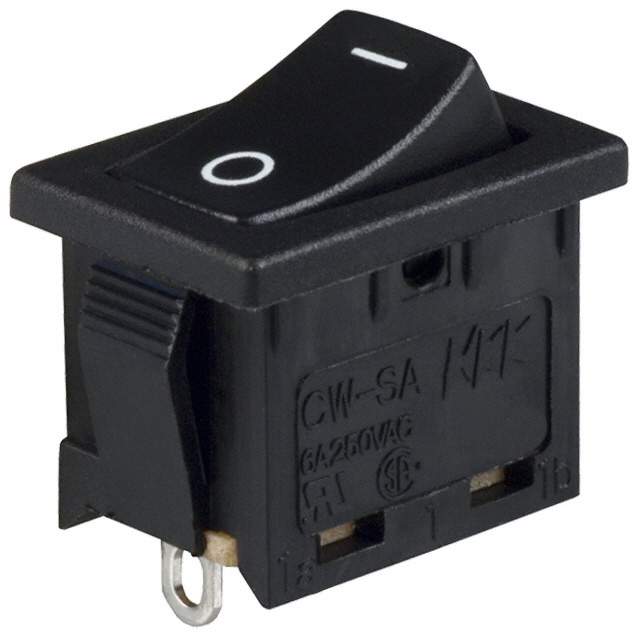

CWSA11AAN1S
ActiveNKK Switches
ROCKER SWITCH, ON-NONE-OFF, SPST, NON ILLUMINATED, PANEL MOUNT, BLACK, CW SERIES
Deep-Dive with AI
Search across all available documentation for this part.
CWSA11AAN1S
ActiveNKK Switches
ROCKER SWITCH, ON-NONE-OFF, SPST, NON ILLUMINATED, PANEL MOUNT, BLACK, CW SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CWSA11AAN1S |
|---|---|
| Actuator Marking | O I |
| Actuator Type | Concave (Curved) |
| Approval Agency | cULus |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 6 A |
| Electrical Life | 10000 Cycles |
| Mechanical Life | 30000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] [custom] | 158 °F |
| Operating Temperature [Min] [custom] | -10 °C |
| Panel Cutout Dimensions | Rectangular |
| Panel Cutout Dimensions [x] | 19.2 mm |
| Panel Cutout Dimensions [y] | 12.9 mm |
| Switch Function | On-Off |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.93 | |
| 10 | $ 2.63 | |||
| 100 | $ 2.25 | |||
| 1000 | $ 1.89 | |||
Description
General part information
CWSA11AA Series
Rocker Switch SPST 6A (AC) 250 V Panel Mount, Snap-In
