346-043-559-658
ActiveEDAC Inc.

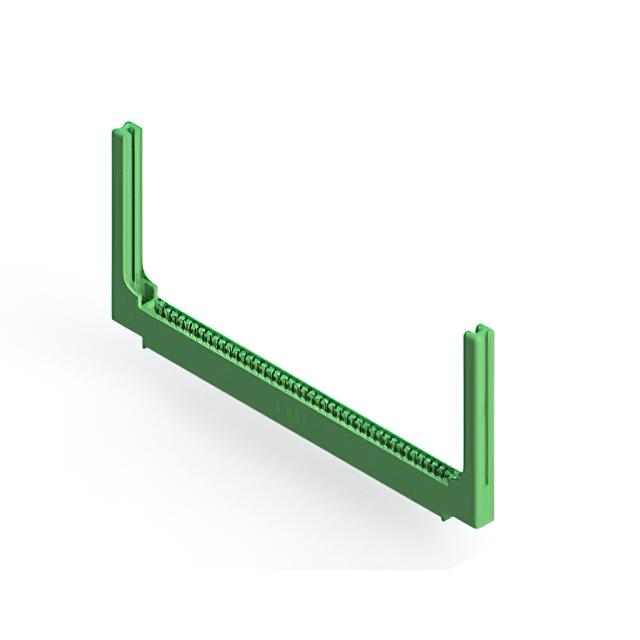

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 43 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
Deep-Dive with AI
Search across all available documentation for this part.
346-043-559-658
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 43 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-043-559-658 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 43 |
| Number of Positions/Bay/Row [custom] | 43 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Wire Wrap, Solder |
| Termination Rows | 1 |
346-043 Series
| Part | Pitch [x] | Pitch [x] | Flange Feature | Read Out | Gender | Contact Type | Termination Rows | Card Type | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Features | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Number of Positions/Bay/Row [custom] | Number of Rows | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Number of Positions | Color | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.125 in | 3.18 mm | 4-40 Threaded Insert Top Mount Opening | Single | Female | Cantilever | 1 | Non Specified - Single Edge | Gold | -40 °C | 105 ░C | Polyester Thermoplastic | Card Guides | 10 Áin | 0.25 Ám | Through Hole | 43 | 1 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 43 | Green | ||||
EDAC Inc. | 0.125 in | 3.18 mm | 4-40 Threaded Insert Top Mount Opening | Single | Female | Cantilever | 1 | Non Specified - Single Edge | Gold | -40 °C | 105 ░C | Polyester Thermoplastic | Card Guides | 10 Áin | 0.25 Ám | Through Hole Right Angle | 43 | 1 | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 43 | Green | ||||
EDAC Inc. | 0.125 in | 3.18 mm | 4-40 Threaded Insert Top Mount Opening | Single | Female | Cantilever | 1 | Non Specified - Single Edge | Gold | -40 °C | 105 ░C | Polyester Thermoplastic | Card Guides | 10 Áin | 0.25 Ám | Through Hole | 43 | 1 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 43 | Green | ||||
EDAC Inc. | 0.125 in | 3.18 mm | Flush Mount Top Opening Unthreaded | Single | Female | Cantilever | 1 | Non Specified - Single Edge | Gold | -40 °C | 105 ░C | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Through Hole Right Angle | 43 | 1 | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 43 | Green | 3.96 mm | 0.156 in | |||
EDAC Inc. | 0.125 in | 3.18 mm | Single | Female | Cantilever | 1 | Non Specified - Single Edge | Gold | -40 °C | 105 ░C | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Through Hole | 43 | 1 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 43 | Green | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 0.125 in | 3.18 mm | Flush Mount M3 Threaded Insert Top Opening | Single | Female | Cantilever | 1 | Non Specified - Single Edge | Gold | -40 °C | 105 ░C | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Through Hole | 43 | 1 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 43 | Green | |||||
EDAC Inc. | 0.125 in | 3.18 mm | 4-40 Flush Mount Threaded Insert Top Opening | Single | Female | Cantilever | 1 | Non Specified - Single Edge | Gold | -40 °C | 105 ░C | Polyester Thermoplastic | Card Guides | 10 Áin | 0.25 Ám | Through Hole | 43 | 1 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 43 | Green | ||||
EDAC Inc. | 0.125 in | 3.18 mm | 4-40 Threaded Insert Top Mount Opening | Single | Female | Cantilever | 1 | Non Specified - Single Edge | Gold | -40 °C | 105 ░C | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Through Hole | 43 | 1 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 43 | Green | |||||
EDAC Inc. | 0.125 in | 3.18 mm | M3 Threaded Insert Top Mount Opening | Single | Female | Cantilever | 1 | Non Specified - Single Edge | Gold | -40 °C | 105 ░C | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Through Hole | 43 | 1 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 43 | Green | |||||
EDAC Inc. | 0.125 in | 3.18 mm | 4-40 Flush Mount Threaded Insert Top Opening | Single | Female | Cantilever | 1 | Non Specified - Single Edge | Gold | -40 °C | 105 ░C | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Through Hole | 43 | 1 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 43 | Green |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
346-043 Series
43 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
