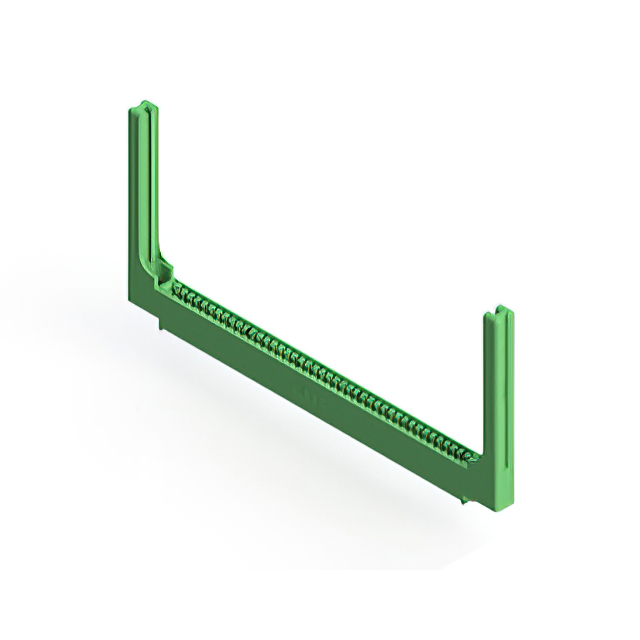

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 43 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

346-043-520-658

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 43 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Description Specifications Series Pricing CAD Documents

Description

General part information

346-043 Series

43 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green

Technical Specifications

Parameters and characteristics for this part

Specification	346-043-520-658

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	4-40, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	43
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.125 in
Read Out	Single
Termination	Solder
Termination Rows	1 rows

346-043 Series

...

Part	Contact Material	Card Type	Mounting Type	Number of Rows	Flange Feature	Number of Positions	Gender	Contact Finish	Contact Type	Termination	Card Thickness (Min)	Card Thickness (Max)	Contact Finish Thickness	Read Out	Features	Pitch	Color	Operating Temperature (Min)	Operating Temperature (Max)	Material - Insulation	Termination Rows	Flange Feature Diameter
EDAC Inc. 346-043-521-678	Copper Alloy	Non Specified Single Edge	Through Hole	1	4-40 Threaded Insert Top Mount Opening	43	Female	Gold	Cantilever	Solder	0.054 in	0.07 in	10 Ąin	Single	Card Guides	0.125 in	Green	-40 °C	105 °C	Polyester Thermoplastic	1 rows
EDAC Inc. 346-043-559-658	Copper Alloy	Non Specified Single Edge	Right Angle Through Hole	1	4-40 Threaded Insert Top Mount Opening	43	Female	Gold	Cantilever	Solder Wire Wrap	0.054 in	0.07 in	10 Ąin	Single	Card Guides	0.125 in	Green	-40 °C	105 °C	Polyester Thermoplastic	1 rows
EDAC Inc. 346-043-558-158	Copper Alloy	Non Specified Single Edge	Right Angle Through Hole	1	4-40 Flush Mount Threaded Insert Top Opening	43	Female	Gold	Cantilever	Solder Wire Wrap	0.054 in	0.07 in	10 Ąin	Single	Card Guides	0.125 in	Green	-40 °C	105 °C	Polyester Thermoplastic	1 rows
EDAC Inc. 346-043-520-608	Copper Alloy	Non Specified Single Edge	Through Hole	1	4-40 Threaded Insert Top Mount Opening	43	Female	Gold	Cantilever	Solder	0.054 in	0.07 in	10 Ąin	Single		0.125 in	Green	-40 °C	105 °C	Polyester Thermoplastic	1 rows
EDAC Inc. 346-043-522-678	Copper Alloy	Non Specified Single Edge	Through Hole	1	4-40 Threaded Insert Top Mount Opening	43	Female	Gold	Cantilever	Solder	0.054 in	0.07 in	10 Ąin	Single	Card Guides	0.125 in	Green	-40 °C	105 °C	Polyester Thermoplastic	1 rows
EDAC Inc. 346-043-520-658	Copper Alloy	Non Specified Single Edge	Through Hole	1	4-40 Threaded Insert Top Mount Opening	43	Female	Gold	Cantilever	Solder	0.054 in	0.07 in	10 Ąin	Single	Card Guides	0.125 in	Green	-40 °C	105 °C	Polyester Thermoplastic	1 rows
EDAC Inc. 346-043-559-104	Copper Alloy	Non Specified Single Edge	Right Angle Through Hole	1	Flush Mount Top Opening Unthreaded	43	Female	Gold	Cantilever	Solder Wire Wrap	0.054 in	0.07 in	10 Ąin	Single		0.125 in	Green	-40 °C	105 °C	Polyester Thermoplastic	1 rows	0.156 in
EDAC Inc. 346-043-500-108	Copper Alloy	Non Specified Single Edge	Through Hole	1	4-40 Flush Mount Threaded Insert Top Opening	43	Female	Gold	Cantilever	Solder Eyelet(s)	0.054 in	0.07 in	10 Ąin	Single		0.125 in	Green	-40 °C	105 °C	Polyester Thermoplastic	1 rows
EDAC Inc. 346-043-541-602	Copper Alloy	Non Specified Single Edge	Through Hole	1	Top Mount Opening Unthreaded	43	Female	Gold	Cantilever	Wire Wrap	0.054 in	0.07 in	10 Ąin	Single		0.125 in	Green	-40 °C	105 °C	Polyester Thermoplastic	1 rows	0.128 in
EDAC Inc. 346-043-521-102	Copper Alloy	Non Specified Single Edge	Through Hole	1	Flush Mount Top Opening Unthreaded	43	Female	Gold	Cantilever	Solder	0.054 in	0.07 in	10 Ąin	Single		0.125 in	Green	-40 °C	105 °C	Polyester Thermoplastic	1 rows	0.128 in
